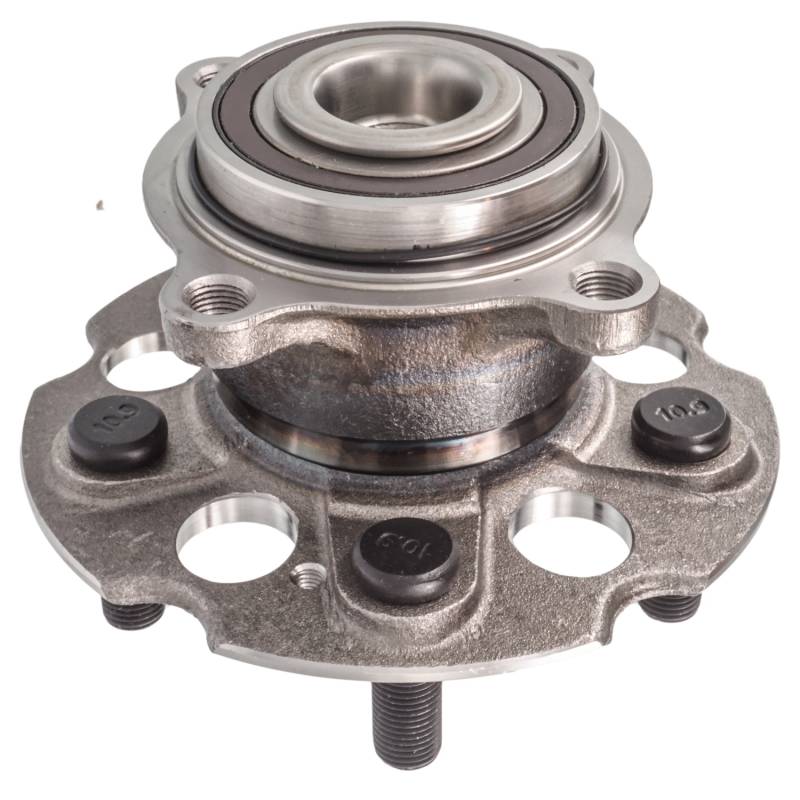

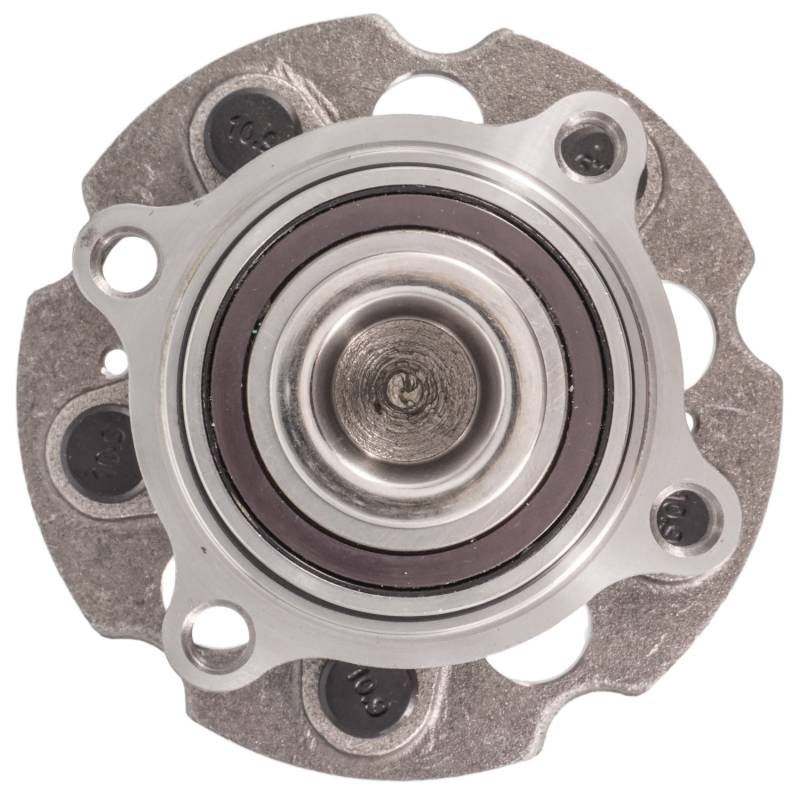

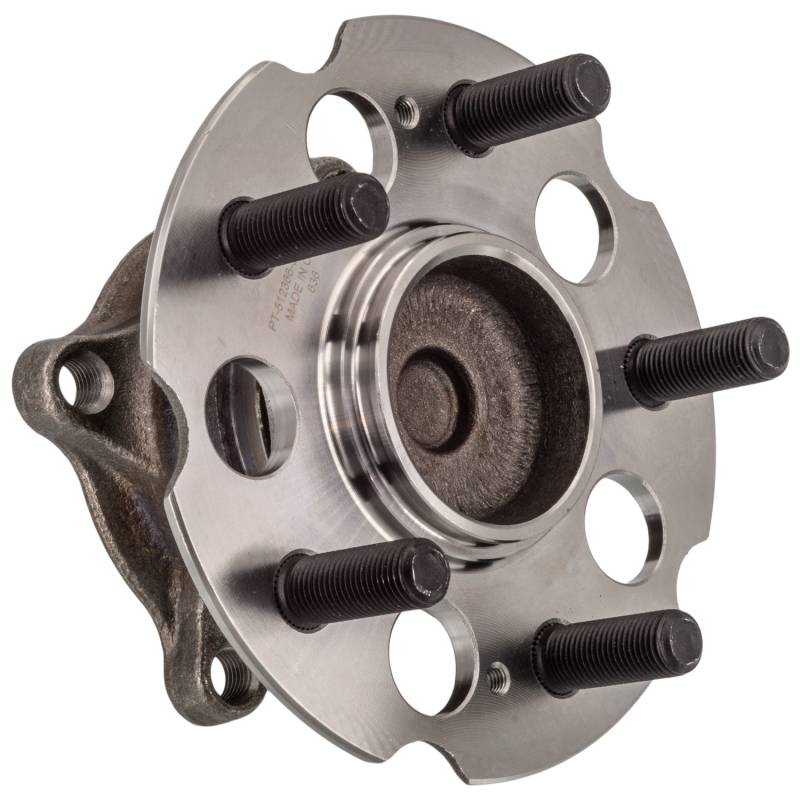

New Hub Assembly Compatible With Honda Odyssey 3.5L 2011 2012 2013 2014 2015 2016 2017 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

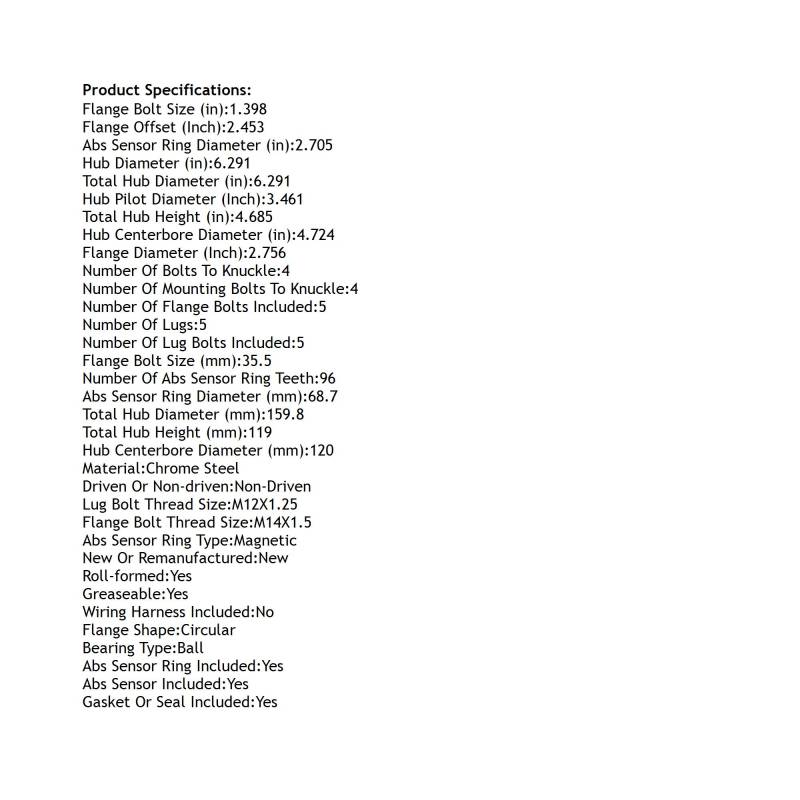

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.705
ABS SENSOR RING DIAMETER (MM): 68.7
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.398
FLANGE BOLT SIZE (MM): 35.5
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.756
FLANGE OFFSET (INCH): 2.453
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.291
HUB PILOT DIAMETER (INCH): 3.461
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 6.291
TOTAL HUB DIAMETER (MM): 159.8
TOTAL HUB HEIGHT (IN): 4.685
TOTAL HUB HEIGHT (MM): 119
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-480990
BCA: WE60447
BECK/ARNLEY: 051-6311
CENTRIC PARTS: 40640024
MEVOTECH: H512366
MOOG HUB ASSEMBLIES: 512366

APPLICATIONS:
HONDA ODYSSEY (2011-2017)
