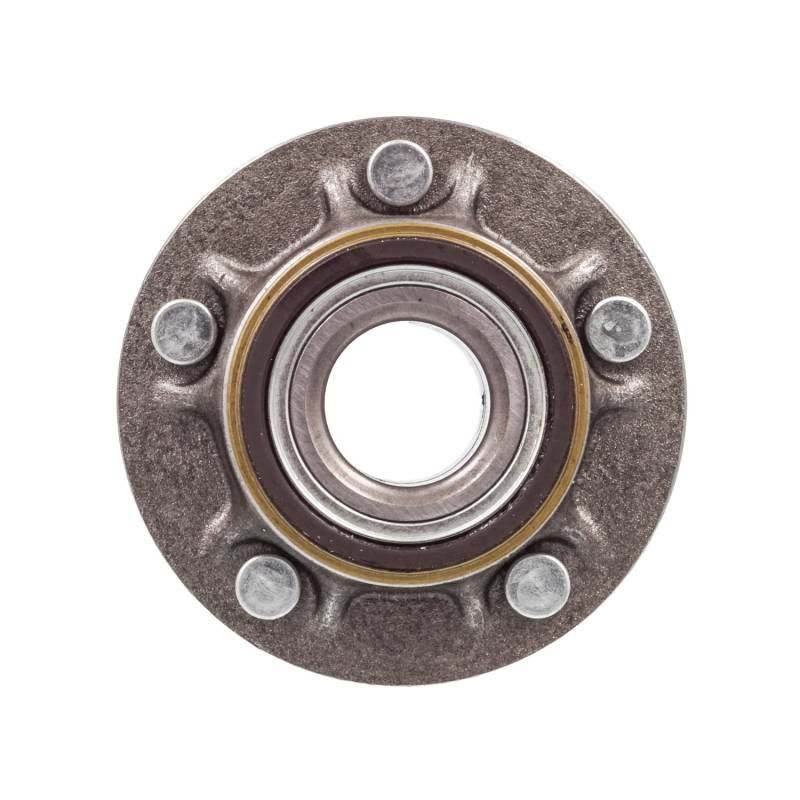

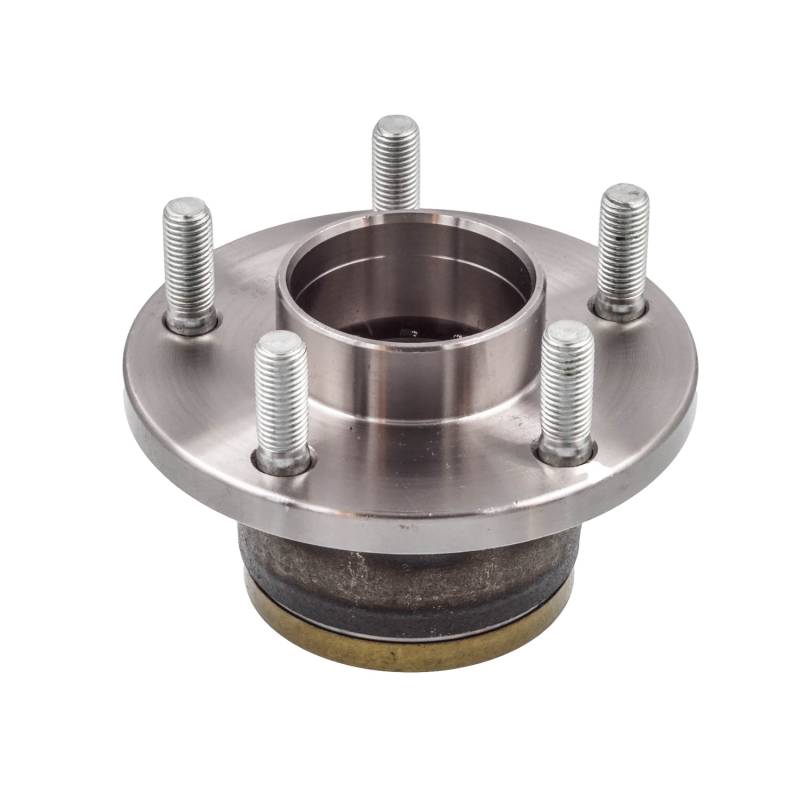

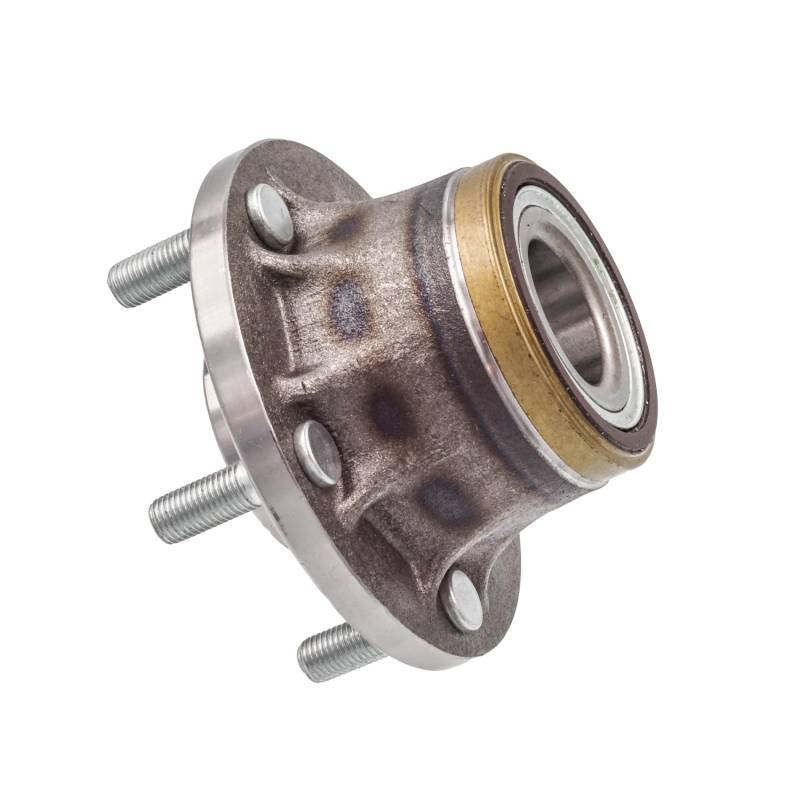

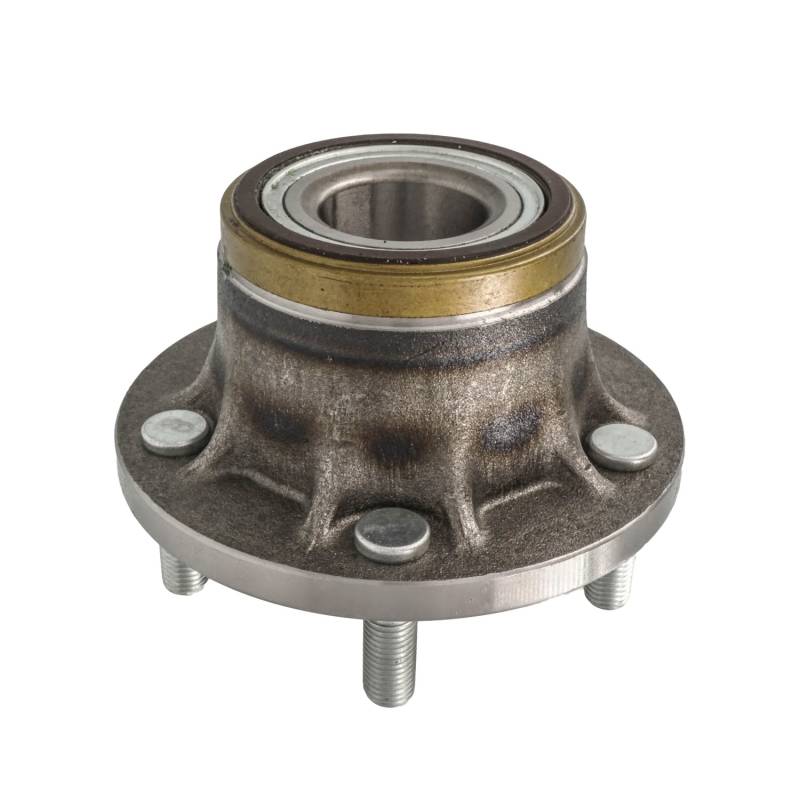

New Hub Assembly Compatible With Ford Transit Connect 2.0L 2010 2011 2012 2013 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

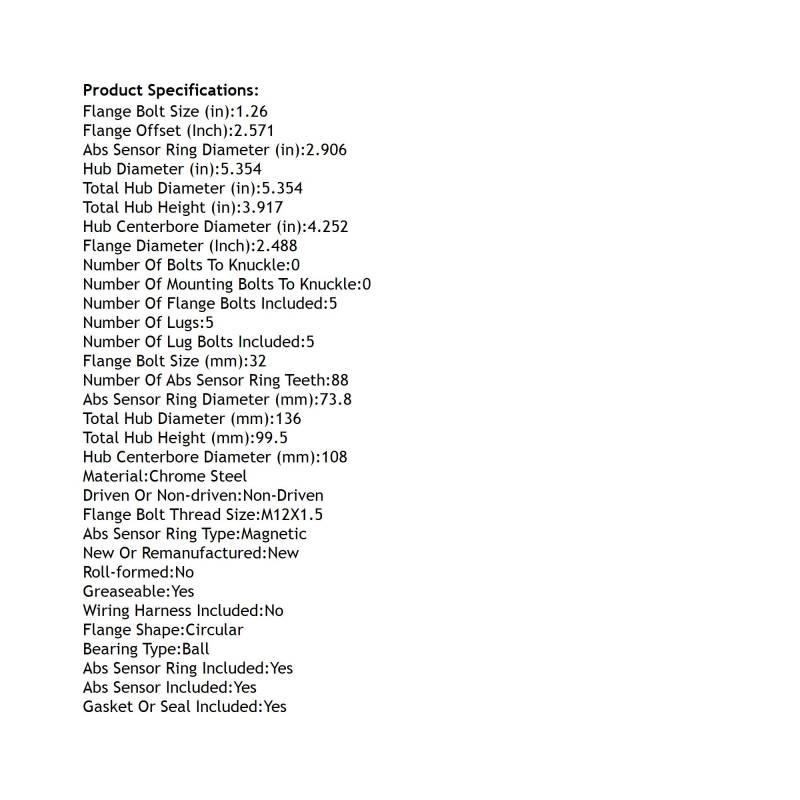

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.906
ABS SENSOR RING DIAMETER (MM): 73.8
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.26
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.488
FLANGE OFFSET (INCH): 2.571
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.354
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 88
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.354
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 3.917
TOTAL HUB HEIGHT (MM): 99.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-420413
BCA: WE61772
CENTRIC PARTS: 40665000
FAG US: 101786
FORD: 7T1Z 1104 B
GSP: 113439
MEVOTECH: H512439
MOOG HUB ASSEMBLIES: 512439
MOTORCRAFT: HUB141 PT512439
NAPA: PWKH6522

APPLICATIONS:
FORD TRANSIT CONNECT (2010-2013)
