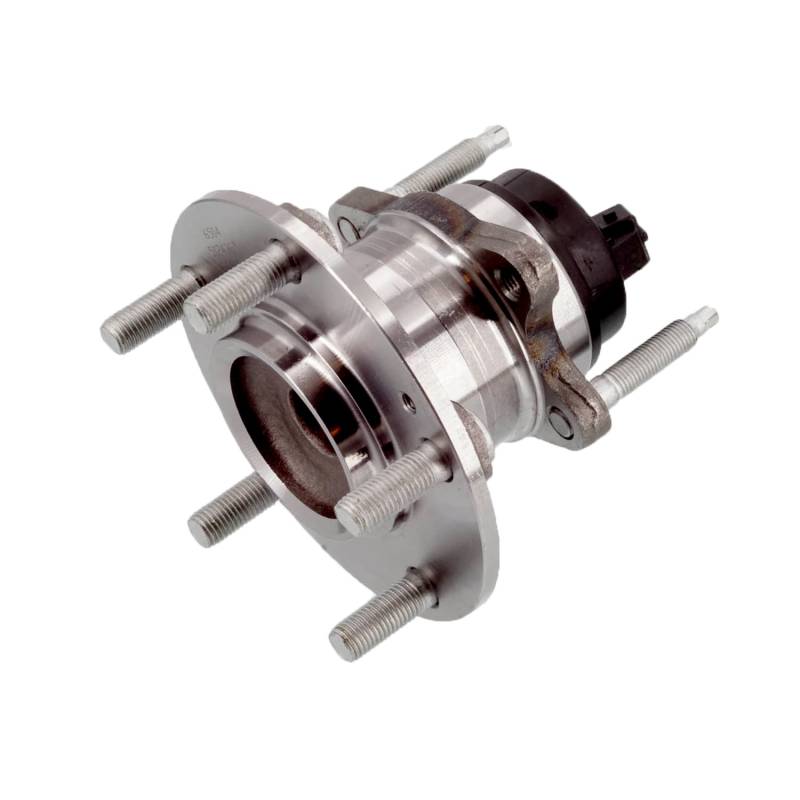

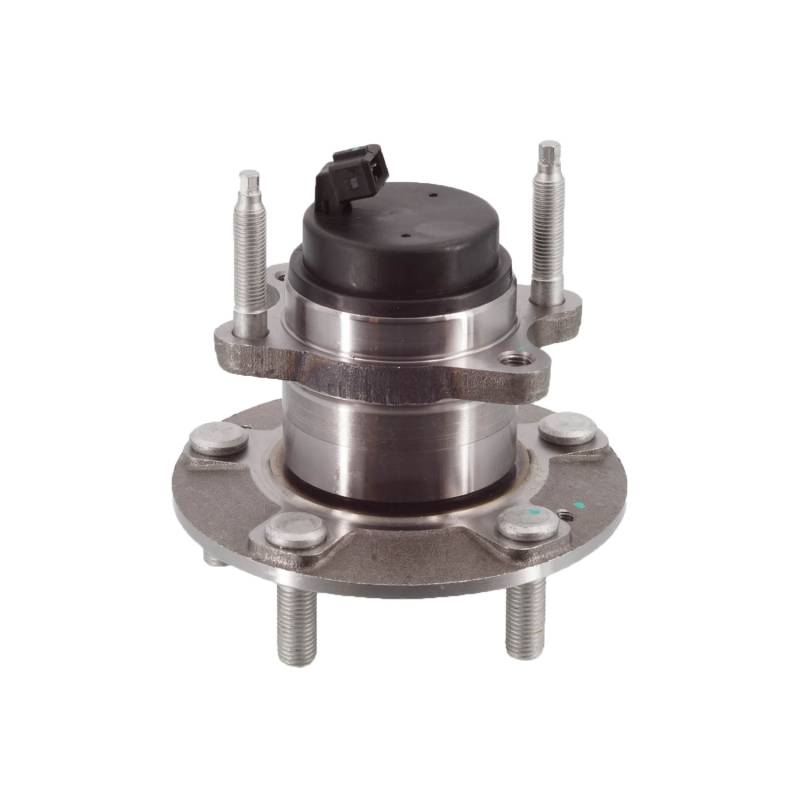

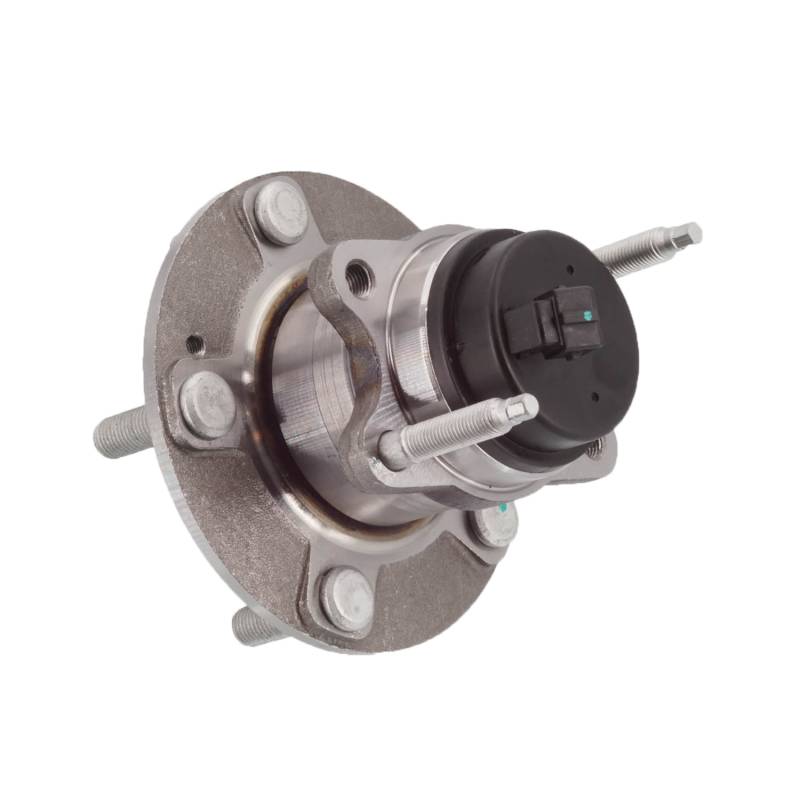

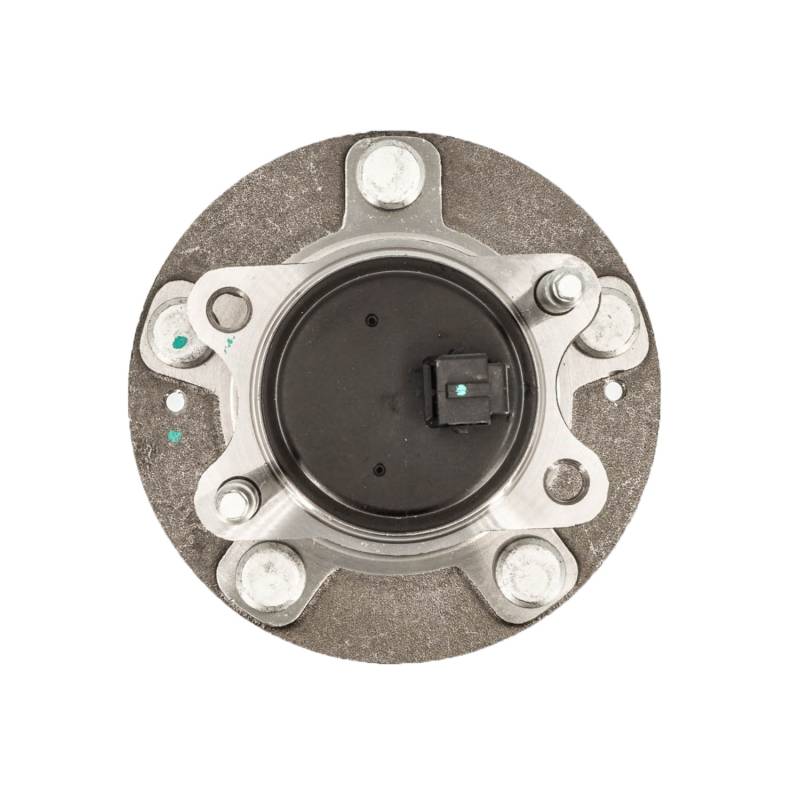

New Hub Assembly Compatible With Kia Forte Koup Forte Forte5 2.0L 2.4L 2010 2011 2012 2013 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.2
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.99
FLANGE OFFSET (INCH): 2.32
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.47
HUB PILOT DIAMETER (INCH): 2.72
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 2
NUMBER OF FLANGE BOLTS INCLUDED: 2
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 2
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.47
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 5.61
TOTAL HUB HEIGHT (MM): 142
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-424534
BCA: WE60977
BECK/ARNLEY: 051-6377
CENTRIC PARTS: 40751004
FAG US: 102365
GSP: 753436
MEVOTECH: H512436
MOOG HUB ASSEMBLIES: 512436
NAPA: PBR930835

APPLICATIONS:
KIA FORTE KOUP (2010-2013)
KIA FORTE (2010-2013)
KIA FORTE5 (2012-2013)
