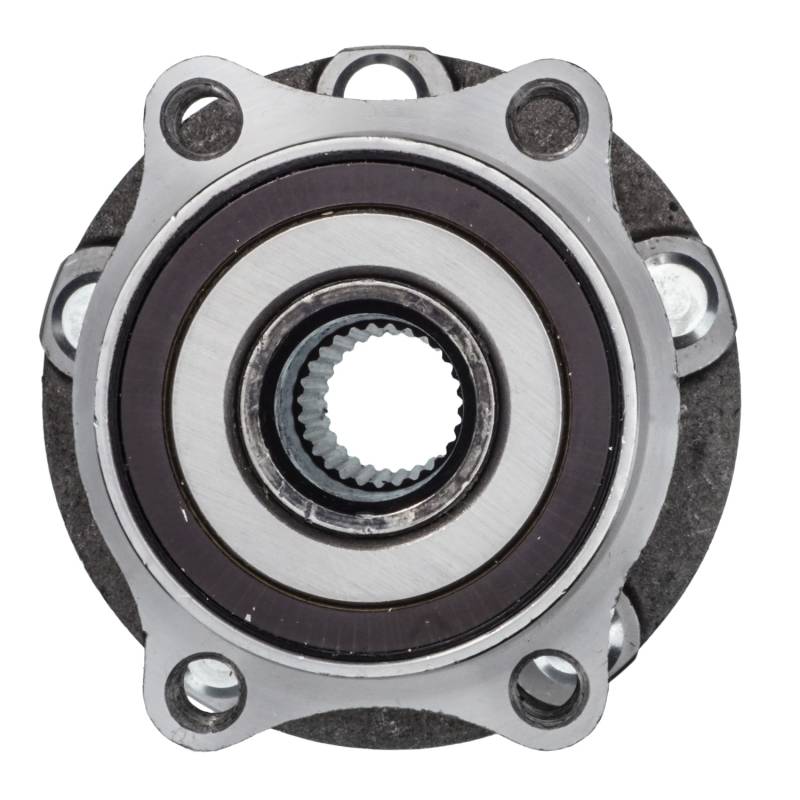

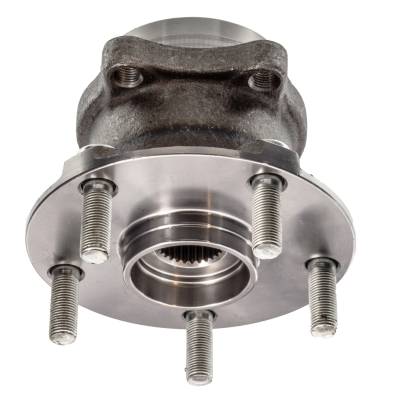

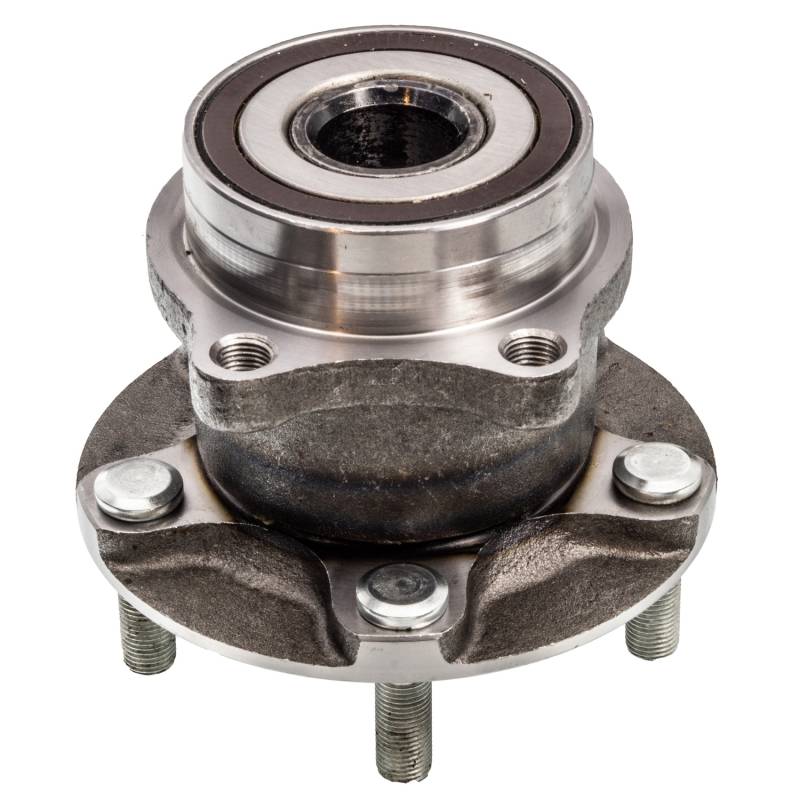

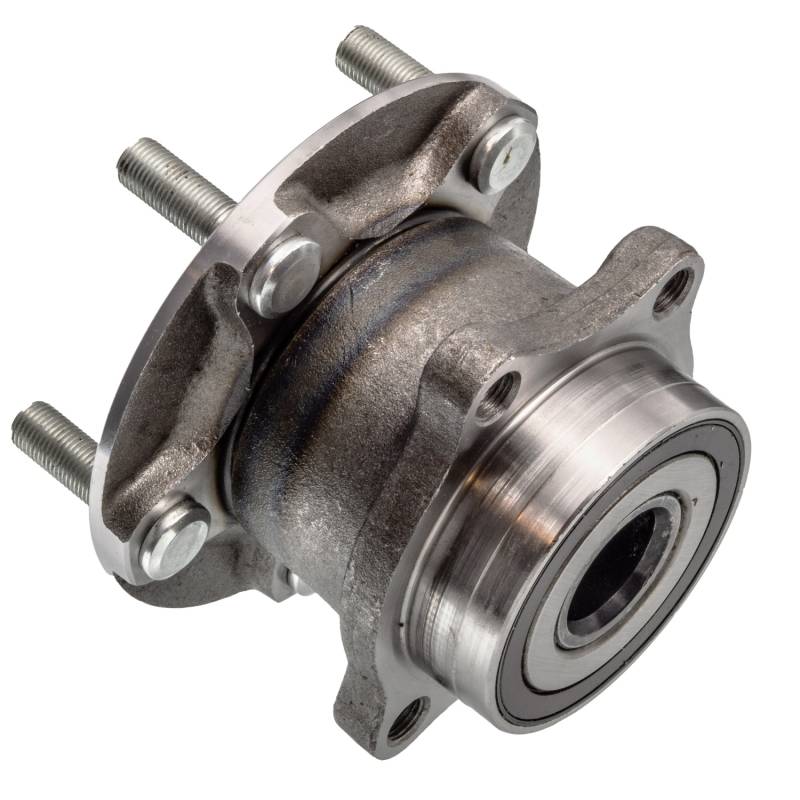

New Hub Assembly Compatible With Subaru Impreza Wrx Sti Wrx 2.5L 2008 2009 2010 2014 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.941
ABS SENSOR RING DIAMETER (MM): 74.7
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.24
FLANGE BOLT SIZE (MM): 31.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.283
FLANGE OFFSET (INCH): 2.618
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.425
HUB PILOT DIAMETER (INCH): 3.307
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.425
TOTAL HUB DIAMETER (MM): 137.8
TOTAL HUB HEIGHT (IN): 4.795
TOTAL HUB HEIGHT (MM): 121.8
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-425340
BCA: WE60529
BECK/ARNLEY: 051-6360
CENTRIC PARTS: 40147003
FAG US: 102352
GSP: 663402
MEVOTECH: H512402
MOOG HUB ASSEMBLIES: 512402
NAPA: PBR930768
ZZZN: 28473FG010 28473VA000 28473VA010

APPLICATIONS:
SUBARU IMPREZA (2008-2010)
SUBARU WRX STI (2014-2014)
SUBARU WRX (2014-2014)
