THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

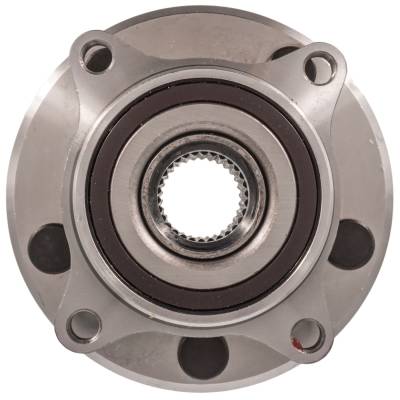

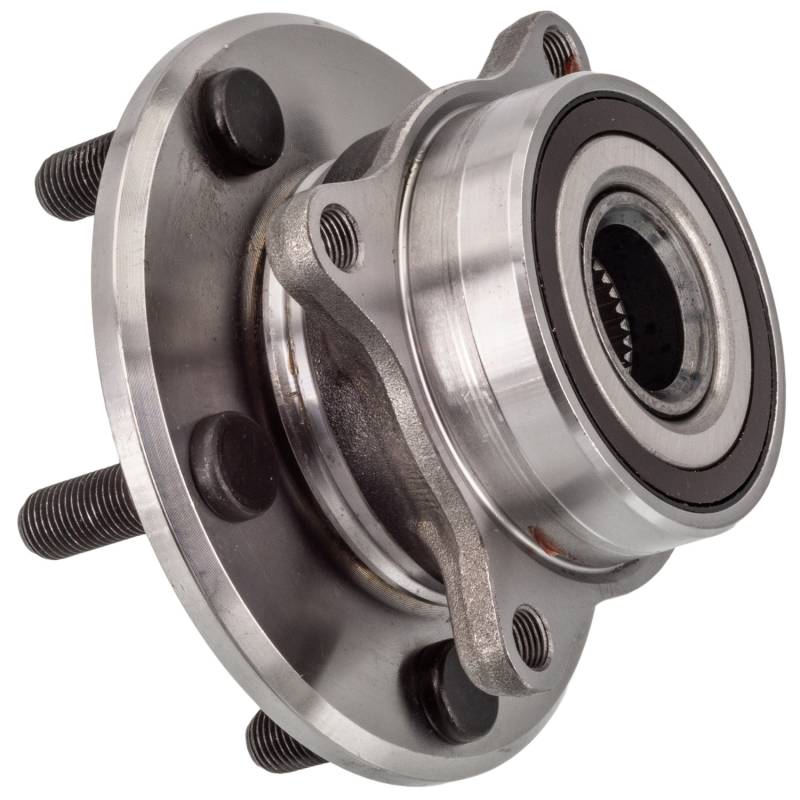

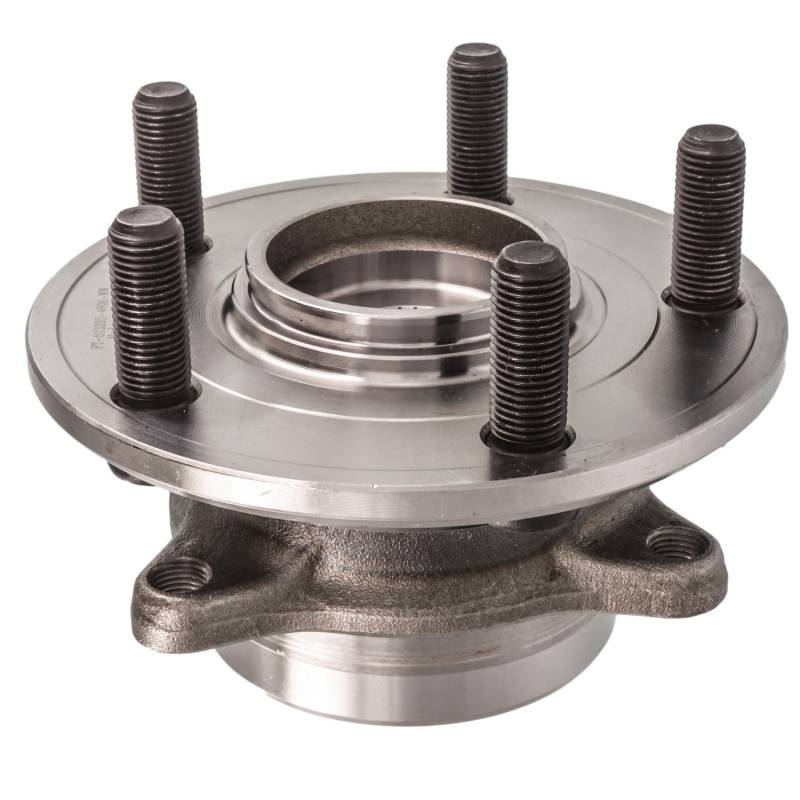

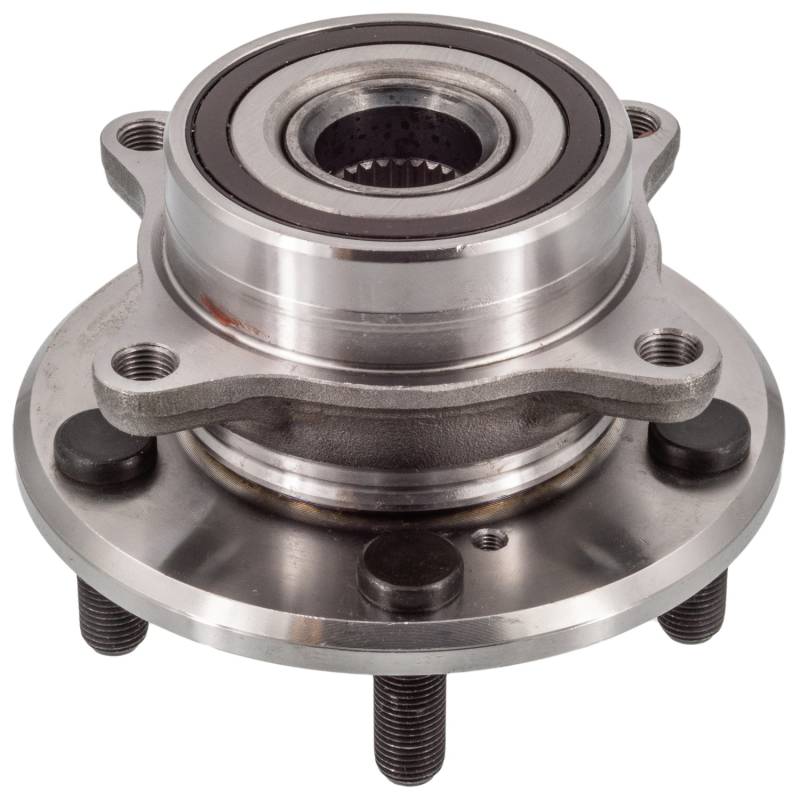

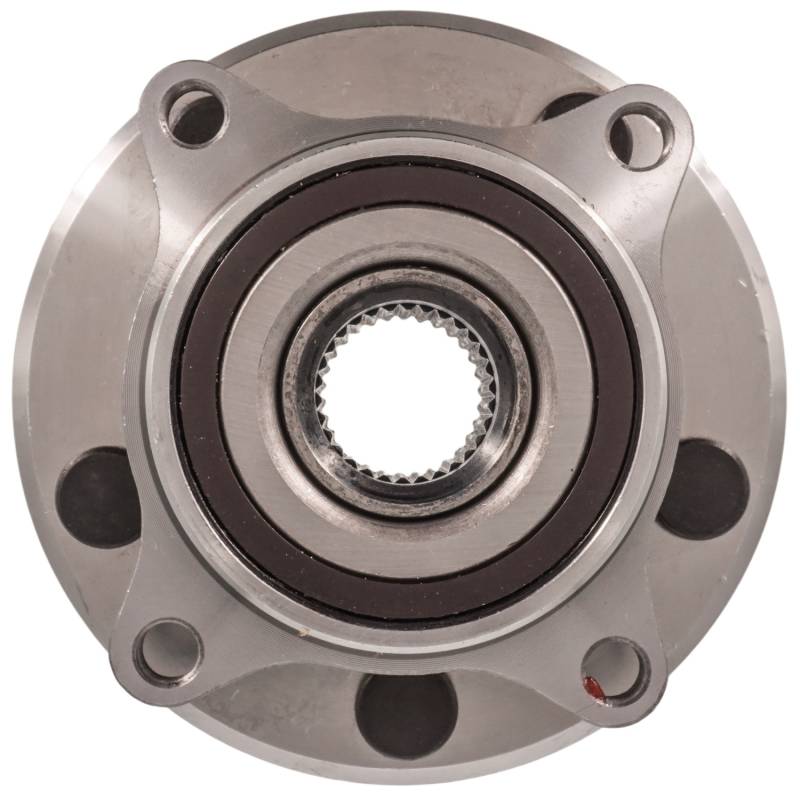

PRODUCT TYPE: HUB ASSEMBLY

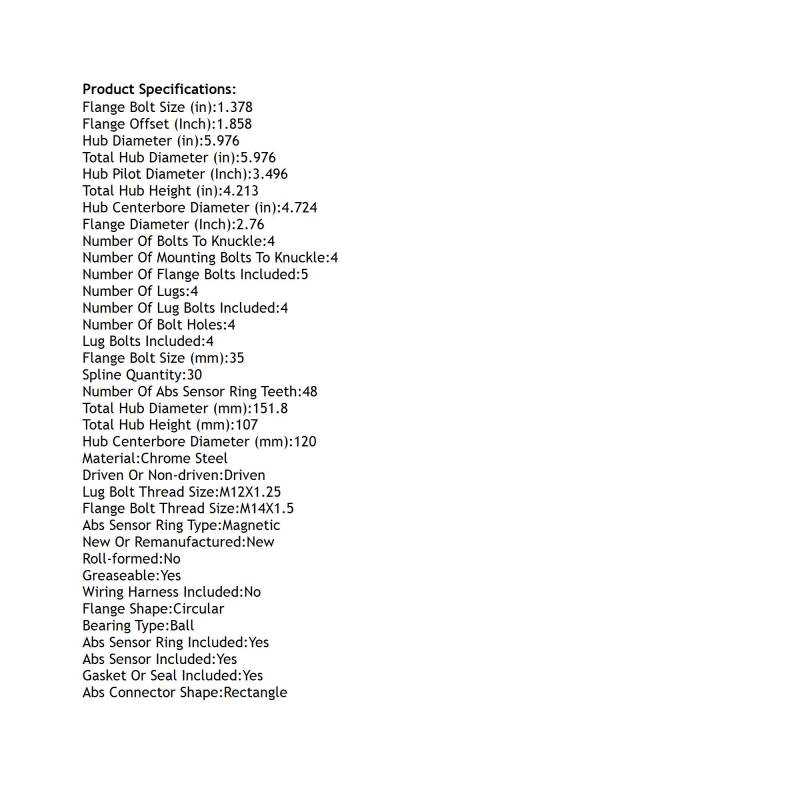

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.378
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.76
FLANGE OFFSET (INCH): 1.858
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.976
HUB PILOT DIAMETER (INCH): 3.496
LUG BOLT THREAD SIZE: M12X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.976
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 4.213
TOTAL HUB HEIGHT (MM): 107
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-480991
BCA: WE60974
BECK/ARNLEY: 051-6480
CENTRIC PARTS: 40140000
FAG US: 102310
GSP: 364293
MEVOTECH: H513293
MOOG HUB ASSEMBLIES: 513293
NAPA: PBR930844
ZZZN: 44300-TK8-A01
APPLICATIONS:
HONDA ODYSSEY (2011-2017)
