THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

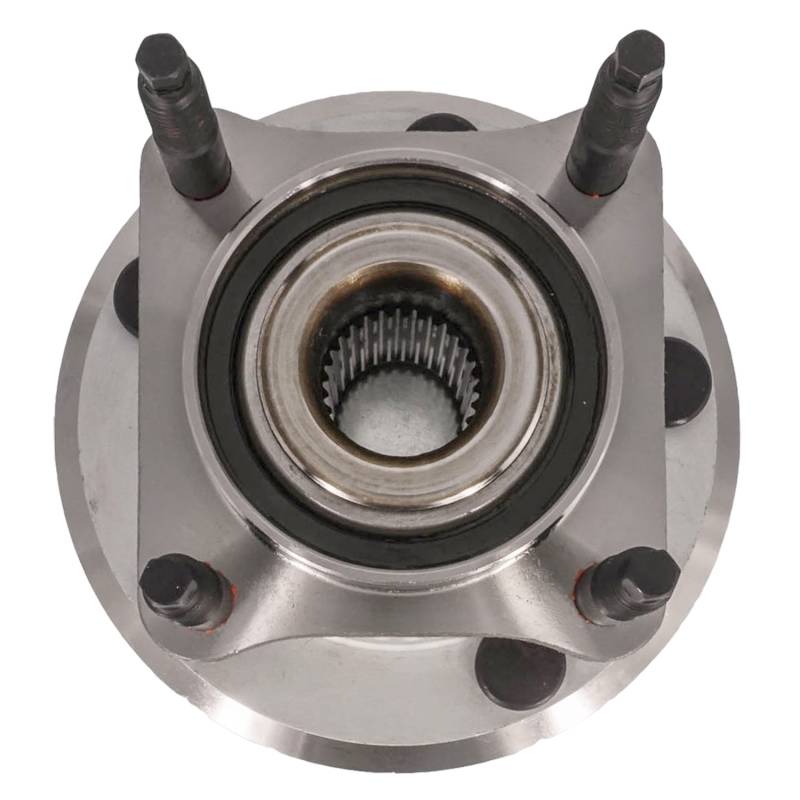

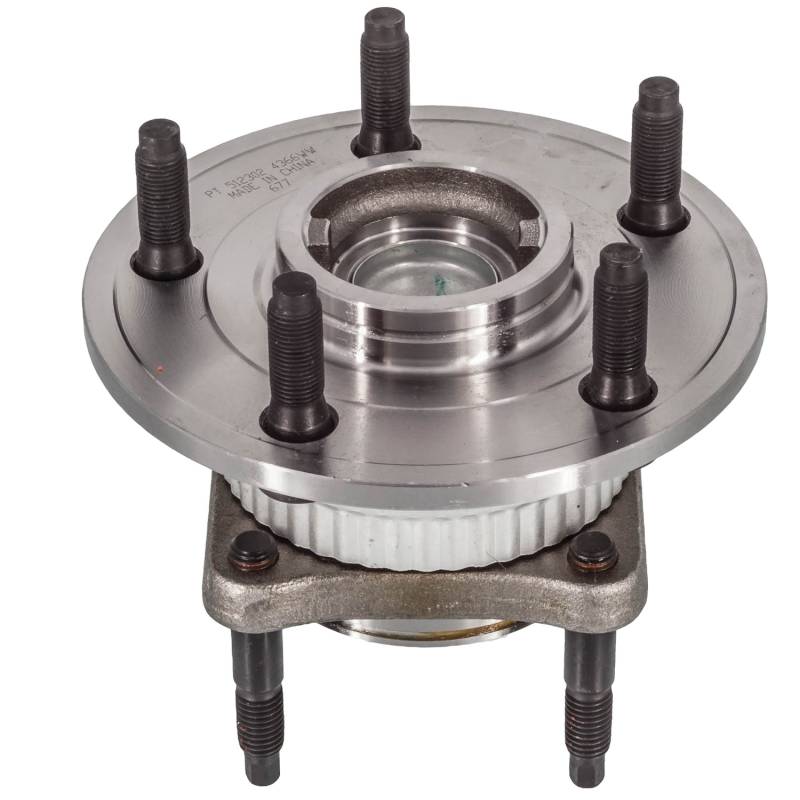

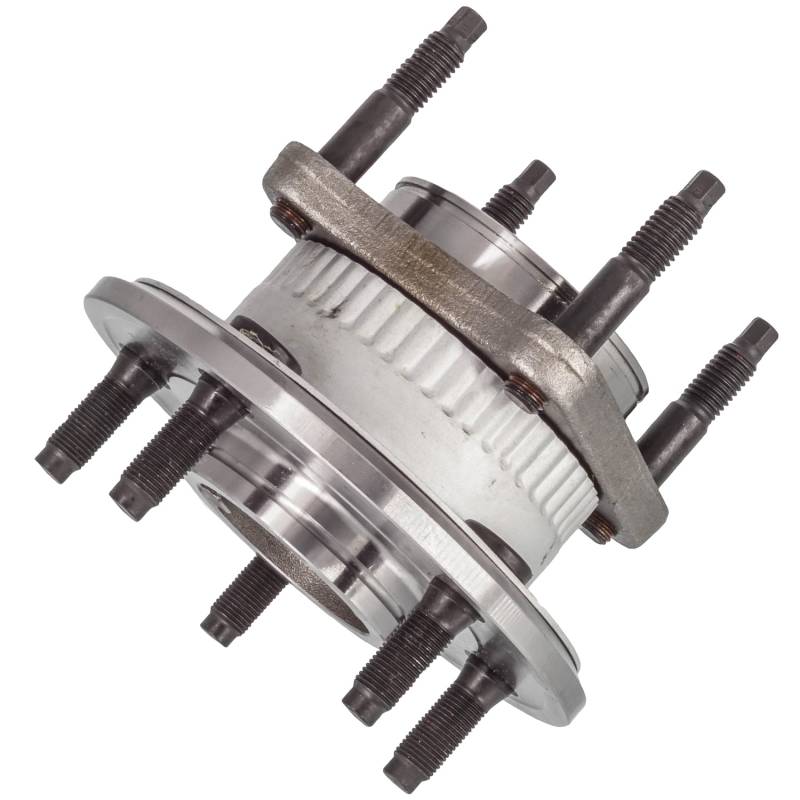

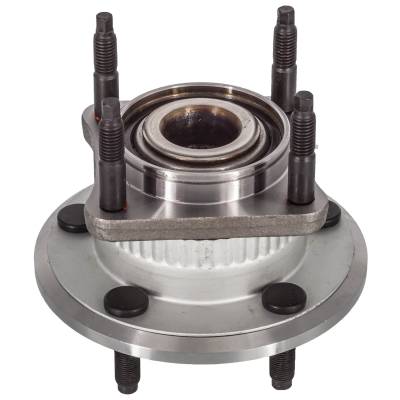

PRODUCT TYPE: HUB ASSEMBLY

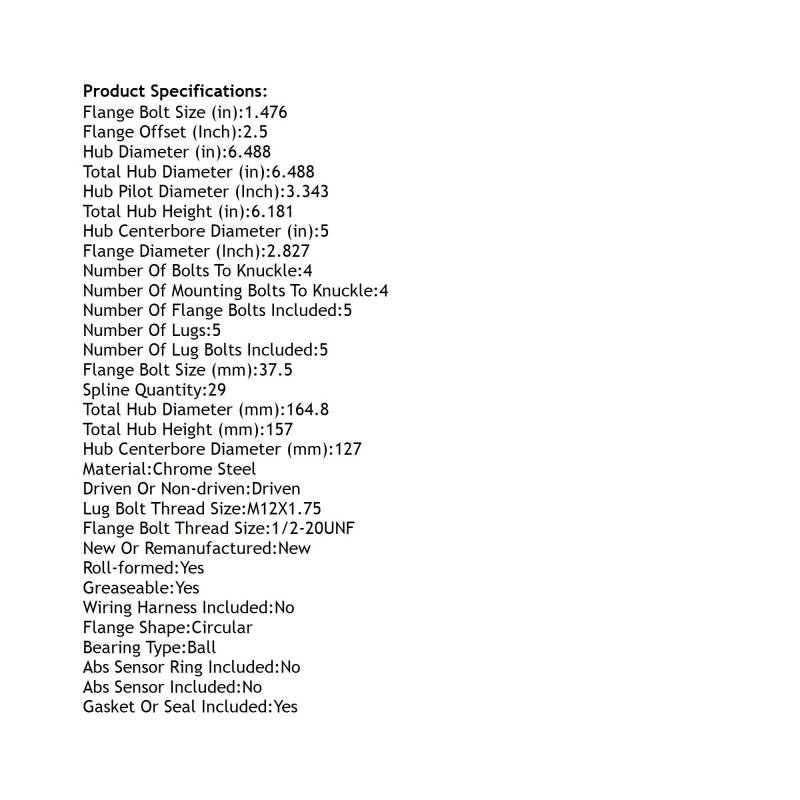

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.476
FLANGE BOLT SIZE (MM): 37.5
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 2.827
FLANGE OFFSET (INCH): 2.5
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.488
HUB PILOT DIAMETER (INCH): 3.343
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 29
TOTAL HUB DIAMETER (IN): 6.488
TOTAL HUB DIAMETER (MM): 164.8
TOTAL HUB HEIGHT (IN): 6.181
TOTAL HUB HEIGHT (MM): 157
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-246636
BCA: WE61080
CENTRIC PARTS: 40158000
FAG US: 102123
GSP: 103302
MEVOTECH: H512302
MOOG HUB ASSEMBLIES: 512302
NAPA: PBR930461
APPLICATIONS:
JEEP GRAND CHEROKEE (2005-2010)
JEEP COMMANDER (2006-2010)
