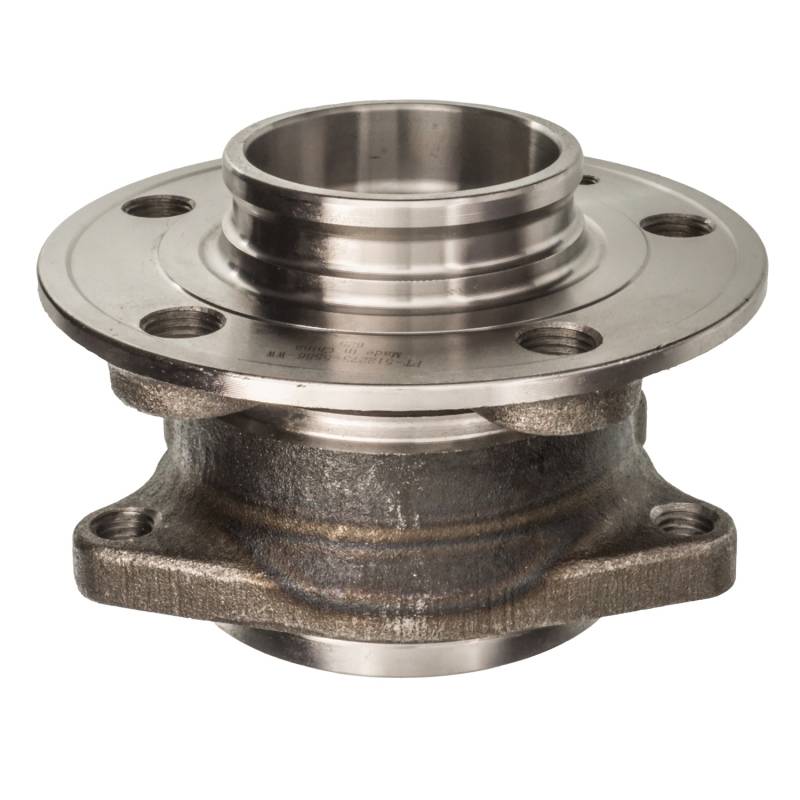

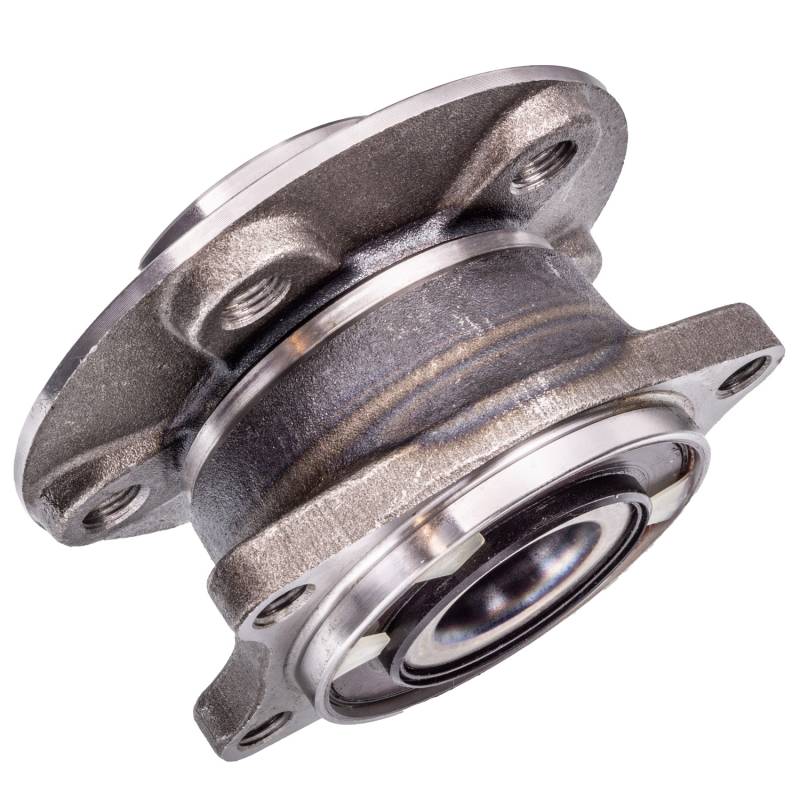

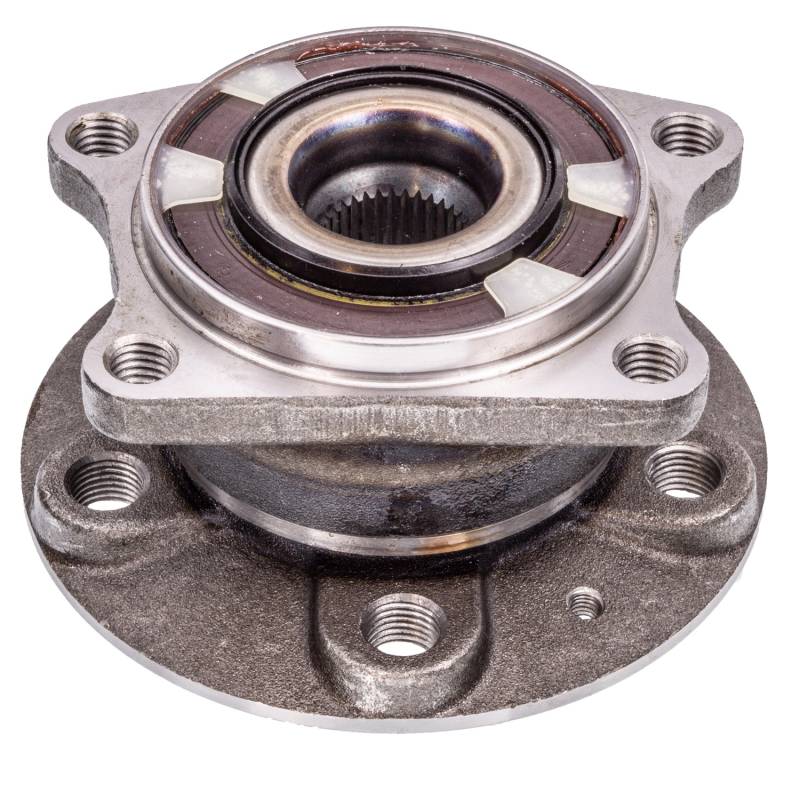

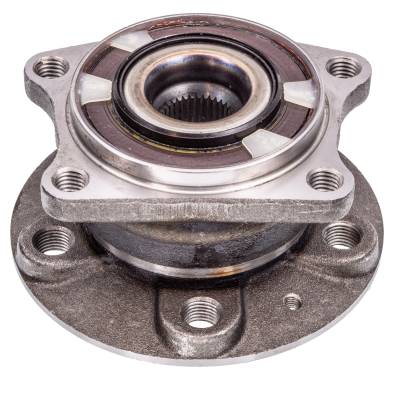

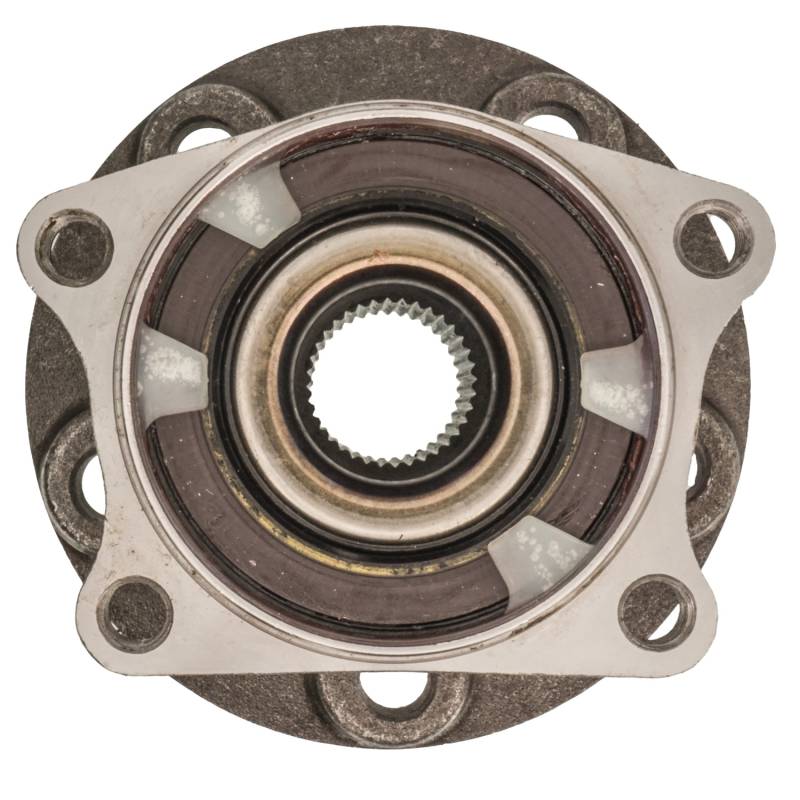

New Hub Assembly Compatible With Volvo Xc90 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

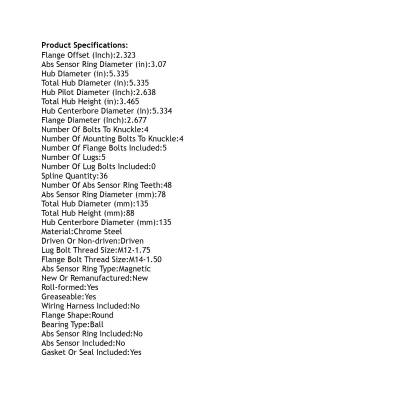

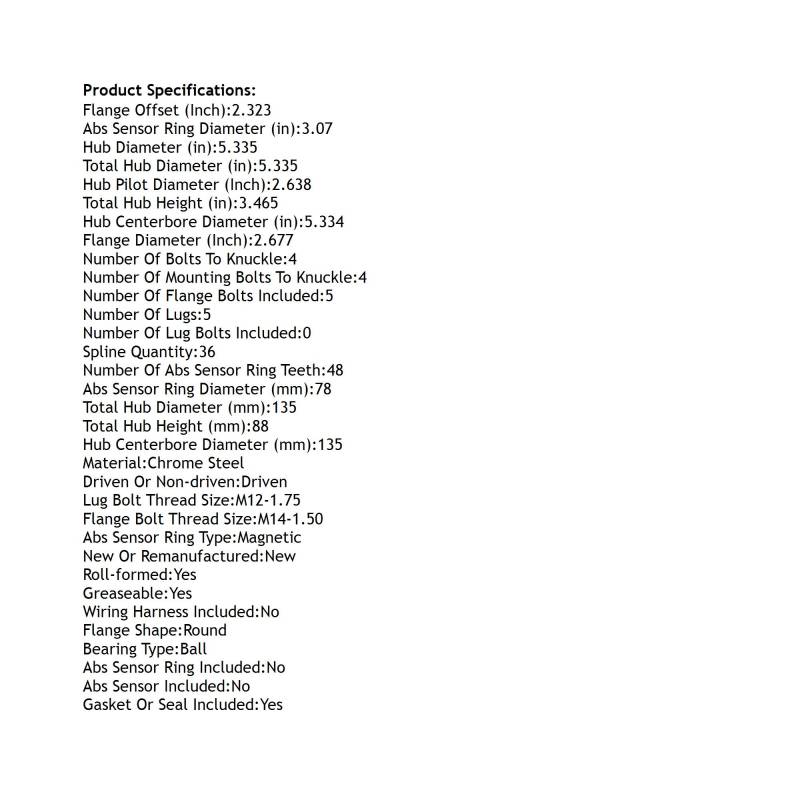

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 3.07
ABS SENSOR RING DIAMETER (MM): 78
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.677
FLANGE OFFSET (INCH): 2.323
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.334
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 5.335
HUB PILOT DIAMETER (INCH): 2.638
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 36
TOTAL HUB DIAMETER (IN): 5.335
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 3.465
TOTAL HUB HEIGHT (MM): 88
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-255769
BCA: WE61480
BECK/ARNLEY: 051-6232
CENTRIC PARTS: 40039007E
FAG US: 102145
GSP: 733273
MEVOTECH: H512273
MOOG HUB ASSEMBLIES: 512273
NAPA: PBR930505
VOLVO: 31201011

APPLICATIONS:
VOLVO XC90 (2003-2014)
