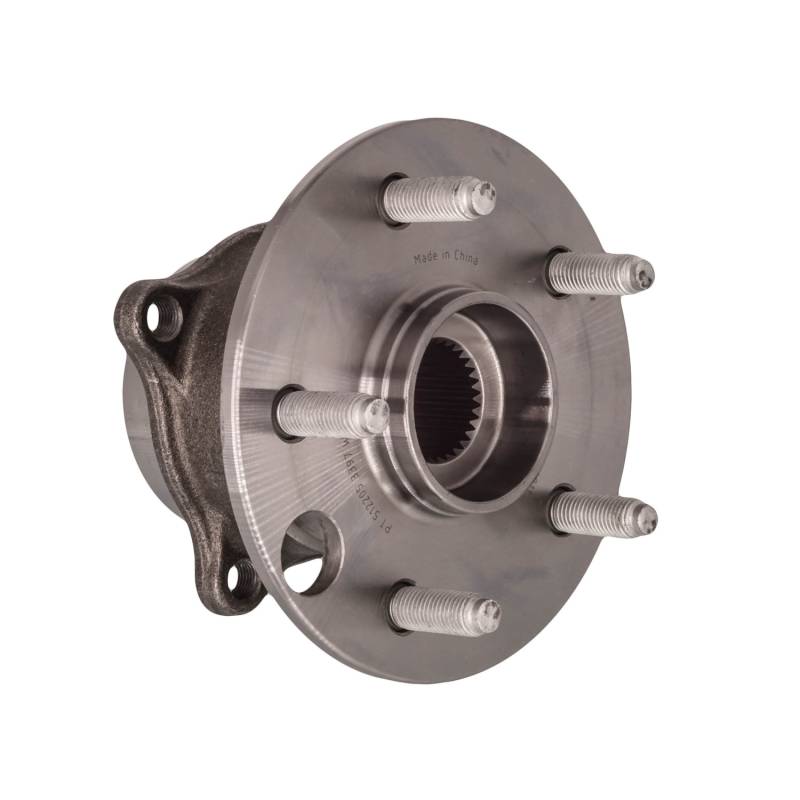

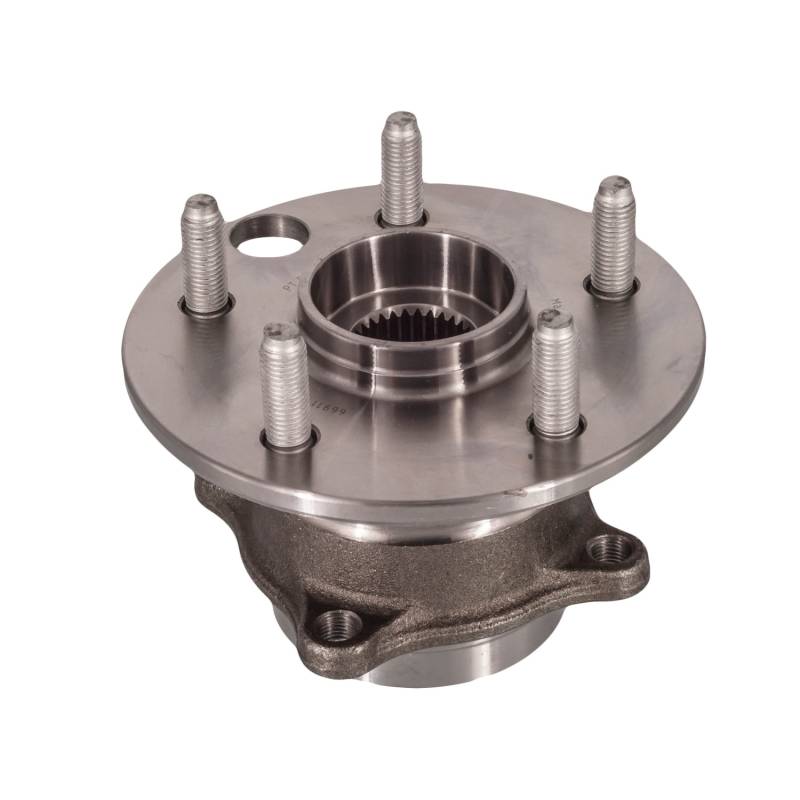

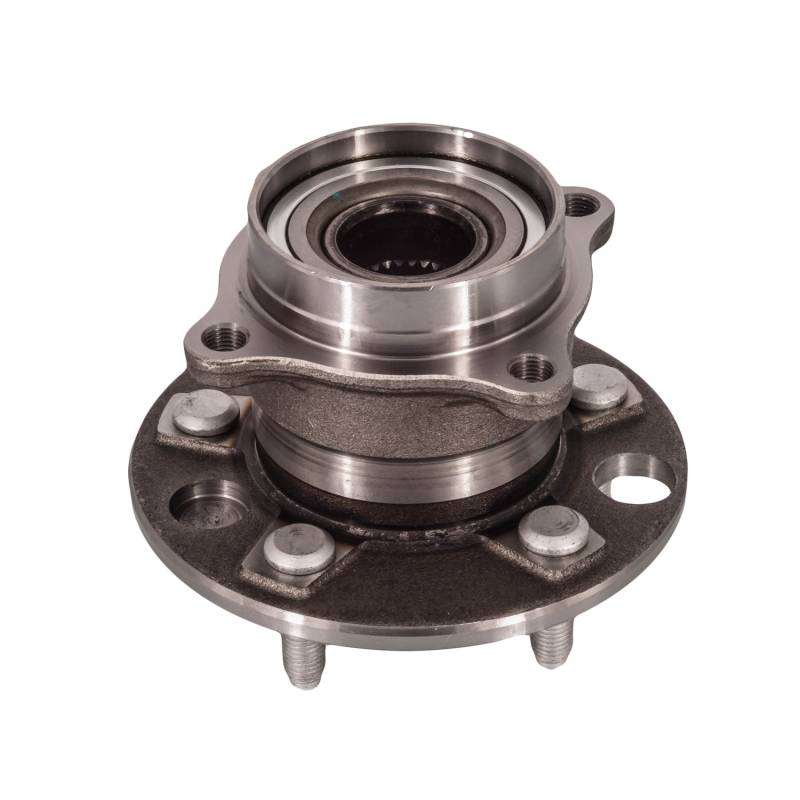

New Hub Assembly Compatible With Lexus Ls430 4.3L 2001 2002 2003 2004 2005 2006 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

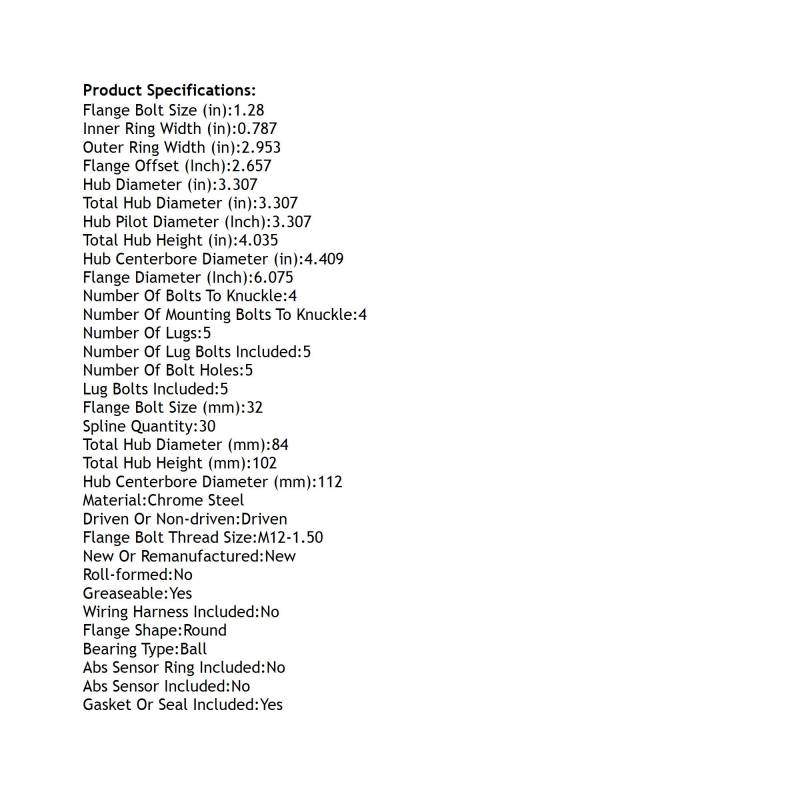

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.28
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 6.075
FLANGE OFFSET (INCH): 2.657
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.409
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 3.307
HUB PILOT DIAMETER (INCH): 3.307
INNER RING WIDTH (IN): 0.787
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
OUTER RING WIDTH (IN): 2.953
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 3.307
TOTAL HUB DIAMETER (MM): 84
TOTAL HUB HEIGHT (IN): 4.035
TOTAL HUB HEIGHT (MM): 102
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-04423
BCA: WE61081
BECK/ARNLEY: 051-6236
CENTRIC PARTS: 40044000
FAG US: 102497
GSP: 693205
MEVOTECH: H512205
MOOG HUB ASSEMBLIES: 512205
NAPA: PBR930294

APPLICATIONS:
LEXUS LS430 (2001-2006)
