THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

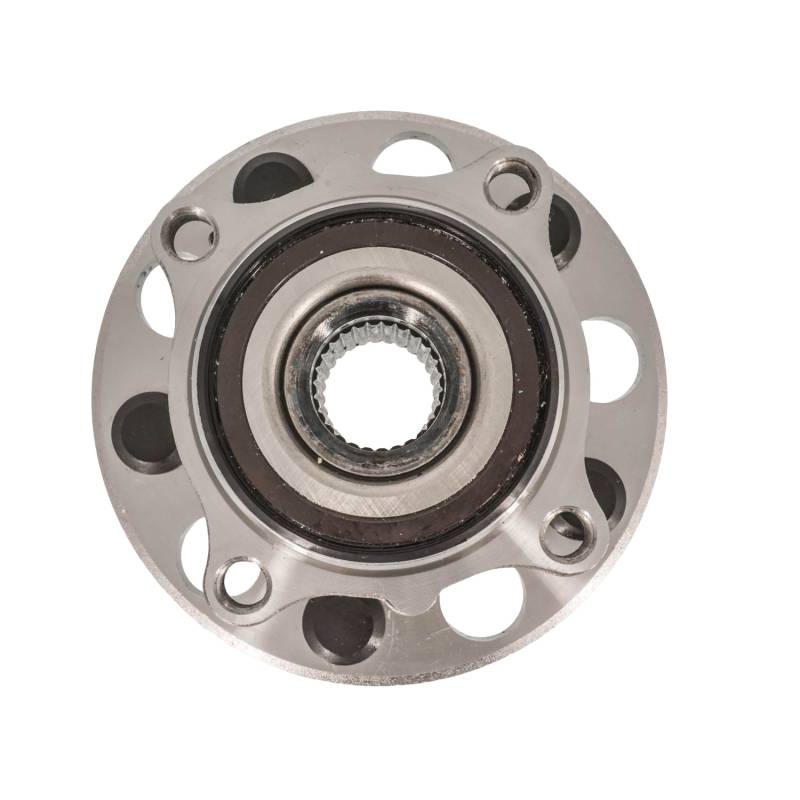

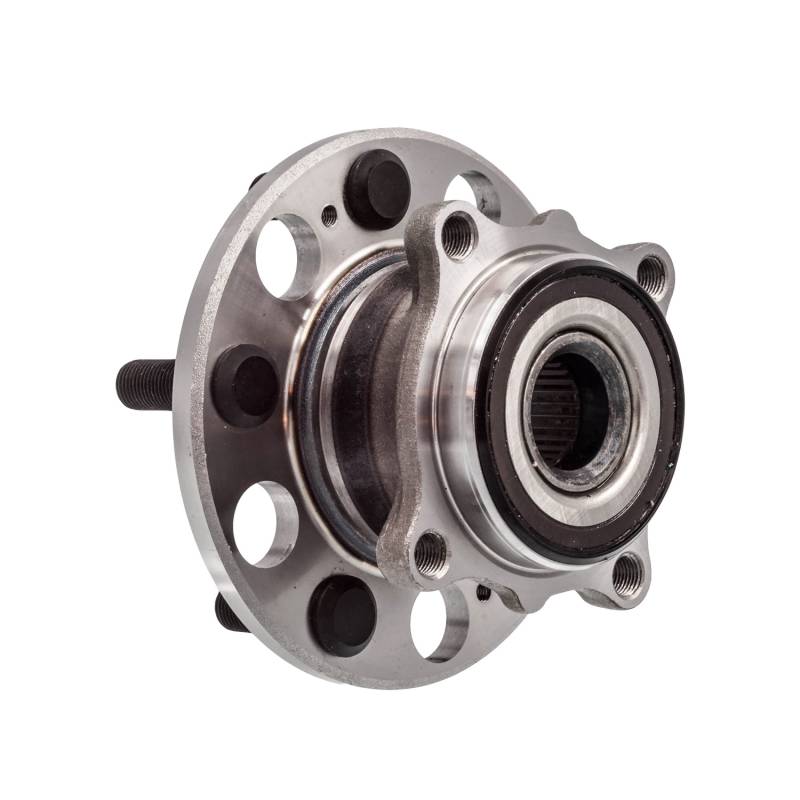

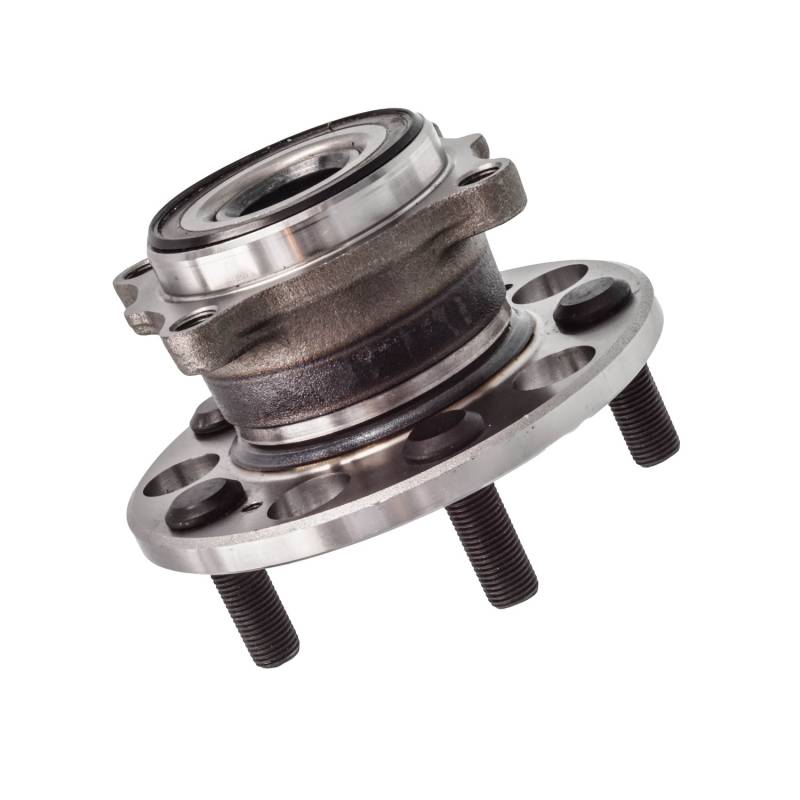

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.772
ABS SENSOR RING DIAMETER (MM): 70.4
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.398
FLANGE BOLT SIZE (MM): 35.5
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.756
FLANGE OFFSET (INCH): 2.402
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.996
HUB PILOT DIAMETER (INCH): 3.213
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.996
TOTAL HUB DIAMETER (MM): 152.3
TOTAL HUB HEIGHT (IN): 4.331
TOTAL HUB HEIGHT (MM): 110
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-246644
BCA: WE60463
BECK/ARNLEY: 051-6353
CENTRIC PARTS: 40040001
FAG US: 102525
GSP: 363321
MEVOTECH: H512321
MOOG HUB ASSEMBLIES: 512321
NAPA: PBR930606
APPLICATIONS:
ACURA RL (2005-2012)
ACURA TL (2009-2013)
