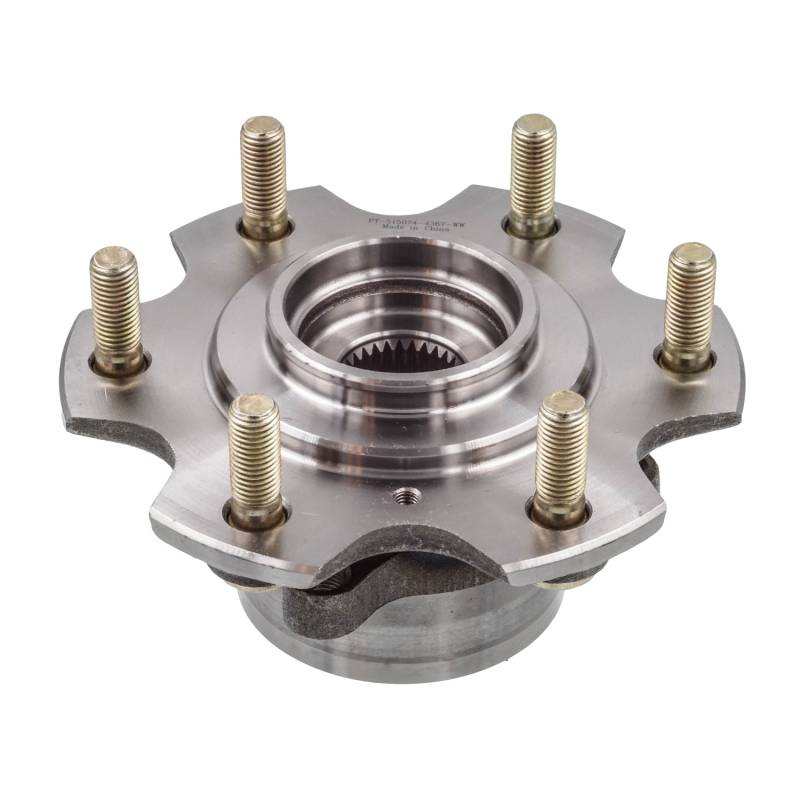

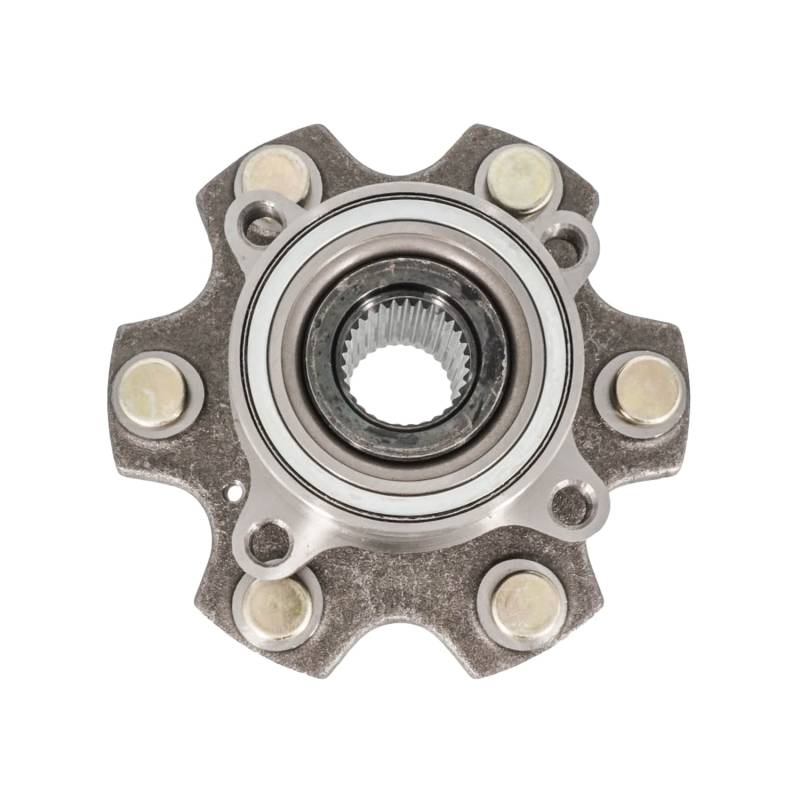

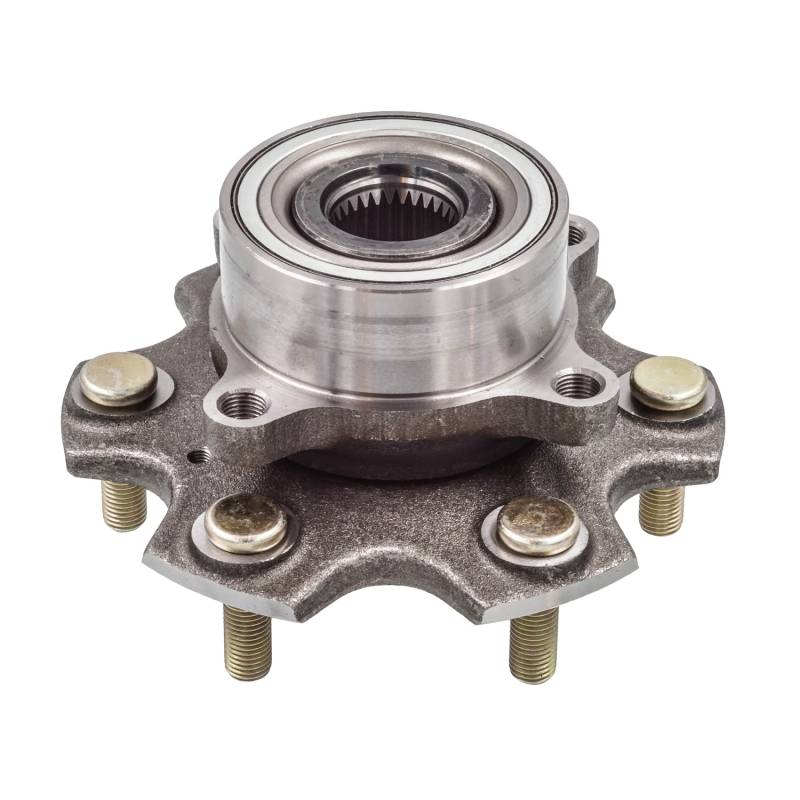

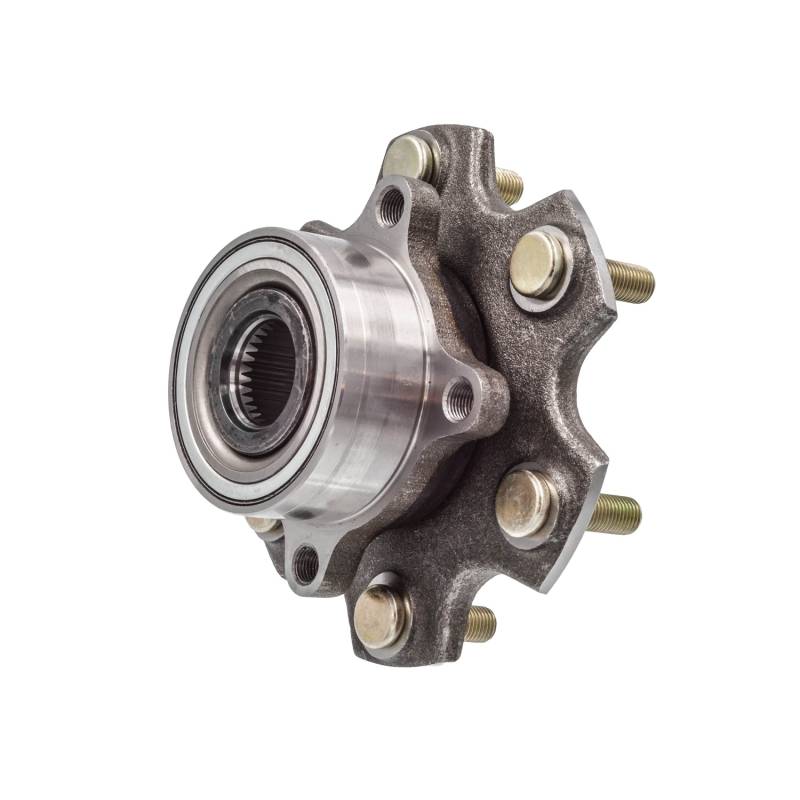

New Hub Assembly Compatible With Mitsubishi Montero Sport Montero 3.0L 3.5L 3.8L 2001 2002 2003 2004

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

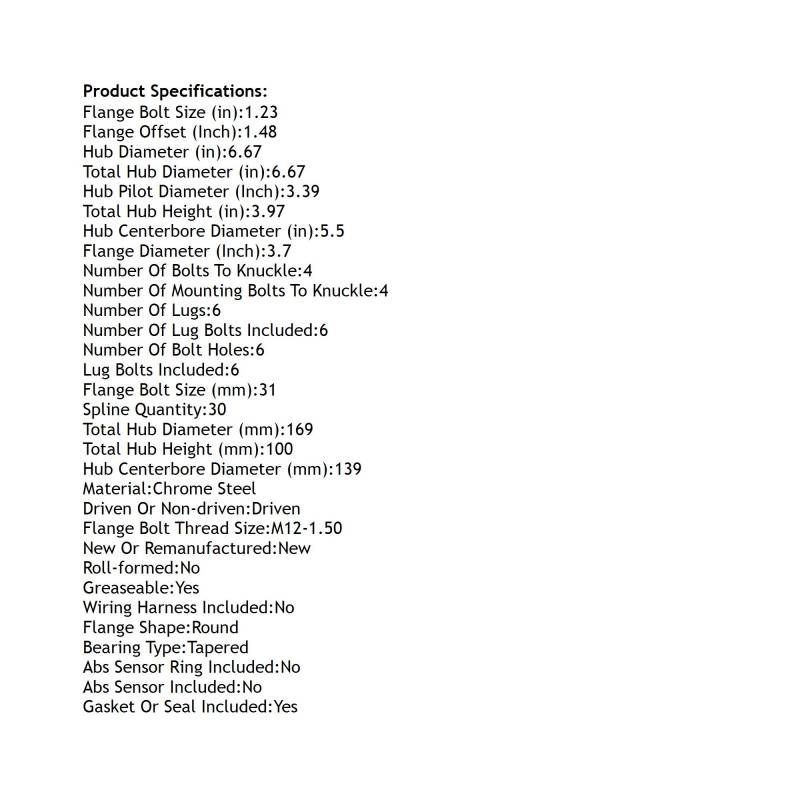

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.23
FLANGE BOLT SIZE (MM): 31
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.7
FLANGE OFFSET (INCH): 1.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 6.67
HUB PILOT DIAMETER (INCH): 3.39
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 6.67
TOTAL HUB DIAMETER (MM): 169
TOTAL HUB HEIGHT (IN): 3.97
TOTAL HUB HEIGHT (MM): 100
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-07422
BCA: WE61568
BECK/ARNLEY: 051-6175 051-6179
CENTRIC PARTS: 40046006E
FAG US: 102013
GSP: 106074
MEVOTECH: H515074
MOOG HUB ASSEMBLIES: 515074
NAPA: PBR930441

APPLICATIONS:
MITSUBISHI MONTERO SPORT (2001-2006)
MITSUBISHI MONTERO (2001-2006)
