THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

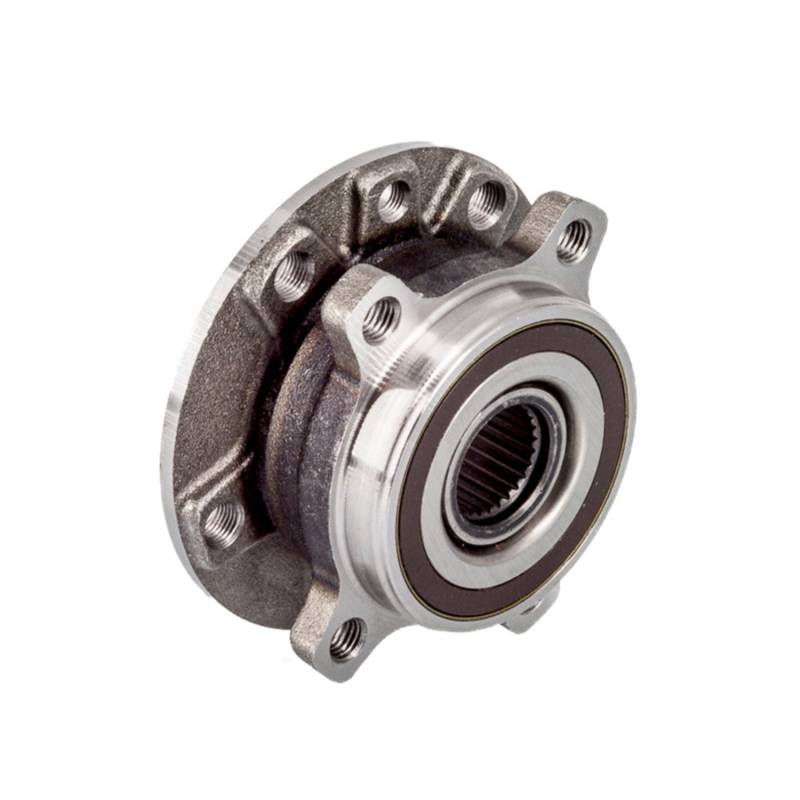

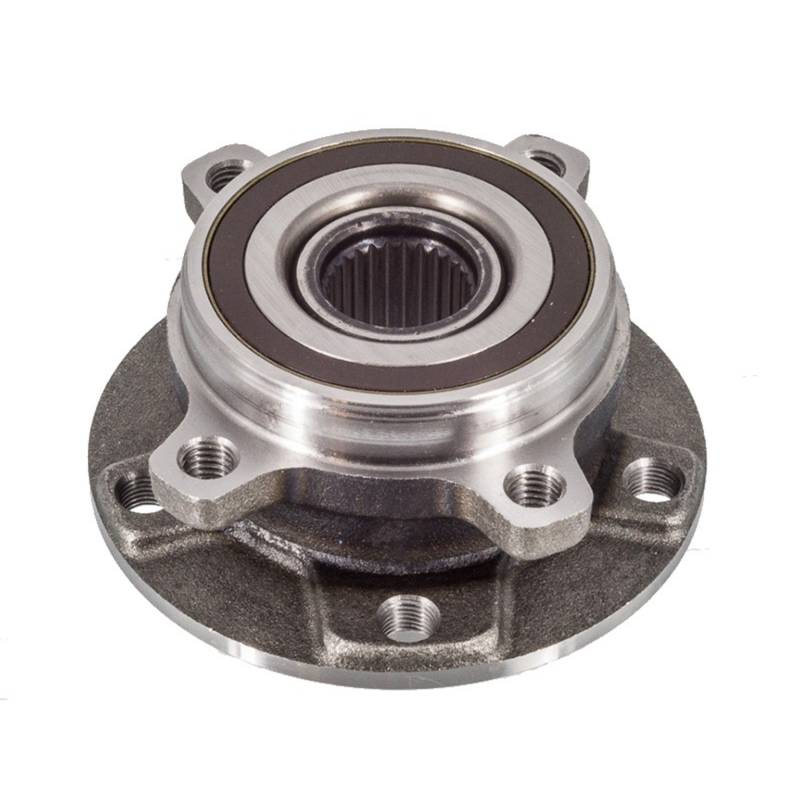

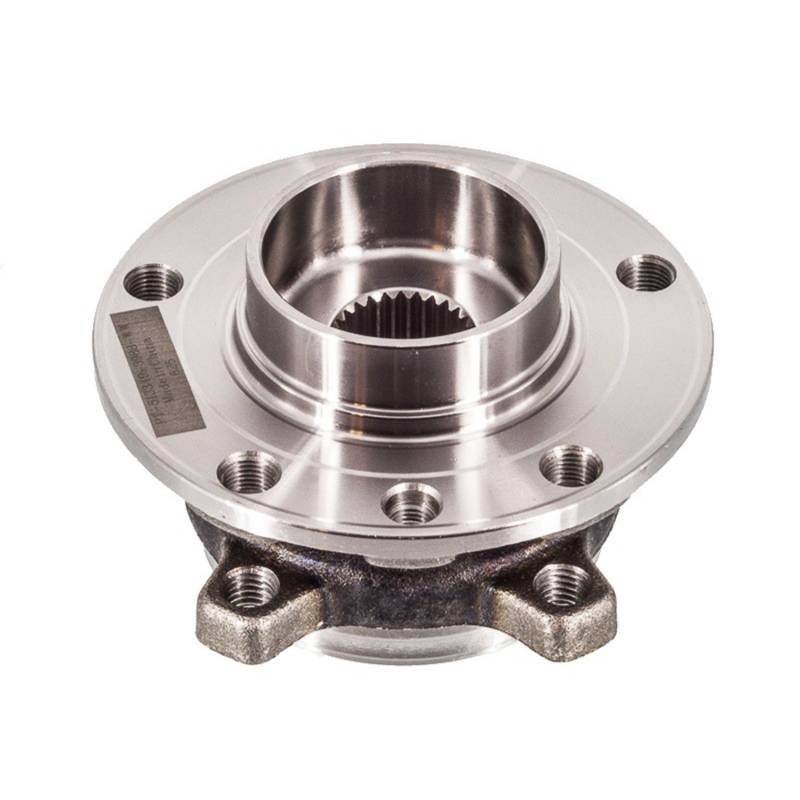

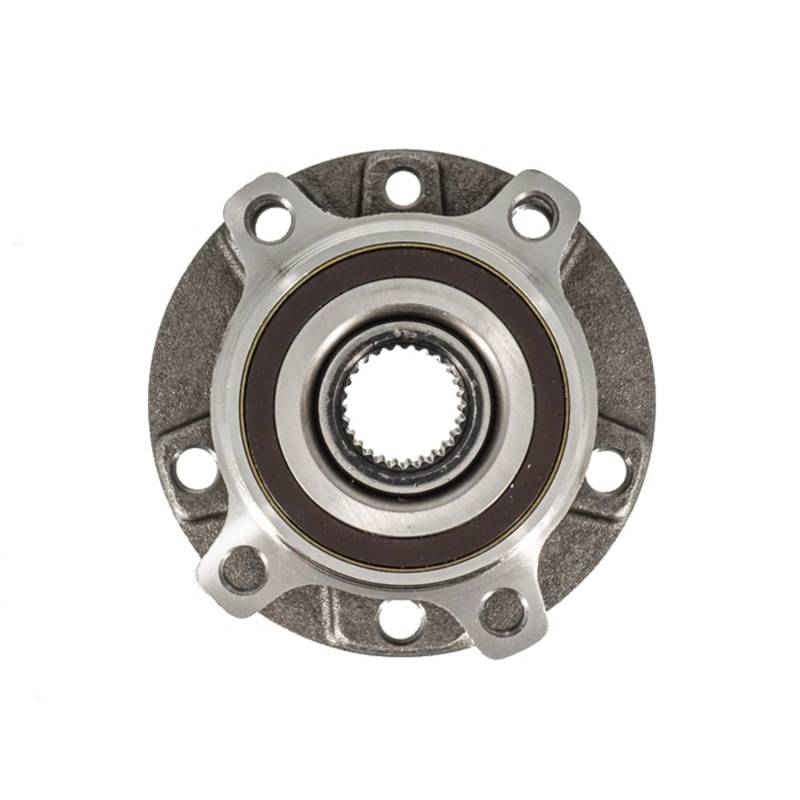

PRODUCT TYPE: HUB ASSEMBLY

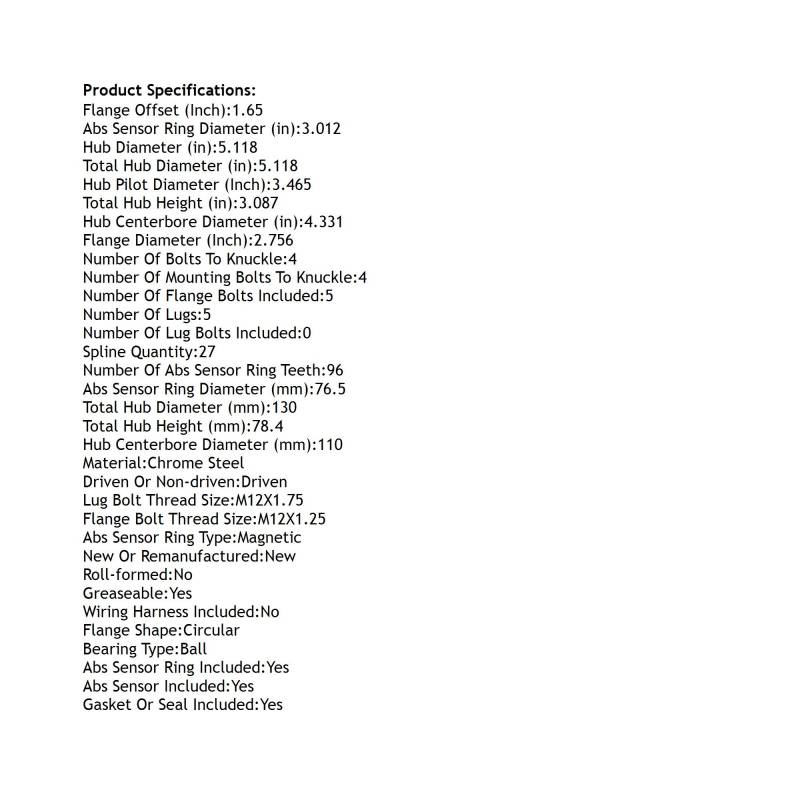

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.012
ABS SENSOR RING DIAMETER (MM): 76.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.756
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.331
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.118
HUB PILOT DIAMETER (INCH): 3.465
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.118
TOTAL HUB DIAMETER (MM): 130
TOTAL HUB HEIGHT (IN): 3.087
TOTAL HUB HEIGHT (MM): 78.4
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-540743
BCA: WE61902
CENTRIC PARTS: 40158002
FAG US: 103156
GSP: 824349
MEVOTECH: MB25318
MOOG HUB ASSEMBLIES: 513349
APPLICATIONS:
JEEP CHEROKEE (2014-2023)
