THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

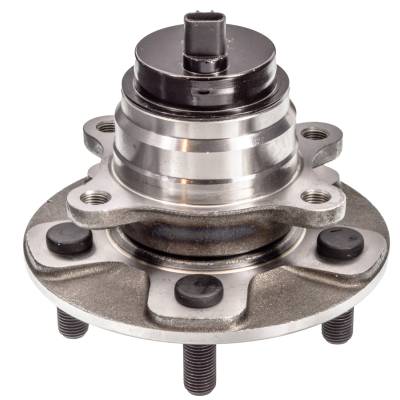

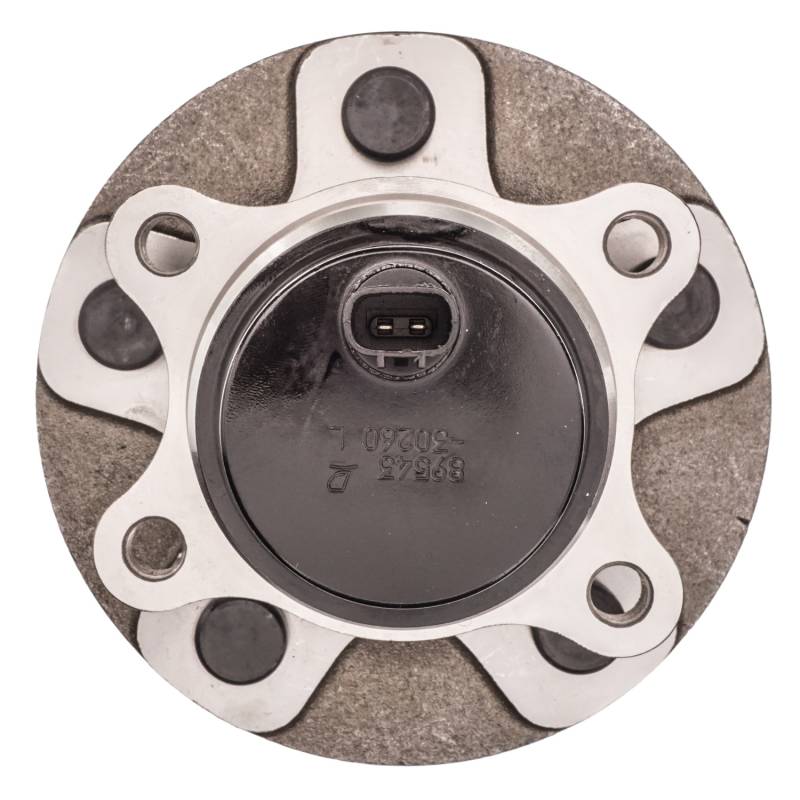

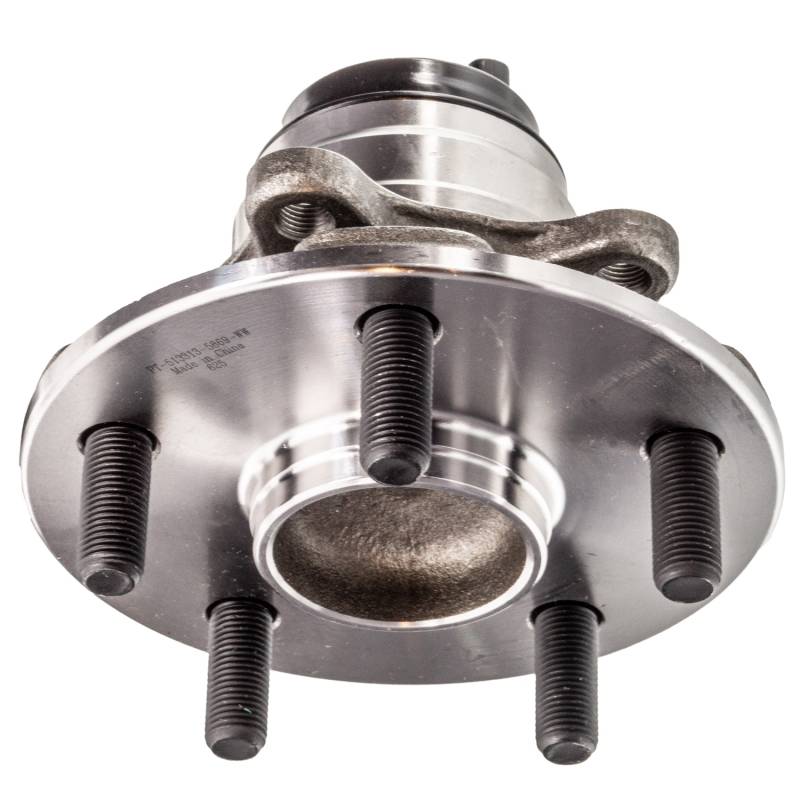

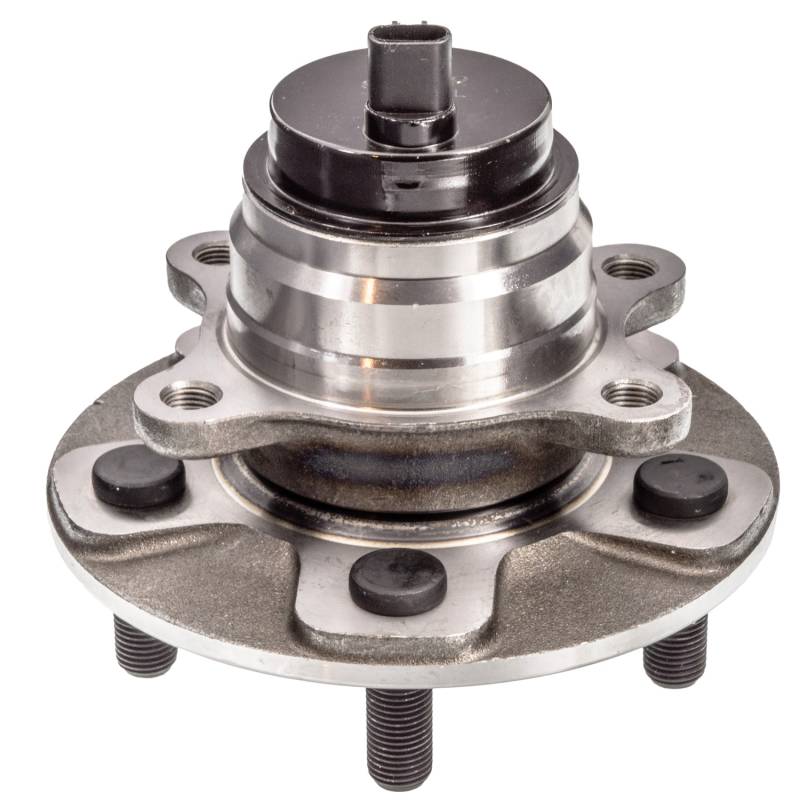

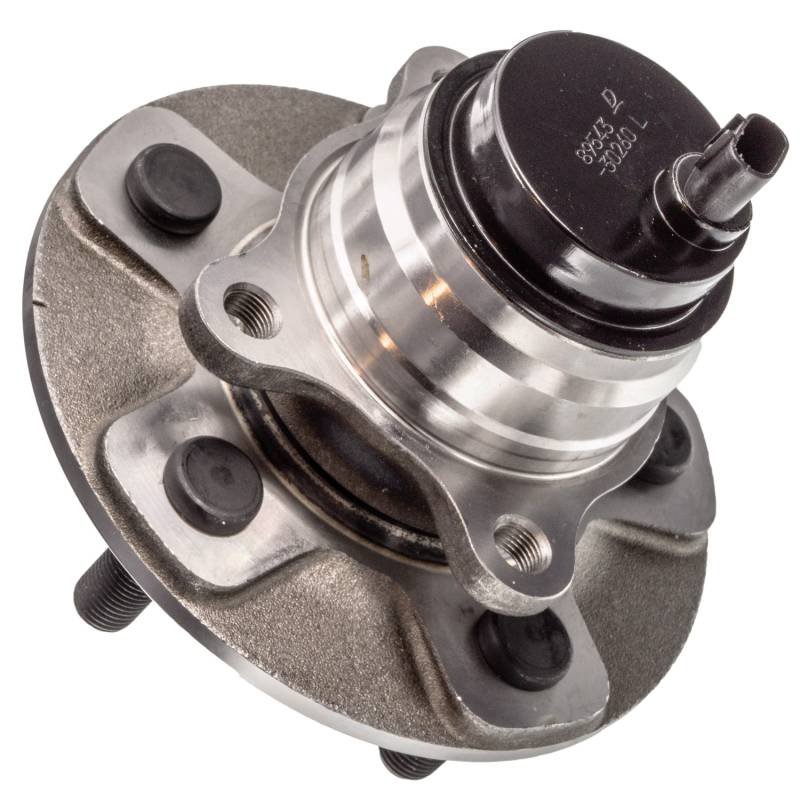

PRODUCT TYPE: HUB ASSEMBLY

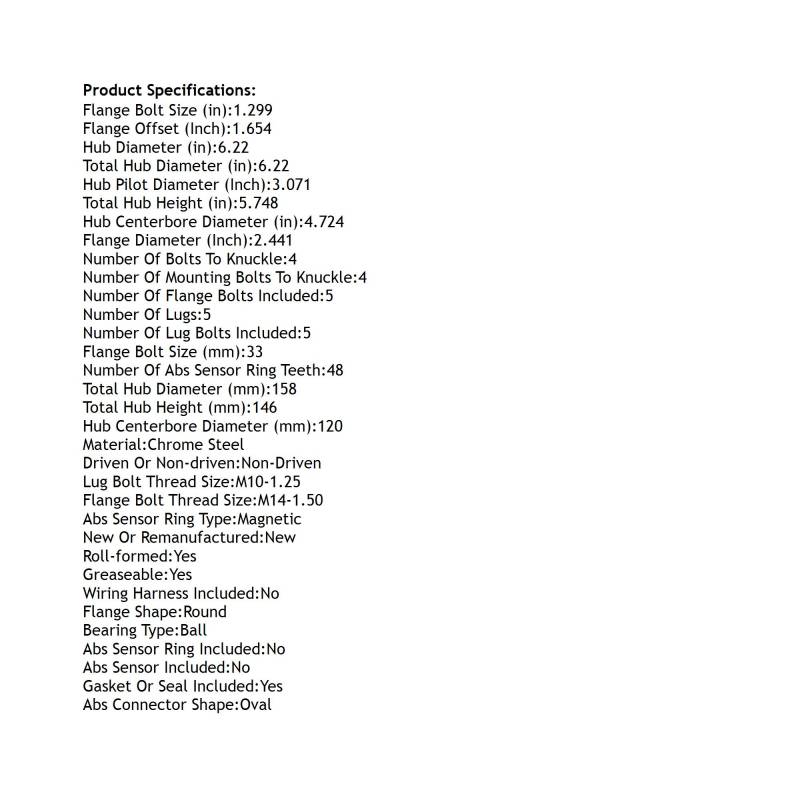

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.299
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.22
HUB PILOT DIAMETER (INCH): 3.071
LUG BOLT THREAD SIZE: M10-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 6.22
TOTAL HUB DIAMETER (MM): 158
TOTAL HUB HEIGHT (IN): 5.748
TOTAL HUB HEIGHT (MM): 146
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-285207
BCA: WE61632
BECK/ARNLEY: 051-6416
CENTRIC PARTS: 40744025
FAG US: 102305
GSP: 694313
MEVOTECH: H513313
MOOG HUB ASSEMBLIES: 513313
NAPA: PBR930794
APPLICATIONS:
LEXUS LS460 (2007-2017)
