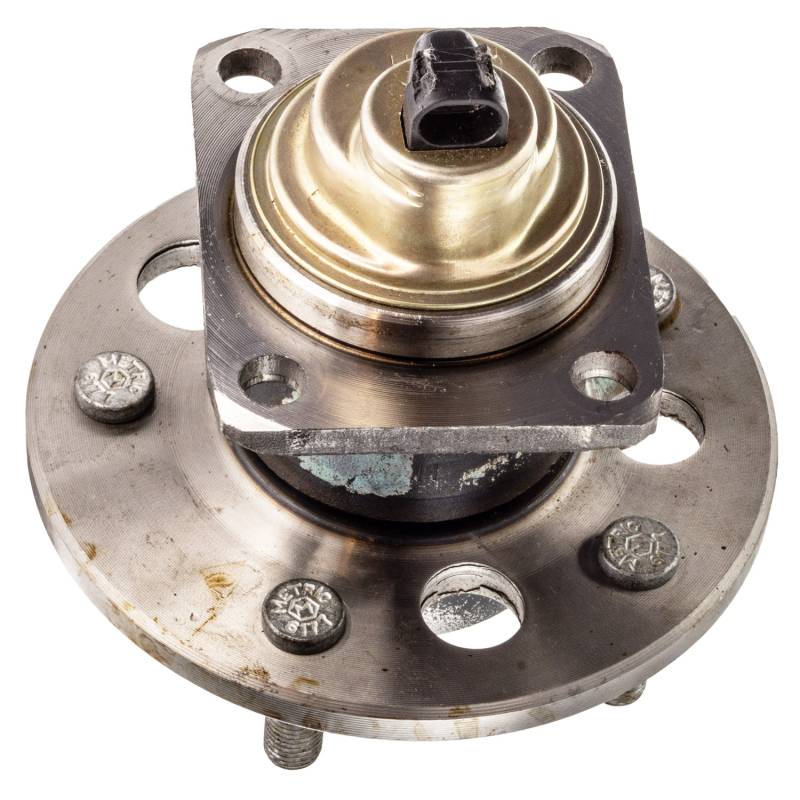

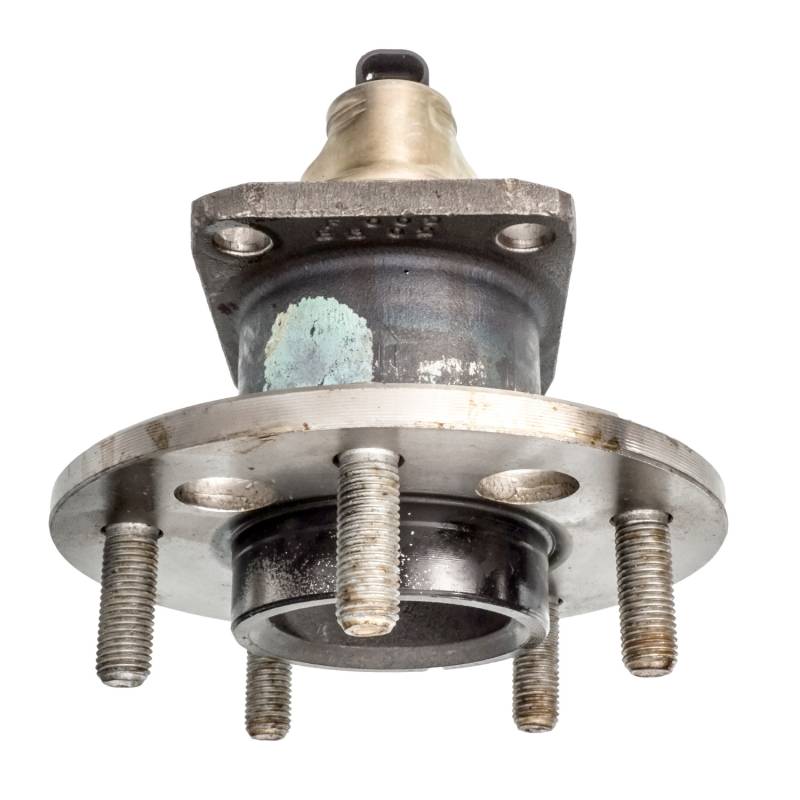

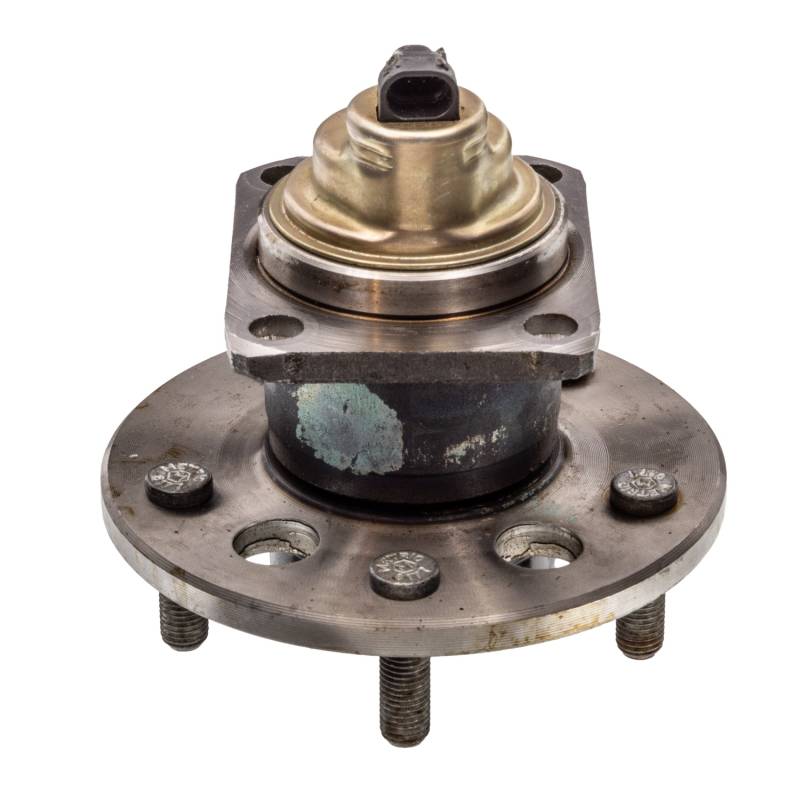

New Hub Assembly Compatible With Buick Oldsmobile Pontiac Regal Cutlass Supreme Grand Prix 1989 1990

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

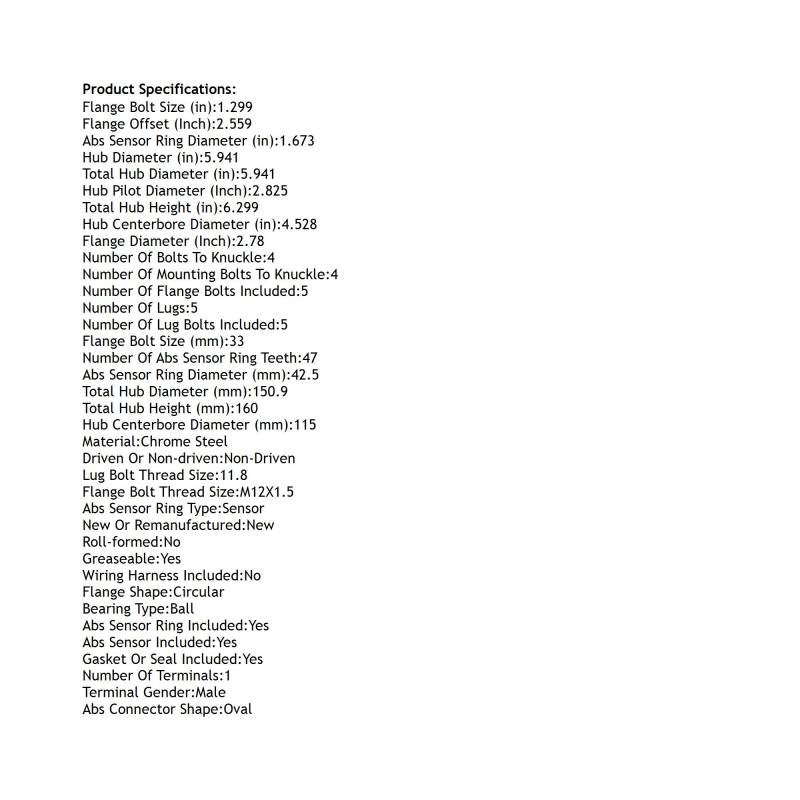

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.673
ABS SENSOR RING DIAMETER (MM): 42.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.299
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.559
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.941
HUB PILOT DIAMETER (INCH): 2.825
LUG BOLT THREAD SIZE: 11.8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.941
TOTAL HUB DIAMETER (MM): 150.9
TOTAL HUB HEIGHT (IN): 6.299
TOTAL HUB HEIGHT (MM): 160
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-44721
CENTRIC PARTS: 40762003E
MEVOTECH: H512004
MOOG HUB ASSEMBLIES: 513042
NAPA: PBR930087

APPLICATIONS:
BUICK REGAL (1989-1991)
OLDSMOBILE CUTLASS SUPREME (1989-1991)
PONTIAC GRAND PRIX (1989-1991)
