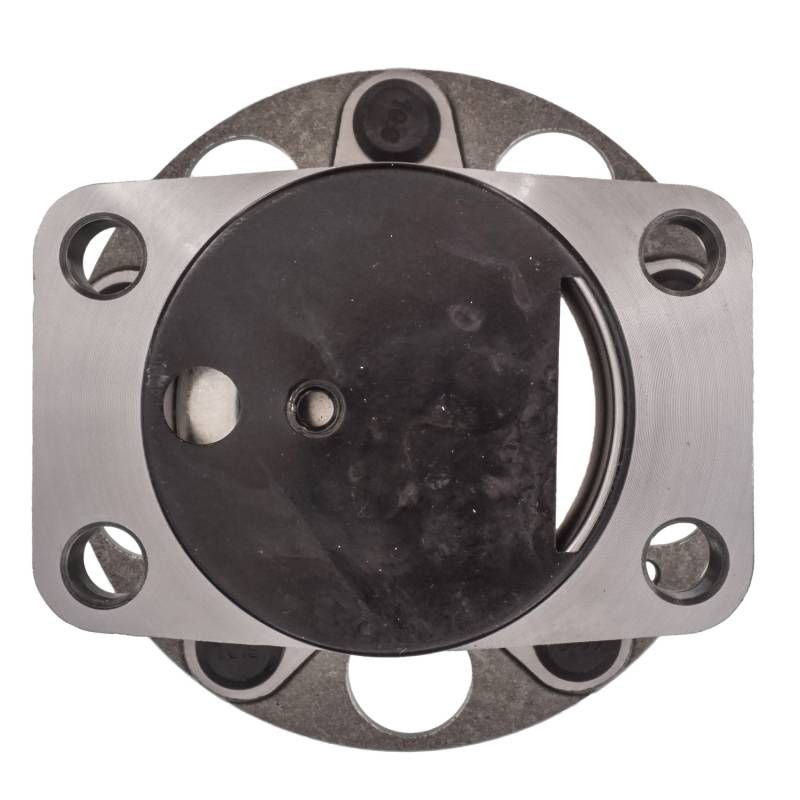

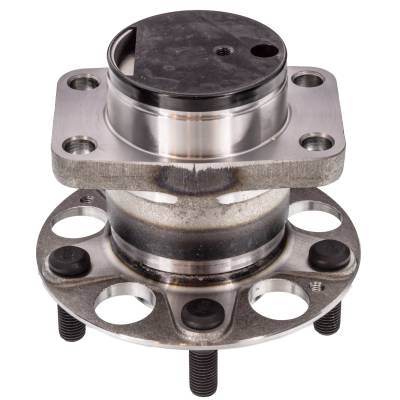

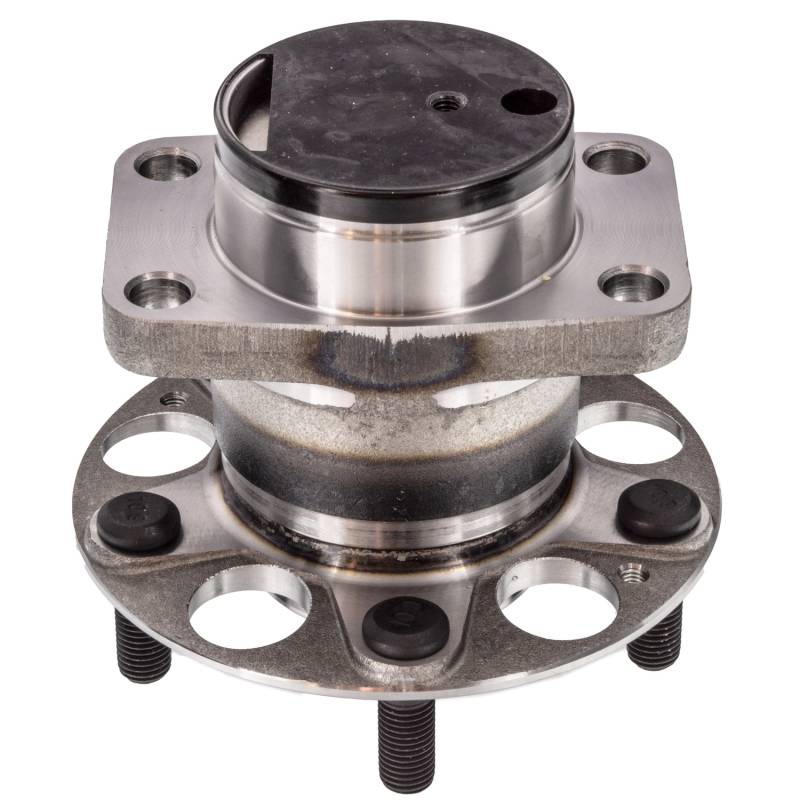

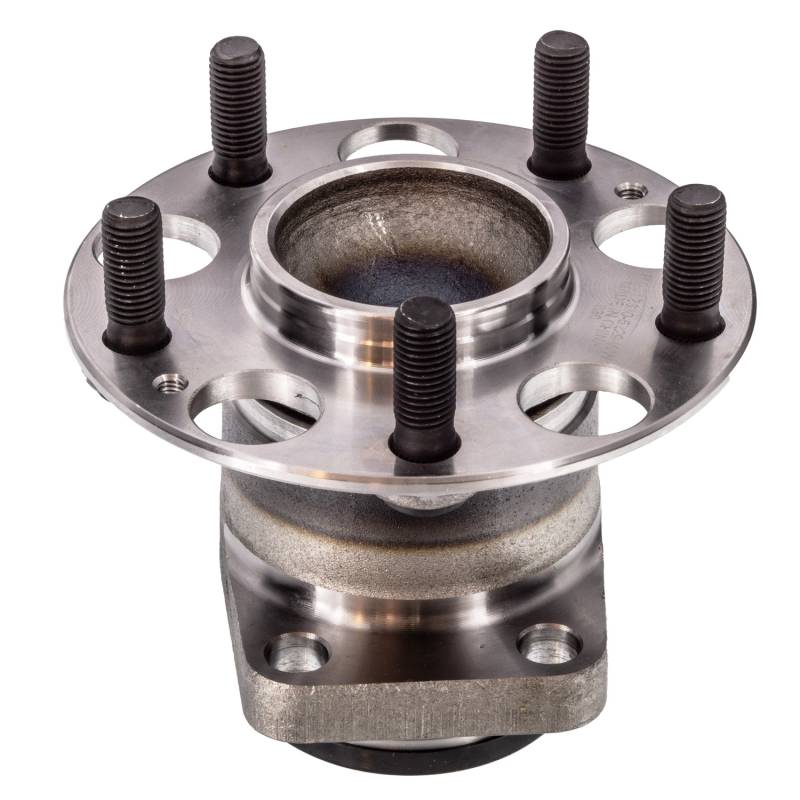

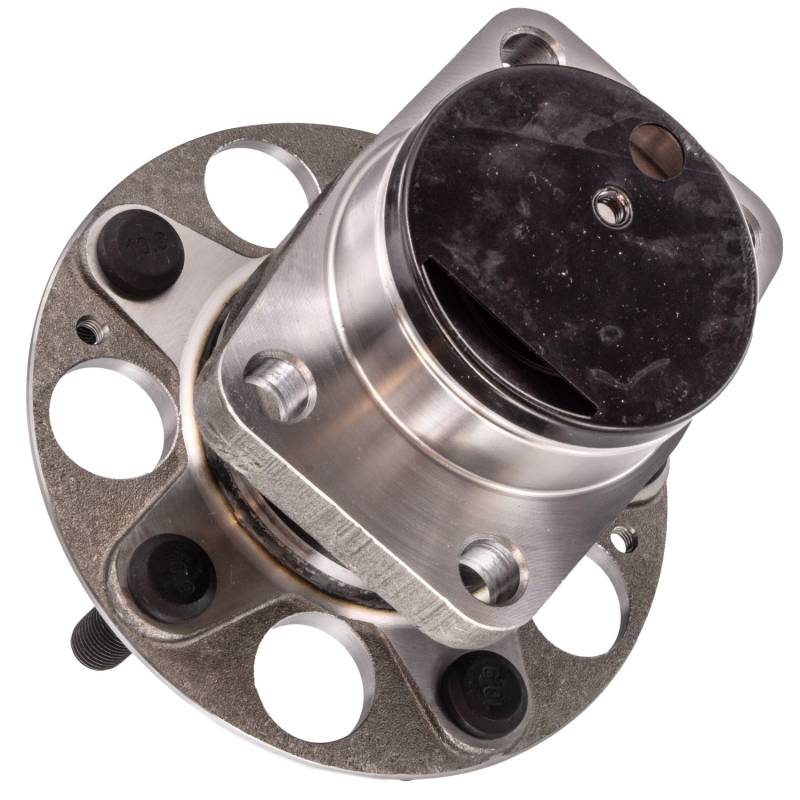

New Hub Assembly Compatible With Honda Hr-V 1.8L 2016 2017 2018 2019 2020 2021 2022 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.18
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.52
FLANGE OFFSET (INCH): 2.76
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.47
HUB PILOT DIAMETER (INCH): 2.87
LUG BOLT THREAD SIZE: 12.2
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 41
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.47
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 5.04
TOTAL HUB HEIGHT (MM): 128
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-605388
BCA: WE61946
BECK/ARNLEY: 051-6490
GSP: 363630
HONDA: 42200-T7A-J52 42200-T7A-J53
MOOG HUB ASSEMBLIES: 512630
NAPA: PBR931161

APPLICATIONS:
HONDA HR-V (2016-2022)
