New Hub Assembly Compatible With Lexus Toyota Ct200h Prius C Prius V Prius Prius Prime Prius Awd-E

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

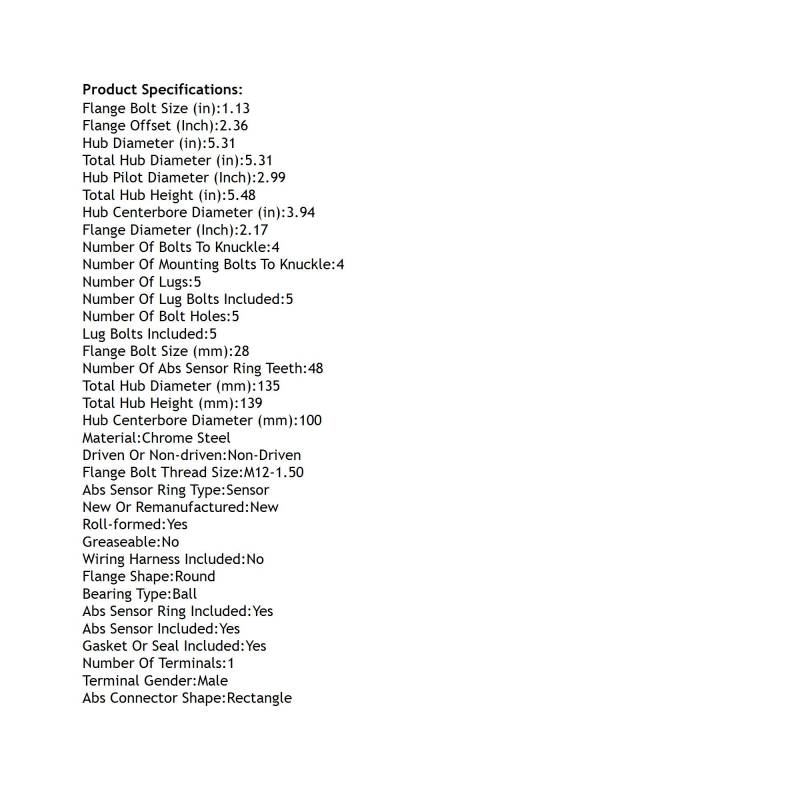

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.13
FLANGE BOLT SIZE (MM): 28
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.17
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.31
HUB PILOT DIAMETER (INCH): 2.99
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.31
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 5.48
TOTAL HUB HEIGHT (MM): 139
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-481001
BCA: WE61909
BECK/ARNLEY: 051-6495
CENTRIC PARTS: 40744032
GSP: 693547
MOOG HUB ASSEMBLIES: 512547
MPA: WH590413
NAPA: PBR930974

APPLICATIONS:
LEXUS CT200H (2011-2017)
TOYOTA PRIUS C (2016-2021)
TOYOTA PRIUS V (2016-2018)
TOYOTA PRIUS (2016-2022)
TOYOTA PRIUS PRIME (2017-2022)
TOYOTA PRIUS AWD-E (2019-2022)
TOYOTA COROLLA (2020-2023)
TOYOTA COROLLA CROSS (2022-2023)
