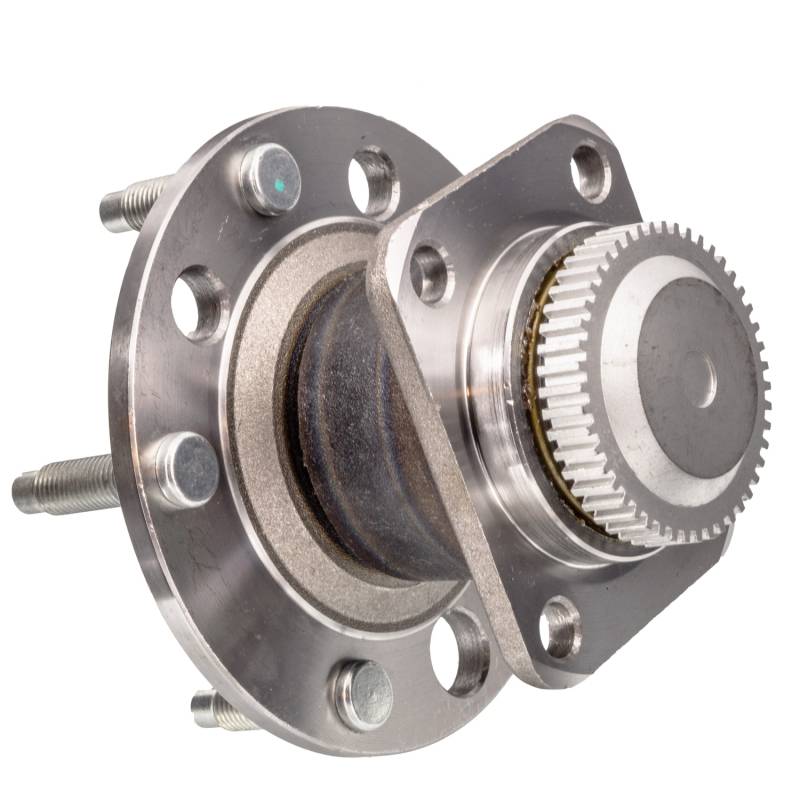

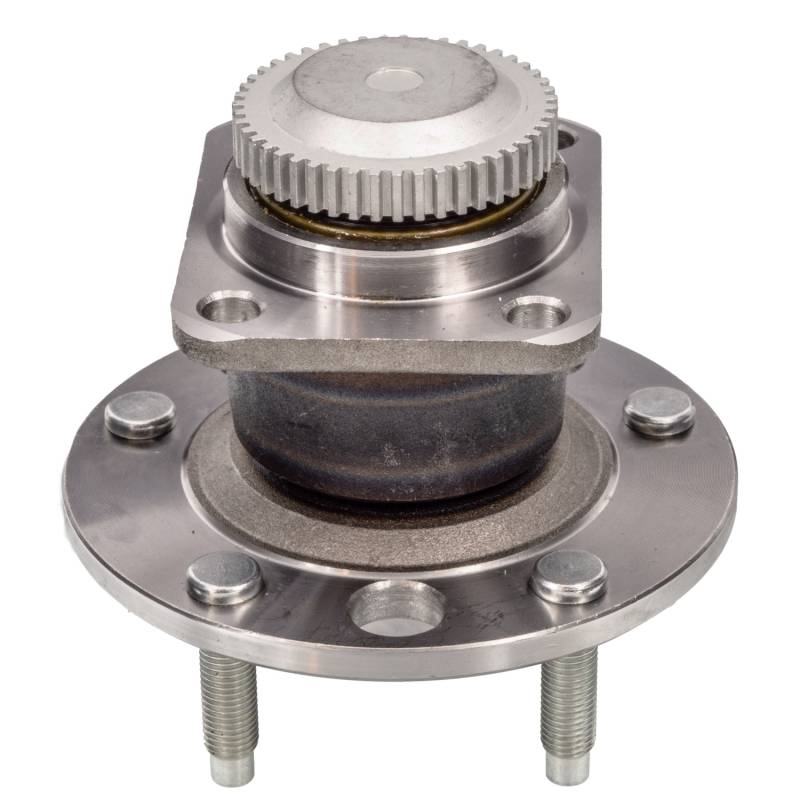

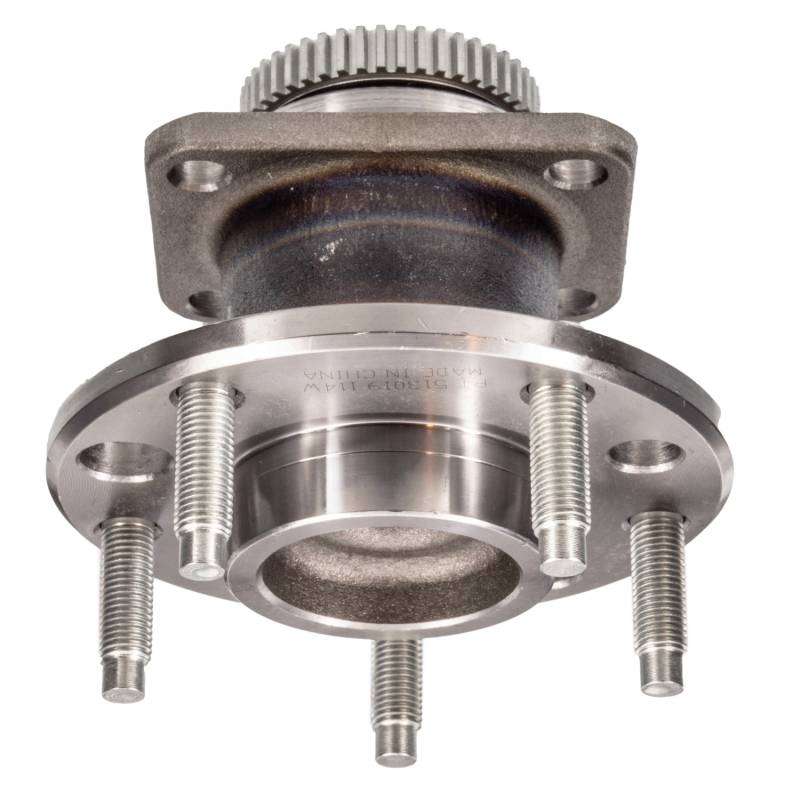

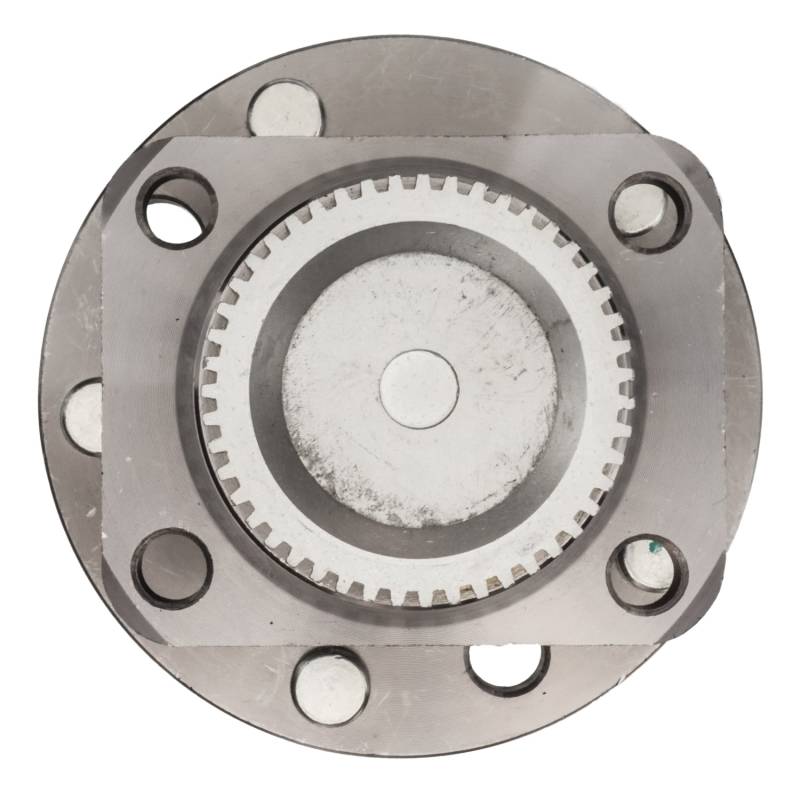

New Hub Assembly Compatible With Chevrolet Corvette 5.7L 1984 1985 1986 1987 1988 1989 1990 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.638
ABS SENSOR RING DIAMETER (MM): 67
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.543
FLANGE BOLT SIZE (MM): 39.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.715
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.75
HUB CENTERBORE DIAMETER (MM): 120.65
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 2.825
LUG BOLT THREAD SIZE: 11.9
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 5.531
TOTAL HUB HEIGHT (MM): 140.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-02103
CENTRIC PARTS: 40662001
FAG US: 102209
GSP: 104019
MEVOTECH: H513019
MOOG HUB ASSEMBLIES: 513019
NAPA: PBR930023

APPLICATIONS:
CHEVROLET CORVETTE (1984-1990)
