THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

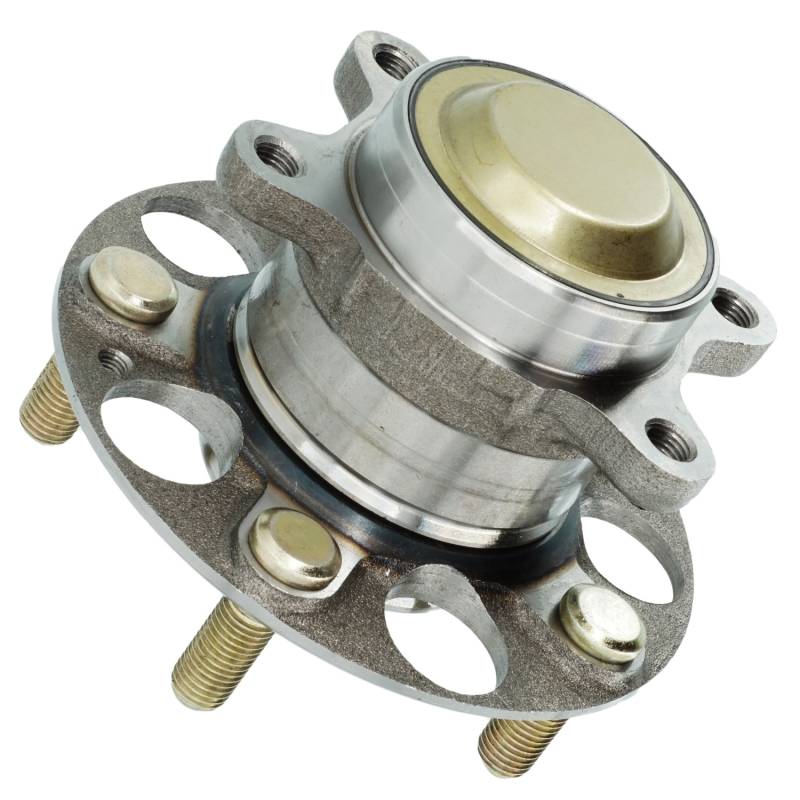

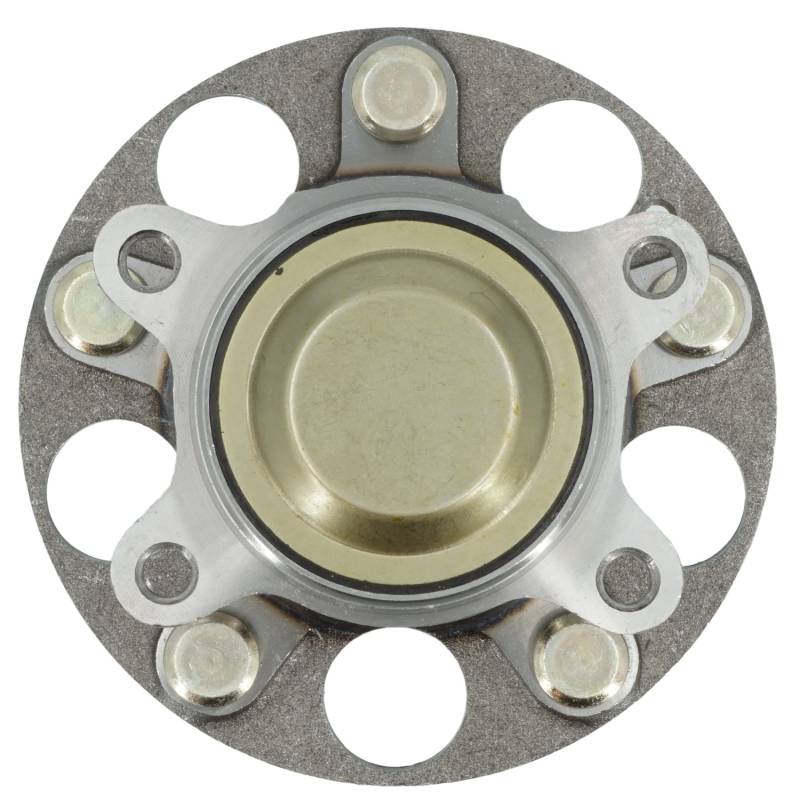

PRODUCT TYPE: HUB ASSEMBLY

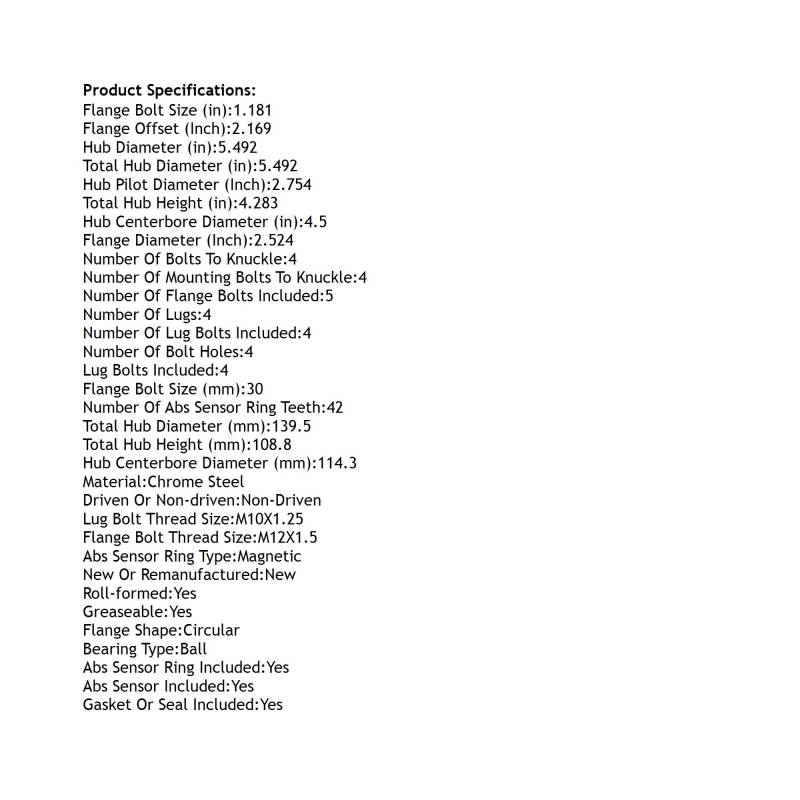

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.181
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.524
FLANGE OFFSET (INCH): 2.169
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.492
HUB PILOT DIAMETER (INCH): 2.754
LUG BOLT THREAD SIZE: M10X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 42
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.492
TOTAL HUB DIAMETER (MM): 139.5
TOTAL HUB HEIGHT (IN): 4.283
TOTAL HUB HEIGHT (MM): 108.8
REPLACES:
AUTOPART INTERNATIONAL: 1411-556364
BCA: WE61883
BECK/ARNLEY: 051-6483
CENTRIC PARTS: 40640030
FAG US: 103192
GSP: 363451
MEVOTECH: MB60301
MOOG HUB ASSEMBLIES: 512503
MPA: WH590532
NAPA: PBR930862
APPLICATIONS:
HONDA CIVIC (2013-2015)
ACURA ILX (2016-2018)
