THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

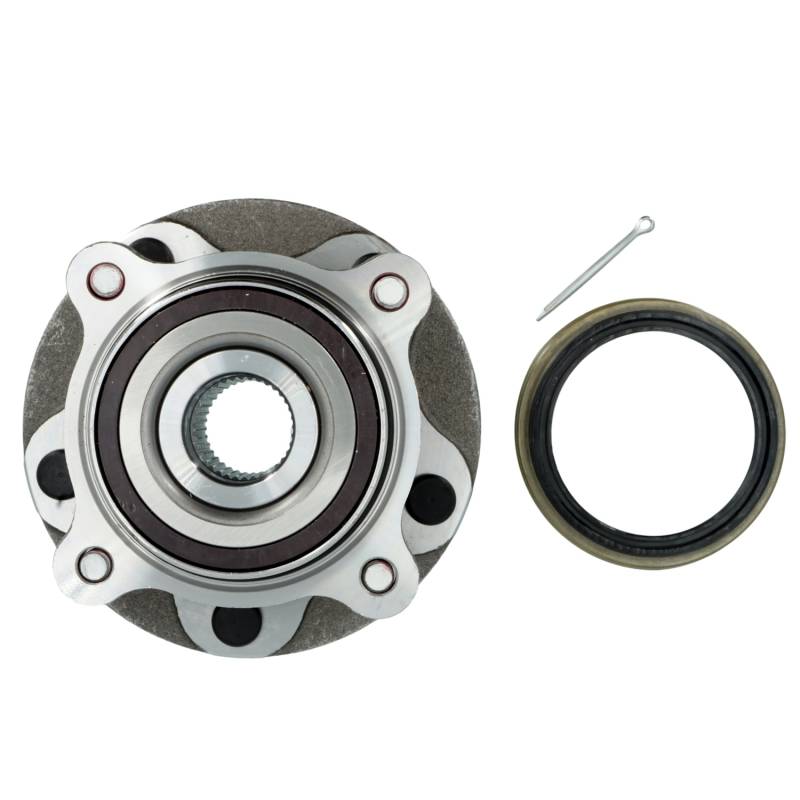

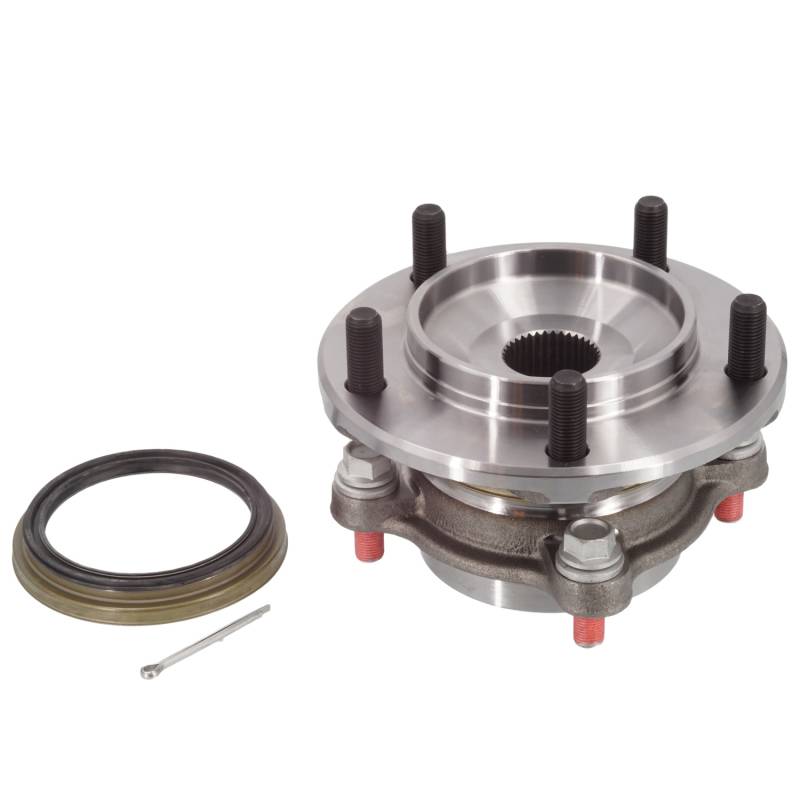

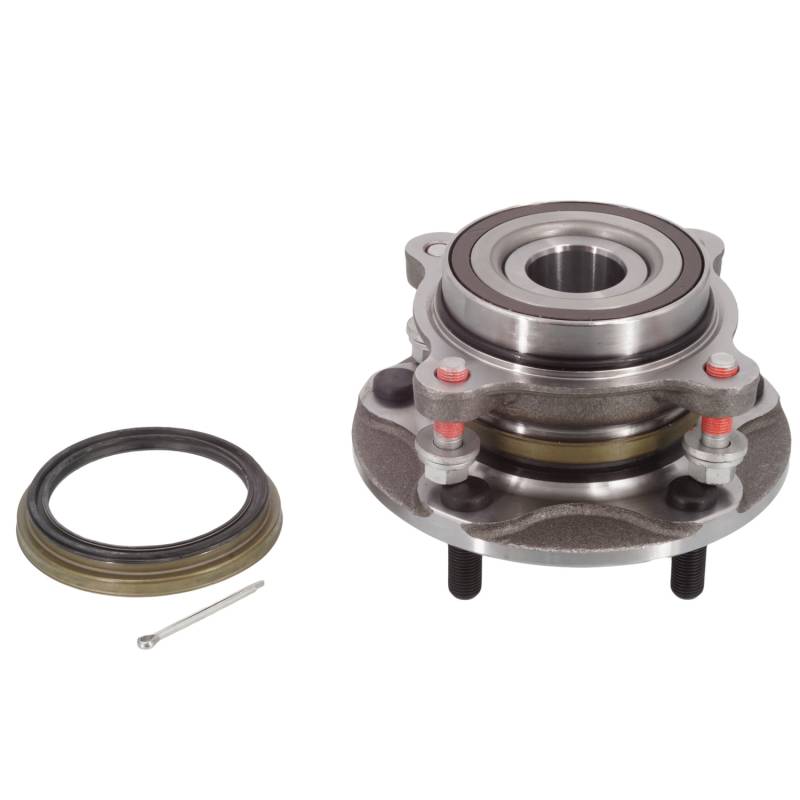

PRODUCT TYPE: HUB ASSEMBLY

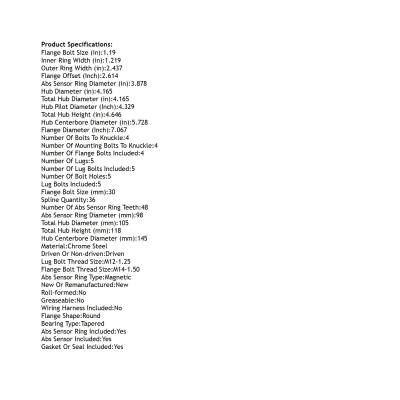

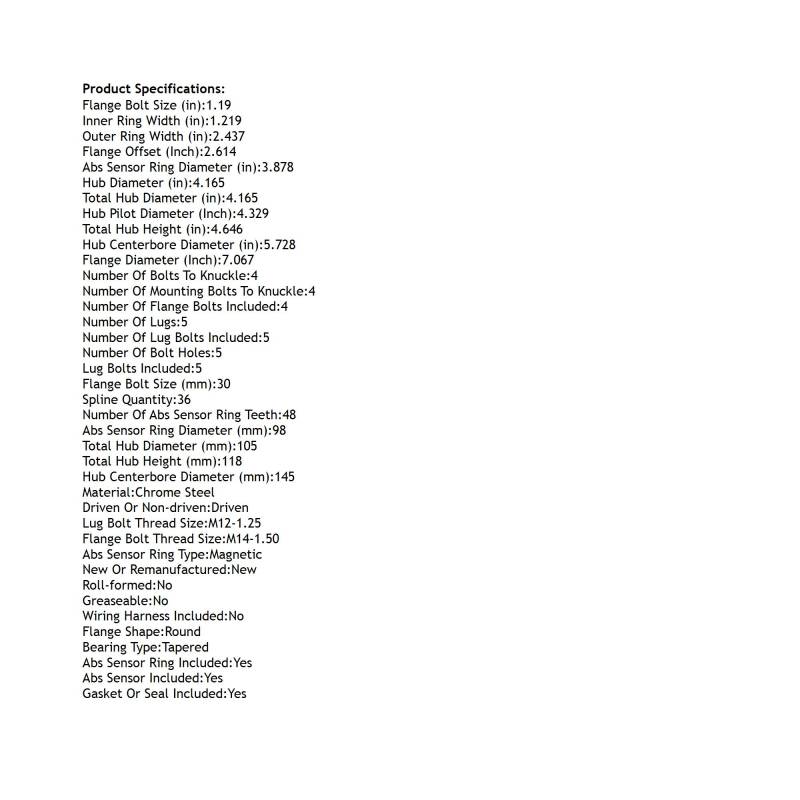

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.878
ABS SENSOR RING DIAMETER (MM): 98
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.19
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 7.067
FLANGE OFFSET (INCH): 2.614
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 5.728
HUB CENTERBORE DIAMETER (MM): 145
HUB DIAMETER (IN): 4.165
HUB PILOT DIAMETER (INCH): 4.329
INNER RING WIDTH (IN): 1.219
LUG BOLT THREAD SIZE: M12-1.25
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
OUTER RING WIDTH (IN): 2.437
ROLL-FORMED: NO
SPLINE QUANTITY: 36
TOTAL HUB DIAMETER (IN): 4.165
TOTAL HUB DIAMETER (MM): 105
TOTAL HUB HEIGHT (IN): 4.646
TOTAL HUB HEIGHT (MM): 118
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-640293
BECK/ARNLEY: 051-6474
GSP: 361002PA
MOOG HUB ASSEMBLIES: 515202
NAPA: PBR930979
APPLICATIONS:
TOYOTA TUNDRA (2007-2021)
TOYOTA SEQUOIA (2008-2022)
