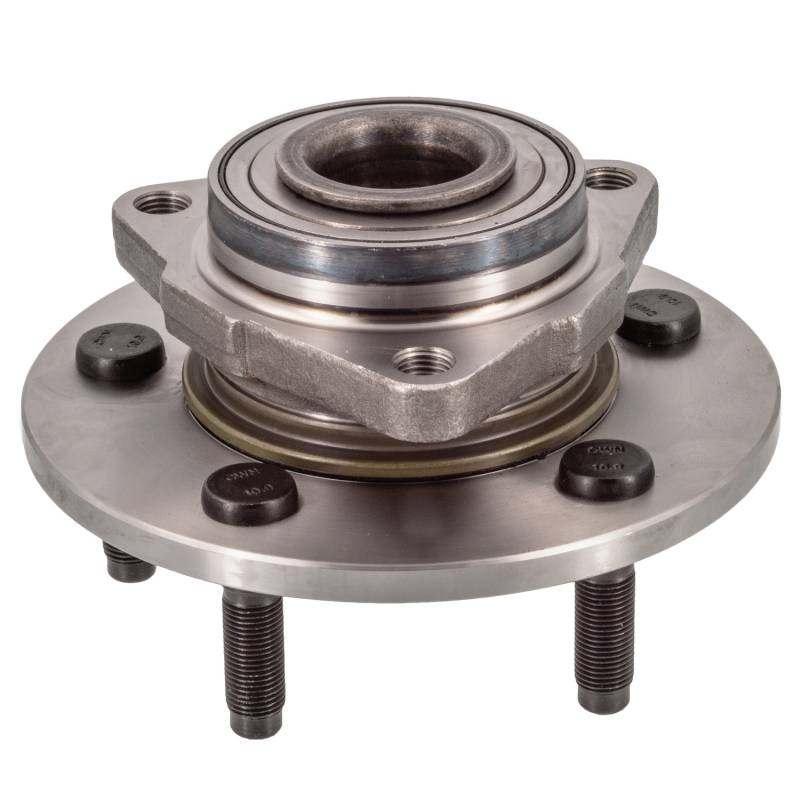

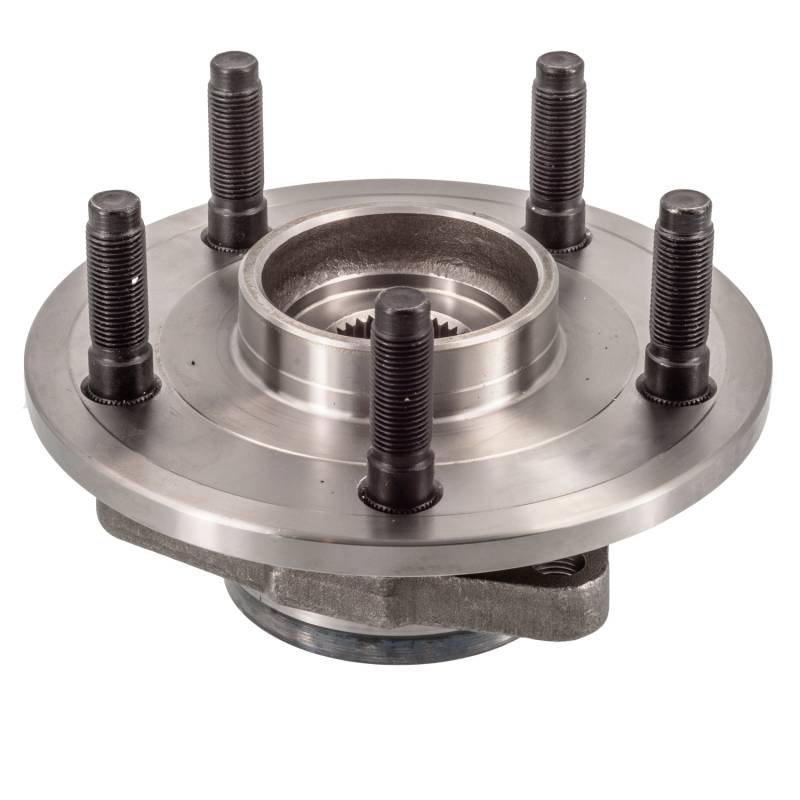

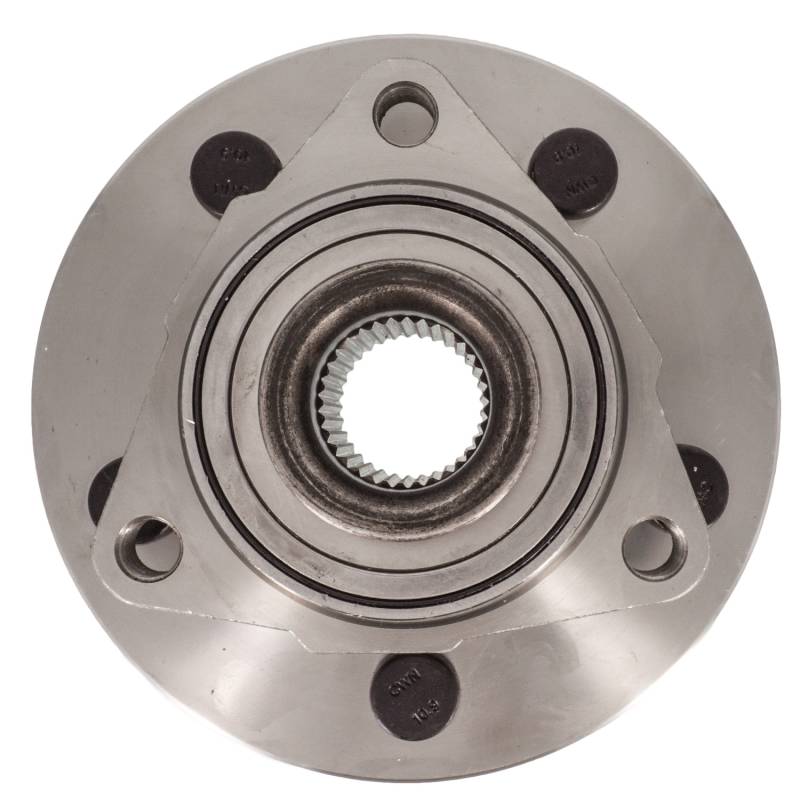

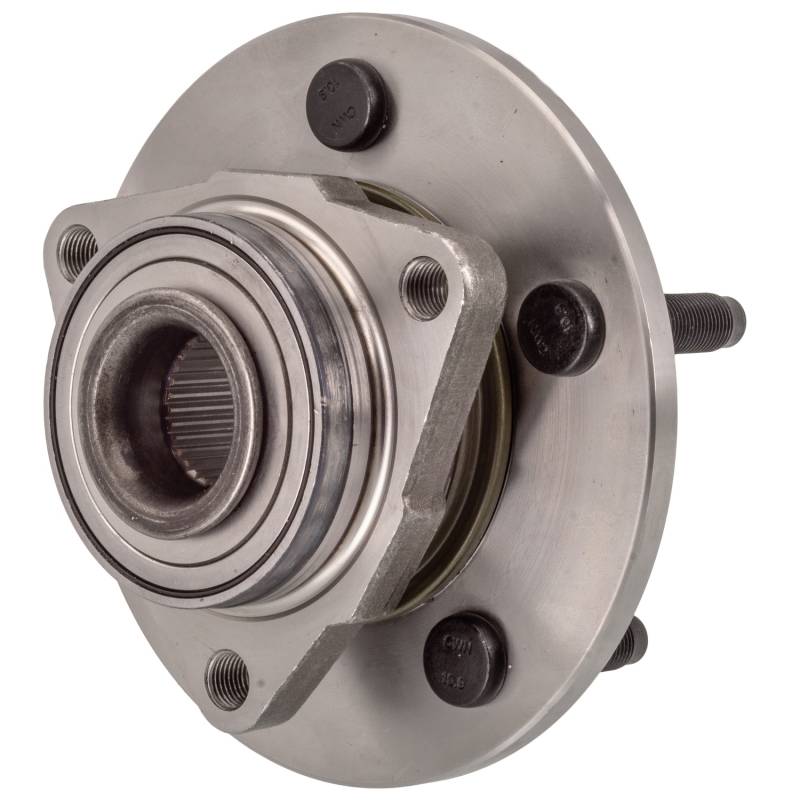

New Hub Assembly Compatible With Dodge Ram 1500 Van Ram 1500 2002 2003 2004 2005 2006 2007 2008 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.976
FLANGE BOLT SIZE (MM): 50.2
FLANGE BOLT THREAD SIZE: 43359
FLANGE DIAMETER (INCH): 3.087
FLANGE OFFSET (INCH): 1.843
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.205
HUB PILOT DIAMETER (INCH): 3.543
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 7.205
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.776
TOTAL HUB HEIGHT (MM): 121.3

REPLACES:
AUTOPART INTERNATIONAL: 1411-49115
BCA: WE61566
CENTRIC PARTS: 40067007
FAG US: 102011
GSP: 126072
MEVOTECH: H515072
MOOG HUB ASSEMBLIES: 515072
NAPA: PBR930284

APPLICATIONS:
DODGE RAM 1500 VAN (2002-2003)
DODGE RAM 1500 (2002-2008)
