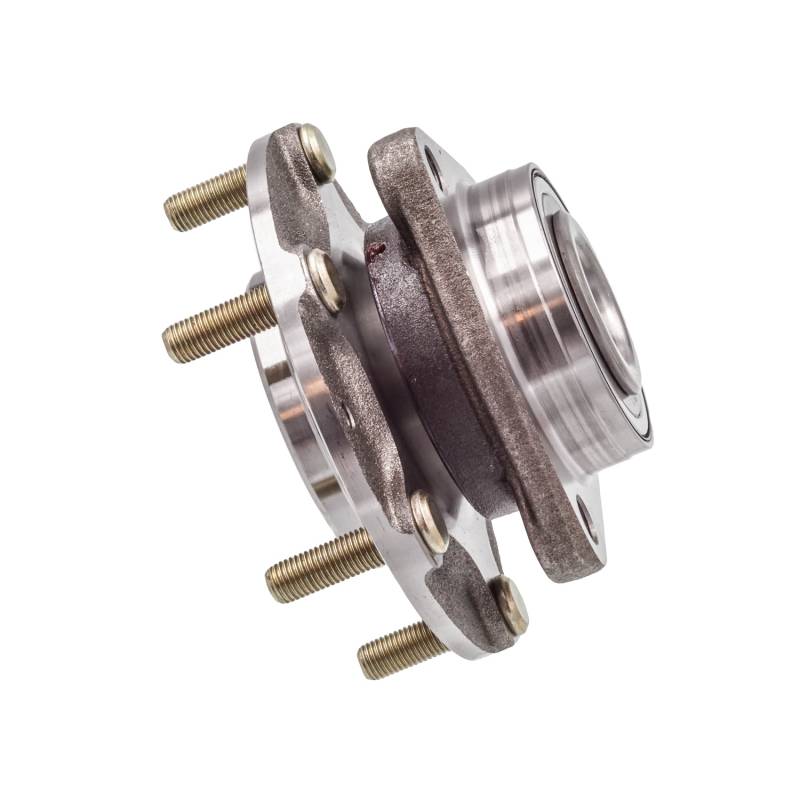

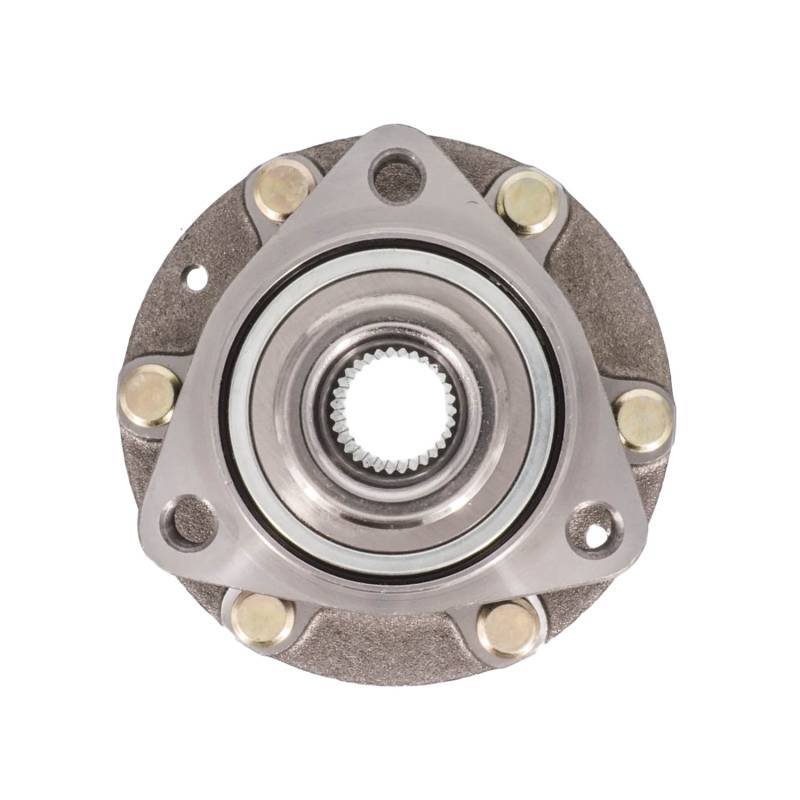

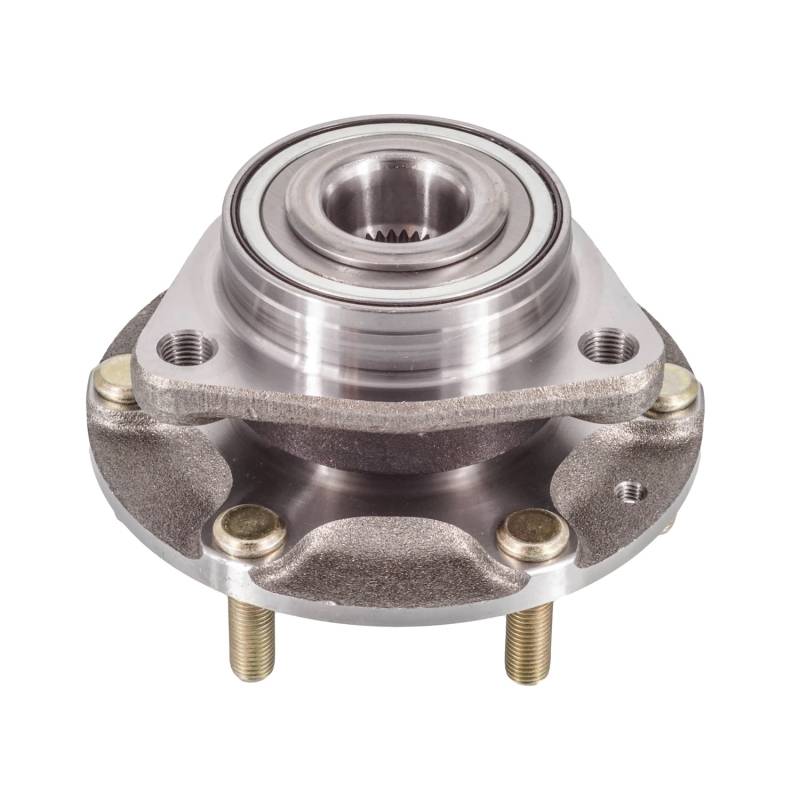

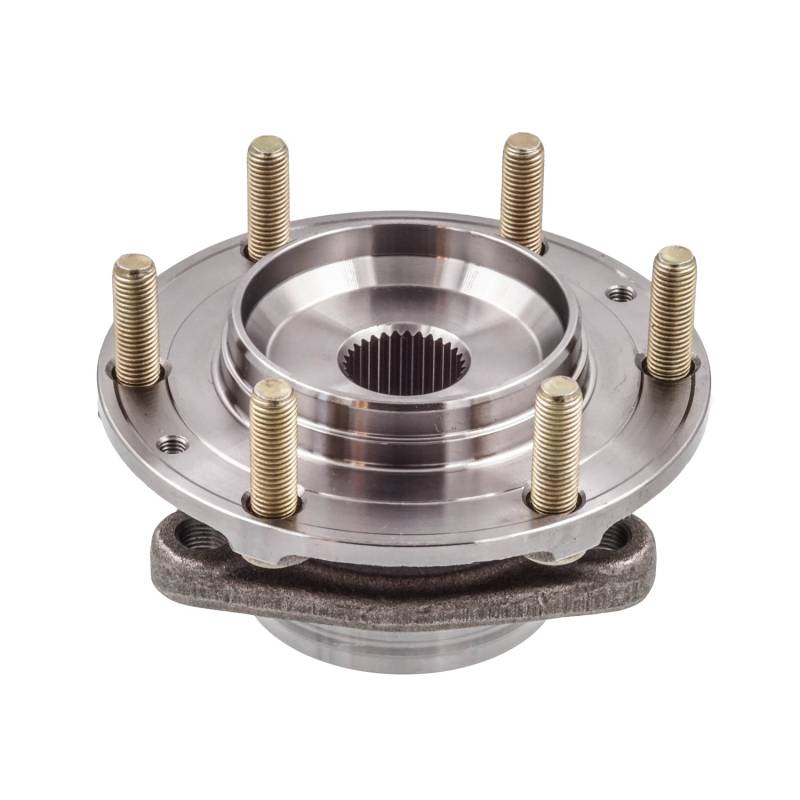

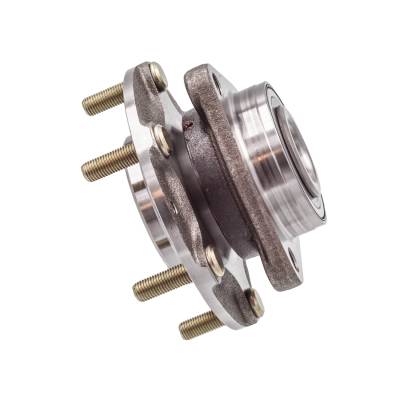

New Hub Assembly Compatible With Kia Hyundai Sedona Entourage 3.5L 3.8L 2006 2007 2008 2009 2010

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

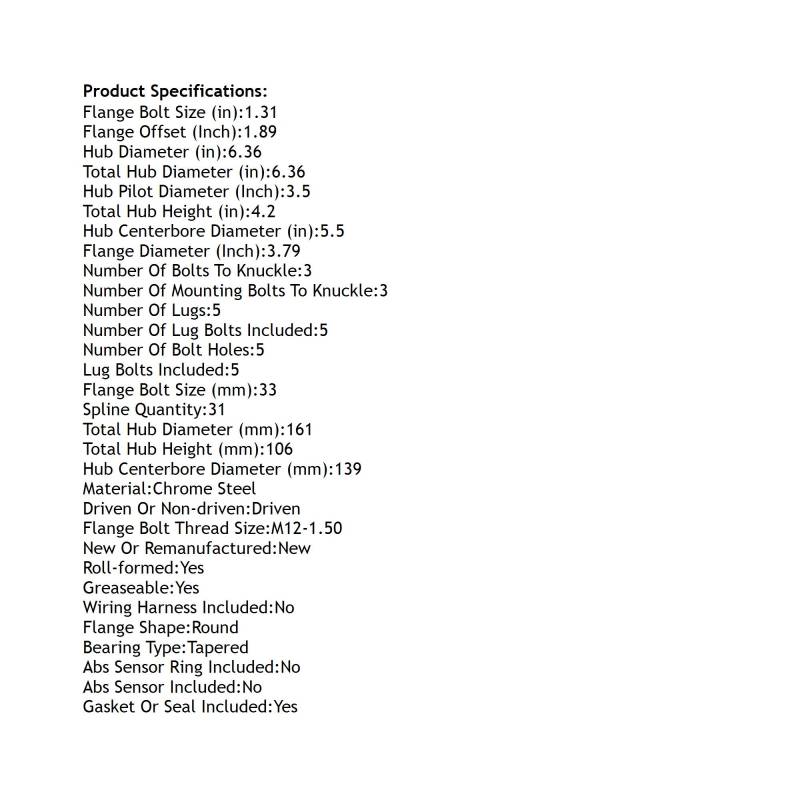

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.31
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.79
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 6.36
HUB PILOT DIAMETER (INCH): 3.5
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 31
TOTAL HUB DIAMETER (IN): 6.36
TOTAL HUB DIAMETER (MM): 161
TOTAL HUB HEIGHT (IN): 4.2
TOTAL HUB HEIGHT (MM): 106
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-248707
BCA: WE60958
BECK/ARNLEY: 051-6148
CENTRIC PARTS: 40051001E
FAG US: 805648C
GSP: 376090
MEVOTECH: H515090
MOOG HUB ASSEMBLIES: 515090
NAPA: PBR930462
ZZZN: 51750-4D000

APPLICATIONS:
KIA SEDONA (2006-2014)
HYUNDAI ENTOURAGE (2007-2010)
