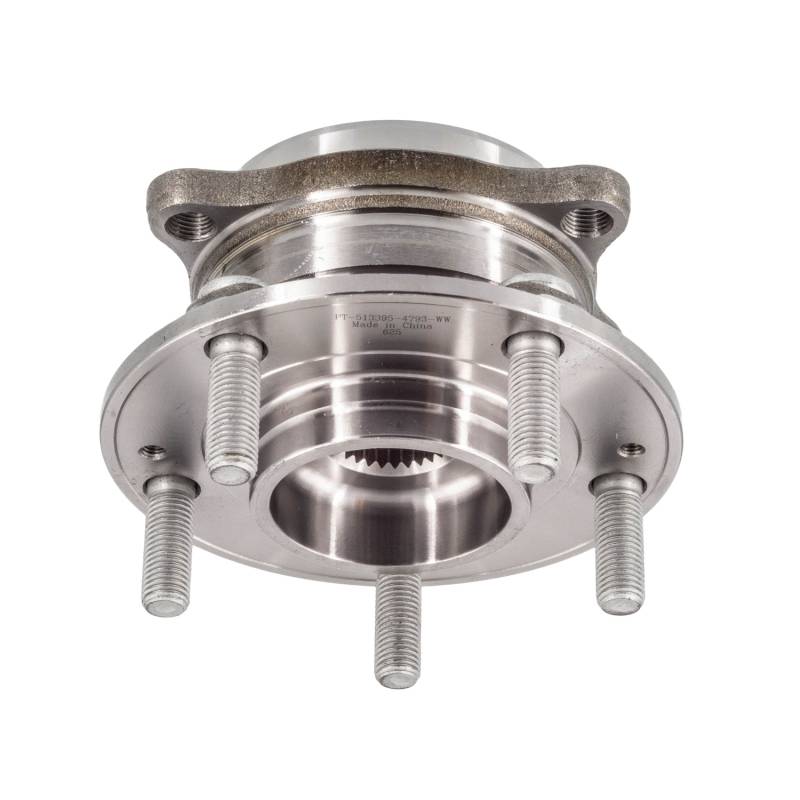

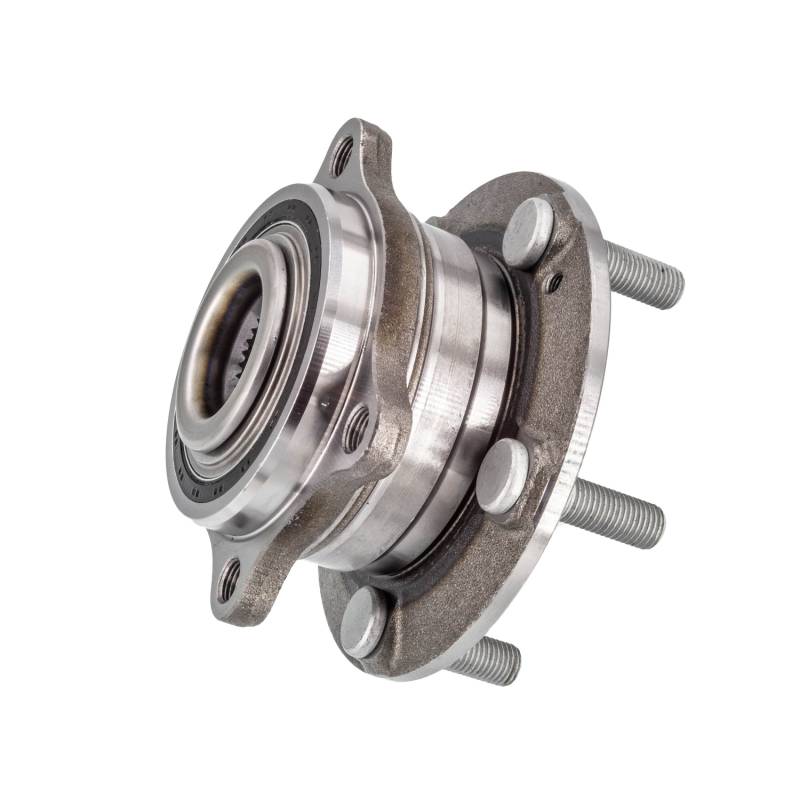

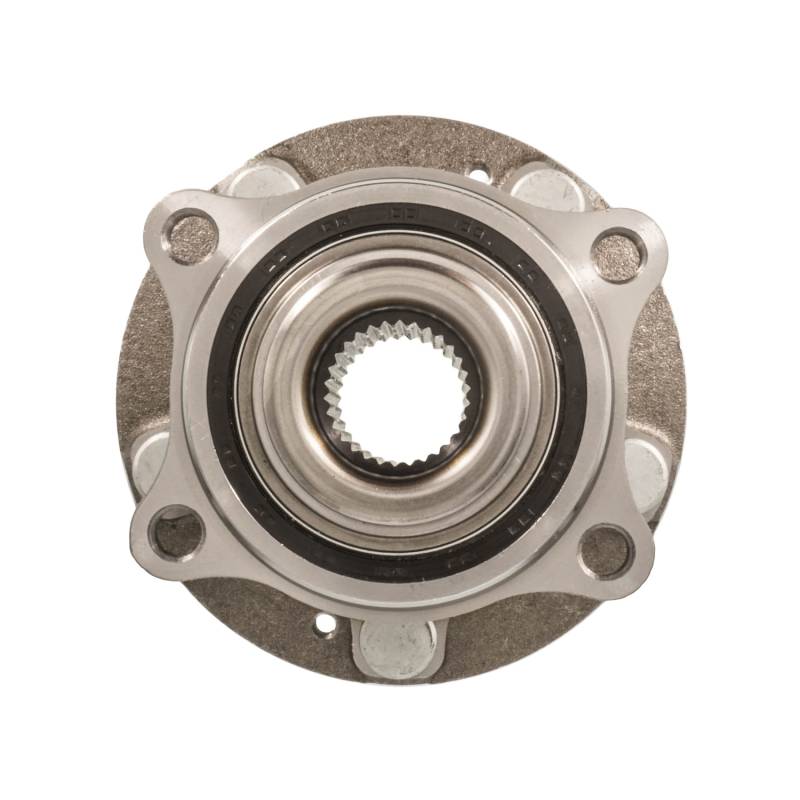

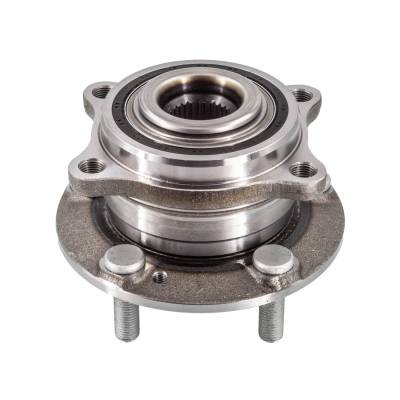

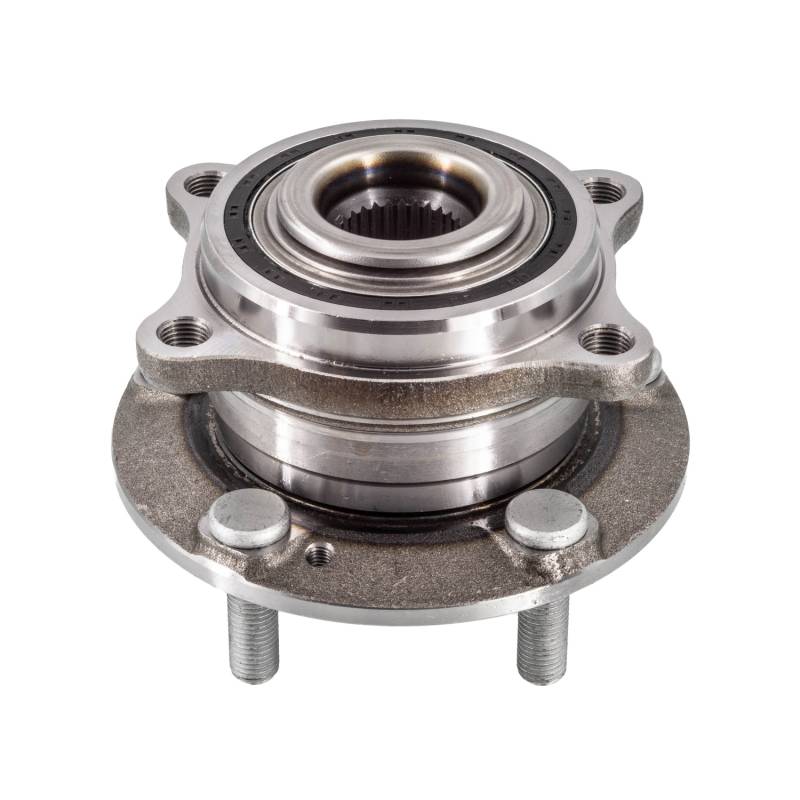

New Hub Assembly Compatible With Kia Sedona 3.3L 2015 2016 2017 2018 2019 2020 2021 By Part Numbers

PT513395-PIO

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $135.59
Sale: $77.48
Save: 43%
Save: $58.11
Qty:
Free Shipping!

Description

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.339
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.715
FLANGE OFFSET (INCH): 2.106
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.488
HUB PILOT DIAMETER (INCH): 3.618
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.488
TOTAL HUB DIAMETER (MM): 139.4
TOTAL HUB HEIGHT (IN): 4.154
TOTAL HUB HEIGHT (MM): 105.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-611913
MOOG HUB ASSEMBLIES: 513395
NAPA: PBR930985

APPLICATIONS:
KIA SEDONA (2015-2021)

Details

  • PT513395-PIO
  • PT513395-PIO
  • Rareelectrical
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 7.9 lbs.
  • W6.5000” x H6.2500” x L6.7500”
