OEM PART NUMBERS:
• Yamaha: 6AW-43880-00-00 / 6AW438800000
• Yamaha: 6AW-43880-01-00 / 6AW438800100
• Yamaha: 6AW-43880-02-00 / 6AW438800200
SPECIFICATIONS:

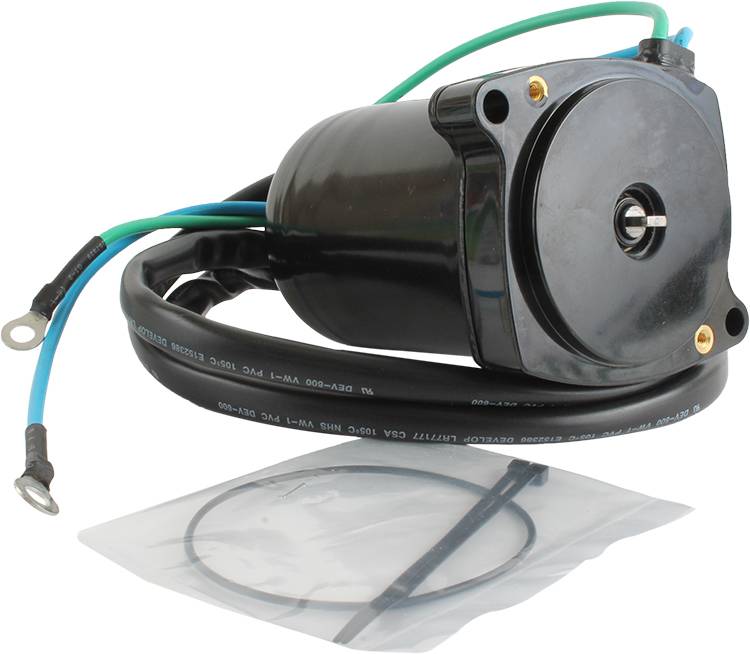

• Product Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Connection: 2-Wire (6.5mm Ring Terminals)
• Mounting: 2-Bolt (7.5mm Mounting Holes)
• Mounting Hole Center-to-Center: 98.5mm
• Mounting Ring: 70mm OD
• Registry OD: 69.8mm
• Shaft Type: 2.5mm Tang Coupler (2.6mm W x 8mm L x 6.5mm T)
• Motor OD: 72.15mm / 2.841 inches
• Shaft OD: 8mm / 0.315 inches
• Overall Length: 139mm / 5.472 inches
• Flange to Rear: 130mm
• O-Ring: 2mm Thick Round
• Includes: Harness and O-Ring
• Weight: 6 lbs
• Condition: New
APPLICATION:
• Yamaha F300 V6 4.2L 300 HP (2006-2018)
• Yamaha LF300 V6 4.2L 300 HP (2006-2018)
• Yamaha F350 V8 5.3L 350 HP (2006-2018)
• Yamaha FL350 V8 5.3L 350 HP (2006-2018)
• Yamaha LF350 V8 5.3L 350 HP (2006-2018)
