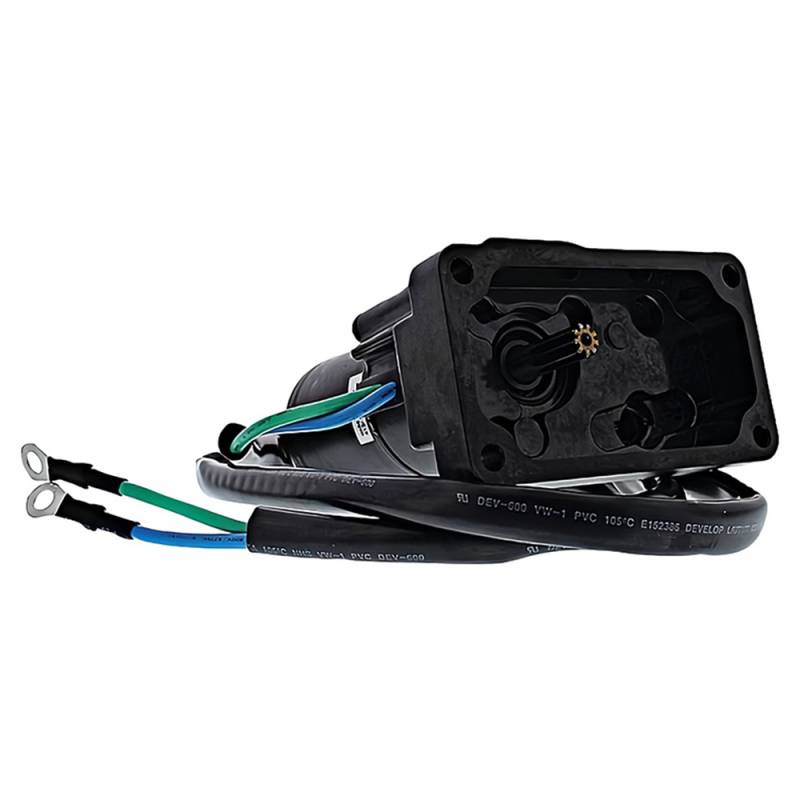

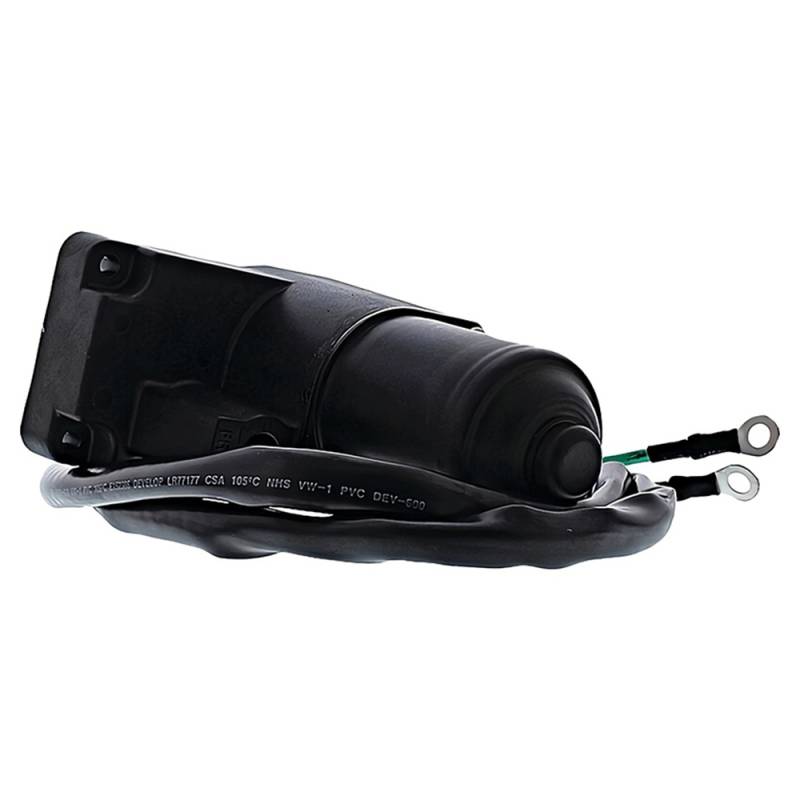

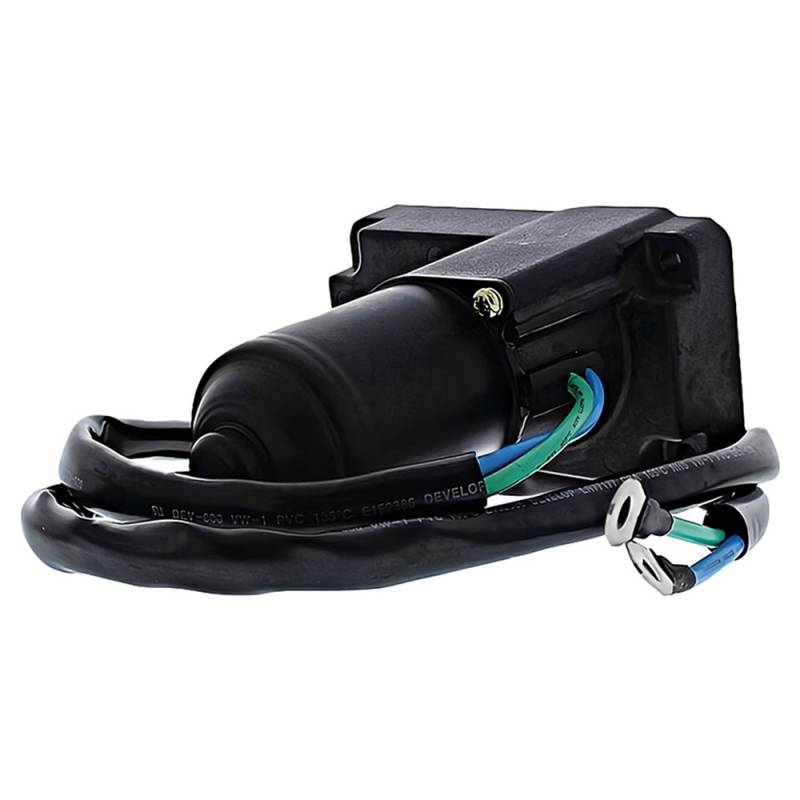

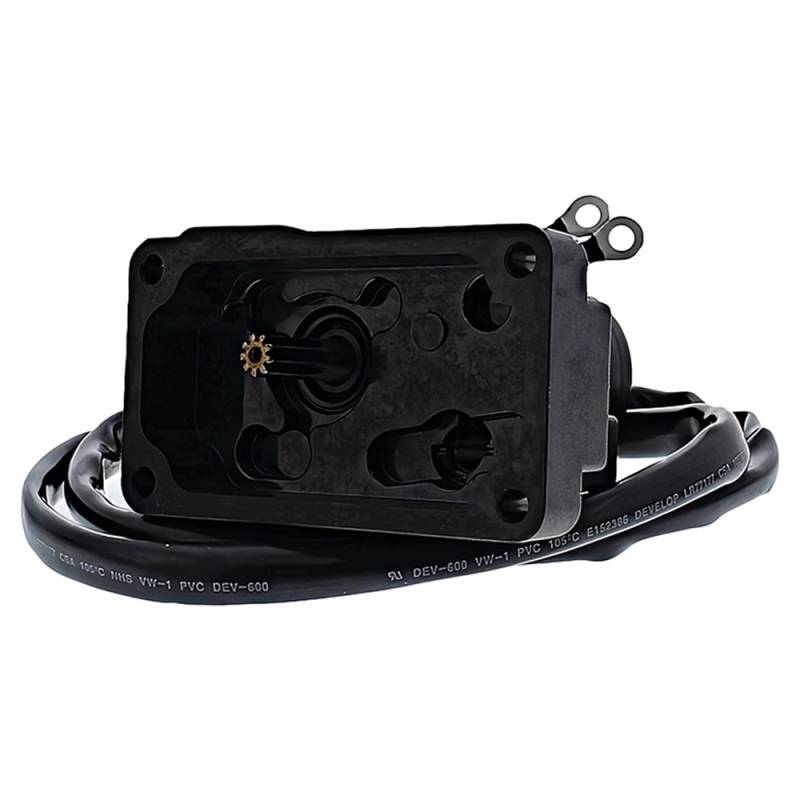

12V Tilt Trim Motor Compatible With 69G-43880-01-00 T8plh T8pxh T9.9Gplh T9.9Lpb 8Hp 9.9Hp High

OEM PART NUMBERS:
• 69G-43880-00-00
• 69G-43880-01-00
• 18-6779
• 6261
• PT495NM

SPECIFICATIONS:
• Type: Tilt & Trim Motor
• Voltage: 12V
• Shaft Type: 4-Spline
• Number of Wires: 2
• Wire Colors: Blue + Green
• Connection Type: Ring Terminals (6.4mm ID)
• Mounting Holes: 4 (5.6mm OD)
• Mounting Hole Spacing: 93.8mm & 45.8mm C-to-C
• Shaft OD: 8.7mm
• Overall Length: 134.5mm
• Motor Length: 67mm (Mtg. to Back of CE)
• Case OD: 47.2mm
• Cord Length: 40 Inches
• O-Ring Included: Yes
• Condition: New

ENGINE FITMENT:
• 8HP 4-Stroke High Thrust (T8 Series)
• 9.9HP 4-Stroke High Thrust (T9.9 Series)
• Years: 2001-2024

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
