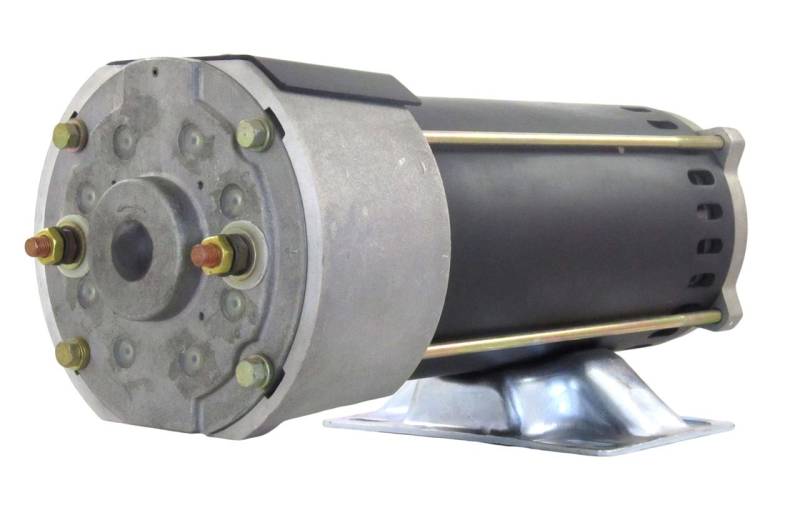

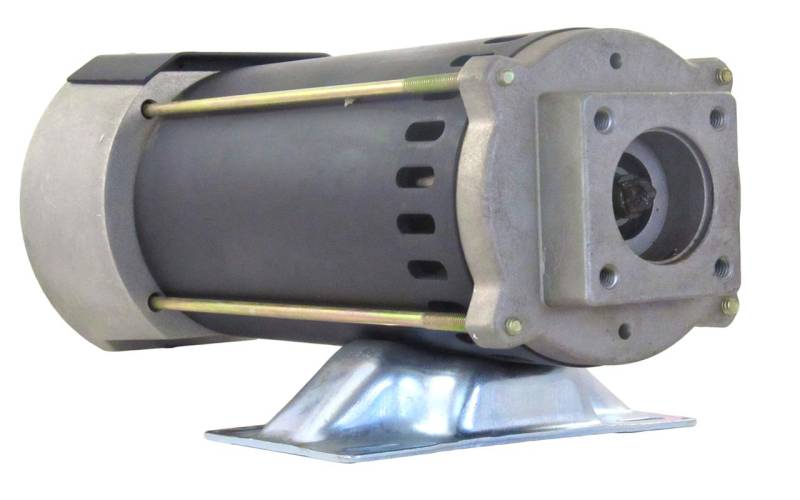

New Motor Compatible With Haldex-Barnes Aerial Scissor Lift 106576 W-2273 4Bd-02273 Sj-106576

SCOTT MOTORS: 2200856 2200945 4BD-02273
SKYJACK: 106576 220856 SJ-106576
WESTERN MOTOR: W-2273

ITEM DESCRIPTION: ELECTRIC MOTOR
UNIT TYPE: JS BARNES
VOLTAGE: 24
AMPERAGE: 150
ROTATION: CLOCKWISE
SHAFT OUTSIDE DIAMETER: 15 MM
SHAFT NOTES: CHRYSLER COUPLER TYPE
TERMINAL 1 SIZE: 5/16-24
TERMINAL 2 SIZE: 5/16-24
OVERALL LENGTH: 370 MM / 14.567 IN
SPECIFICATIONS: 114.3 MM / 4.500 IN
NOTES: DE HOUSING DRILLED FOR (4) 1 / 4-20 MOUNTING HOLES, 4HP
WEIGHT: 34 LBS

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
