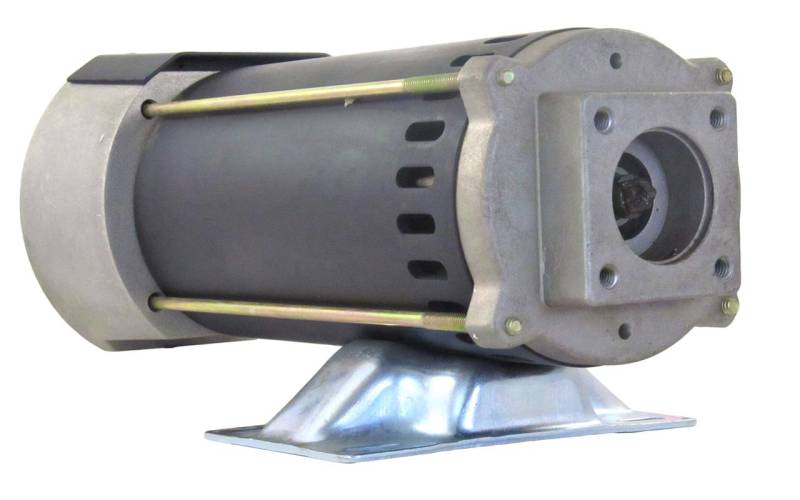

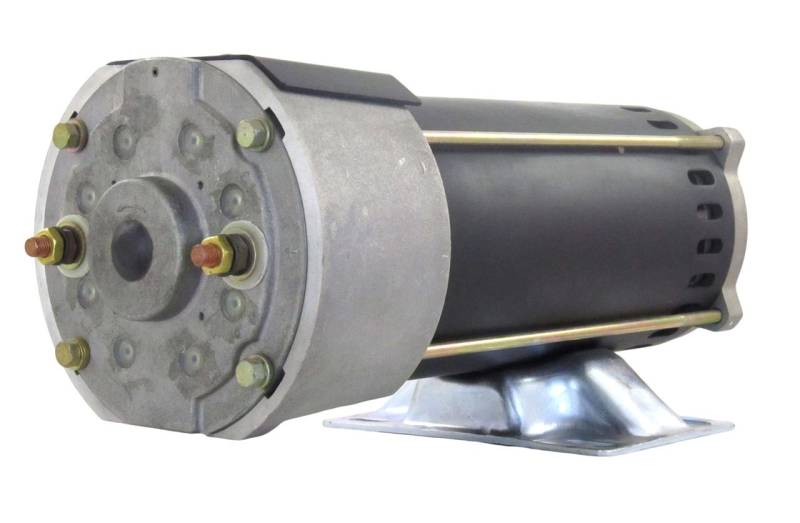

New Motor Compatible With Haldex-Barnes Aerial Scissor Lift 2200856 2200856 2200945 4Bd-02273 106576

SCOTT MOTORS 2200856, 2200945, 4BD-02273
SKYJACK 106576, 220856, SJ-106576
WESTERN MOTOR W-2273

UNIT TYPE SCOTT, J.S. BARNES
VOLTAGE 24
AMPS 150
ROTATION CW
FIELD HSG OD 114.3MM / 4.500IN
OVERALL LENGTH 370MM / 14.567IN
SHAFT OD 15MM / 0.591IN
SHAFT NOTES CHRYSLER COUPLER TYPE
TERMINAL 1 SIZE 5/16-24
TERMINAL 2 SIZE 5/16-24
NEW OR REMANUFACTURED NEW
APPROXIMATE WEIGHT 31.4 LBS / 14.27 KG

NOTES:
DE HOUSING DRILLED FOR (4) 1/4-20 MOUNTING HOLES, 4HP
