HELLA: 8EL 737 061-001 8EL737061001
HITACHI: LR155-20 LR18003C LR155-20B LR18003 LR180-03B LR18003A
PRESTOLITE: 20150112
SIERRA MARINE: 18-6927 186929 186278
YANMAR: 129772-77200 12947077200 119573-77201 11957377200

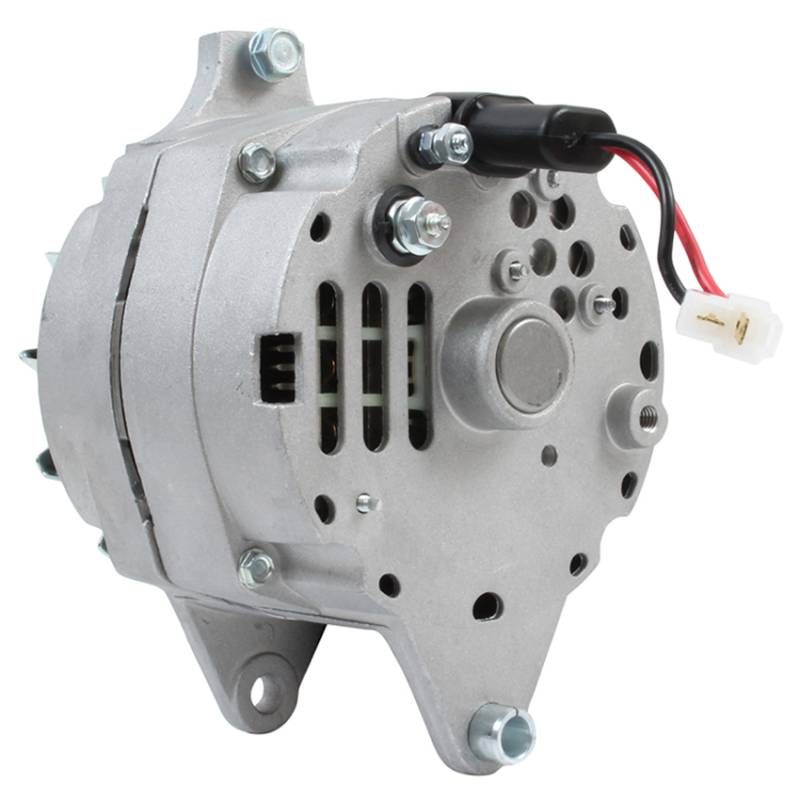

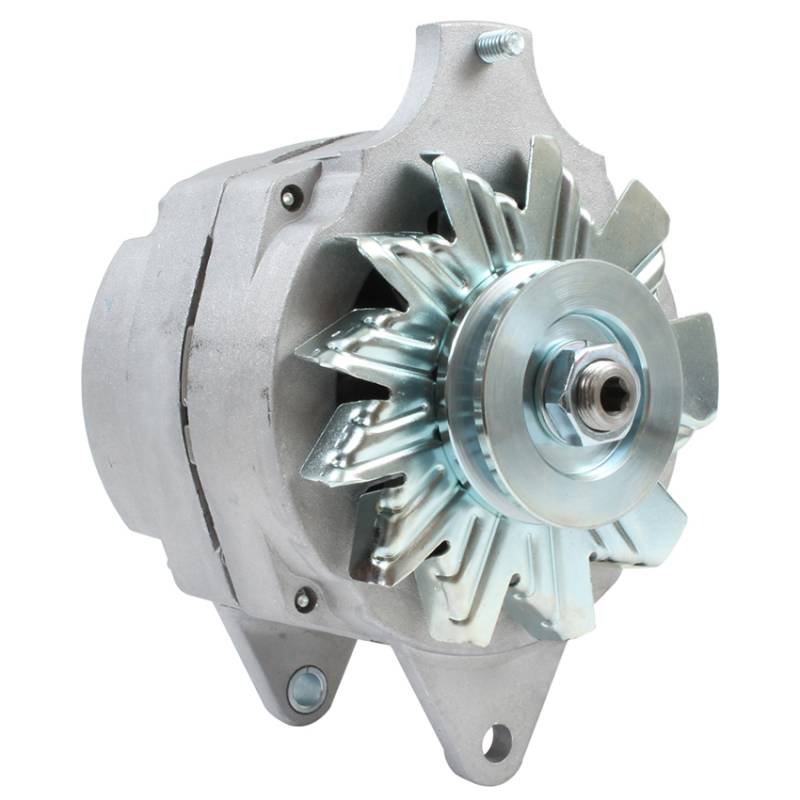

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: YANMAR
VOLTAGE: 12
AMPERAGE: 120
FAN: EXTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 1
PULLEY TYPE: SOLID
PULLEY OD: 2.618IN / 66.5MM
MOUNTING EAR 1 HOLE: 5/16-18 THREADED
MOUNTING EAR 2 HOLE: 10MM UNTHREADED
MOUNTING EAR 3 HOLE: 10MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.476IN / 12.1MM
MOUNTING EAR 2 THICKNESS: 0.374IN / 9.5MM
MOUNTING EAR 3 THICKNESS: 0.787IN / 20MM
IGN TERMINAL: BLADE
L TERMINAL: BLADE
POLARITY: NEGATIVE
SPECIFICATIONS: NEGATIVE GROUND
SPECIFICATIONS: 10SI REPLACEMENT TYPE
WEIGHT: 12.43 LBS / 5.65 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REPLACES HITACHI UNITS ON YANMAR MARINE APPLICATIONS.
THIS ALTERNATOR IS 120 AMPS.
NOTE: ORIGINAL HITACHI UNIT HAS ISOLATED GROUND
THIS ALTERNATOR IS NEGATIVE GROUND. THERE IS NO NEED FOR GROUND CABLE TO OPERATE.
YANMAR ENGINE - MARINE 4LH-DTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LH-HTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LH-STE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LH-TE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LHA-DTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LHA-DTZ 4CYL DIESEL
YANMAR ENGINE - MARINE 4LHA-HTE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LHA-HTZE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LHA-STE 4CYL DIESEL
YANMAR ENGINE - MARINE 4LHA-STZE 4CYL DIESEL
YANMAR ENGINE - MARINE 6LY-ST 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-STE 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-STM 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-STZY 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-UT 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-UTE 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-UTM 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY-UTZY 6CYL DIESEL
YANMAR ENGINE - MARINE 6LY2-STE 6CYL DIESEL
YANMAR ENGINE - MARINE 6LYA-STE 6CYL DIESEL
YANMAR ENGINE - MARINE 6LYA-UTE 6CYL DIESEL
YANMAR ENGINE - MARINE 6LYM-STE 6CYL DIESEL
YANMAR ENGINE - MARINE 6LYM-UTE 6CYL DIESEL
YANMAR ENGINE - MARINE 6PH 6CYL DIESEL
YANMAR ENGINE - MARINE 6PH-HTZY 6CYL DIESEL
YANMAR ENGINE - MARINE 6PHM-HTE 6CYL DIESEL
YANMAR ENGINE - MARINE 6PHM-HTZ 6CYL DIESEL
YANMAR ENGINE - MARINE 6PHM-TZ 6CYL DIESEL
YANMAR ENGINE - MARINE 6PHS-HTPS 6CYL DIESEL
YANMAR ENGINE - MARINE 6PHS-TPS 6CYL DIESEL
YANMAR ENGINE - MARINE KBW-20
YANMAR ENGINE - MARINE KBW-21
YANMAR ENGINE - MARINE KM2C
YANMAR ENGINE - MARINE KM2P
YANMAR ENGINE - MARINE KM3A
YANMAR ENGINE - MARINE KM3P
YANMAR ENGINE - MARINE KM3V
YANMAR ENGINE - MARINE KM5A
YANMAR ENGINE - MARINE UJH2E
YANMAR ENGINES - INDUSTRIAL 4JM-7Z ALL
