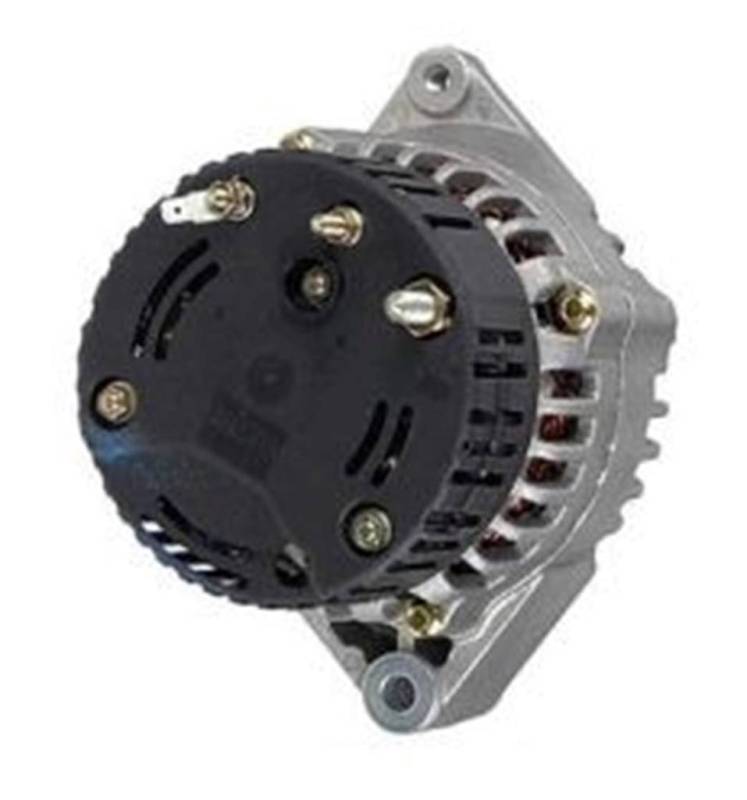

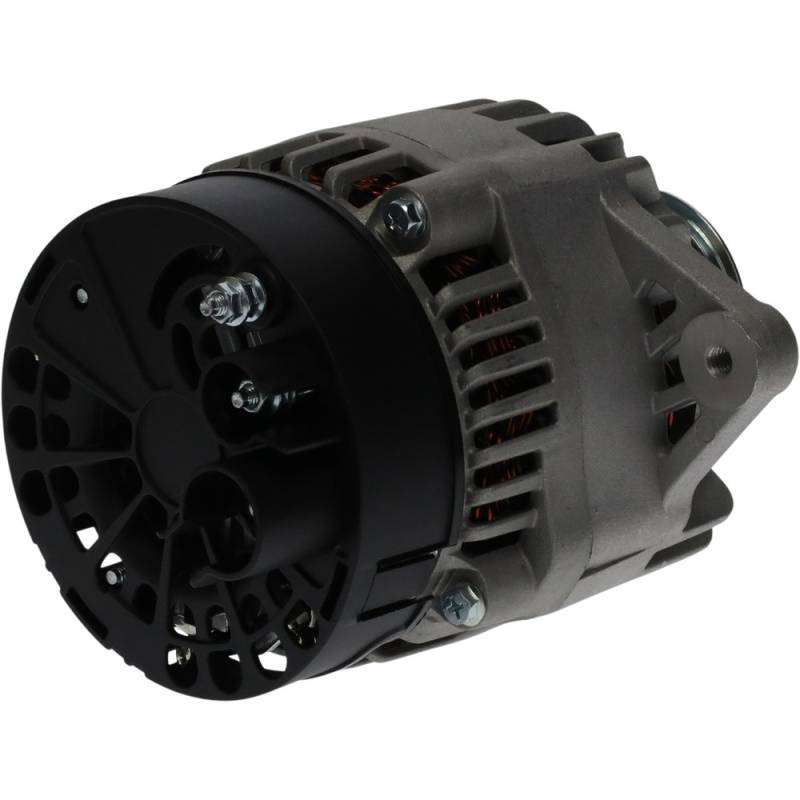

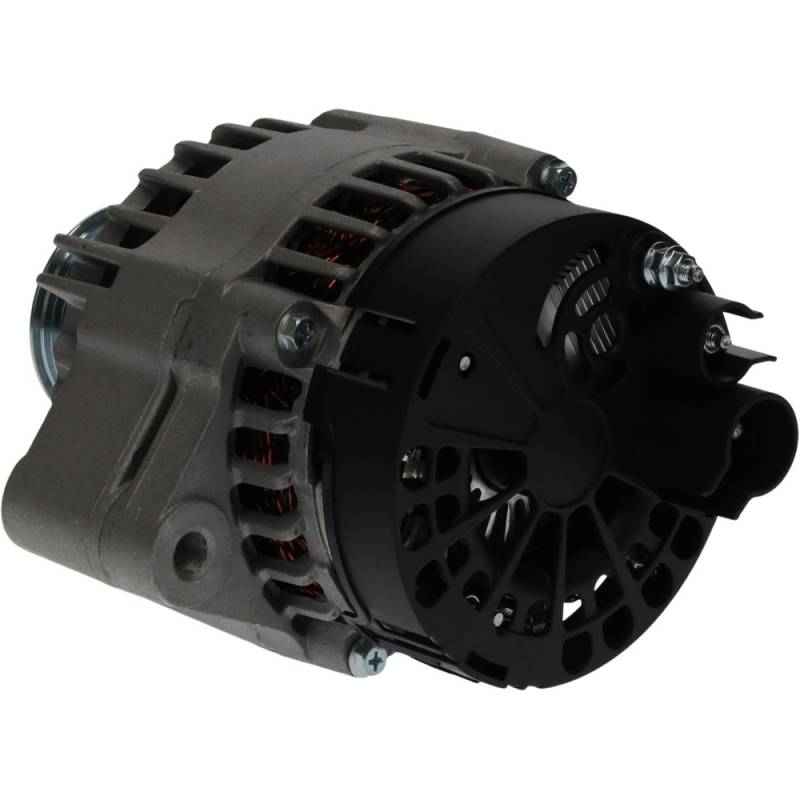

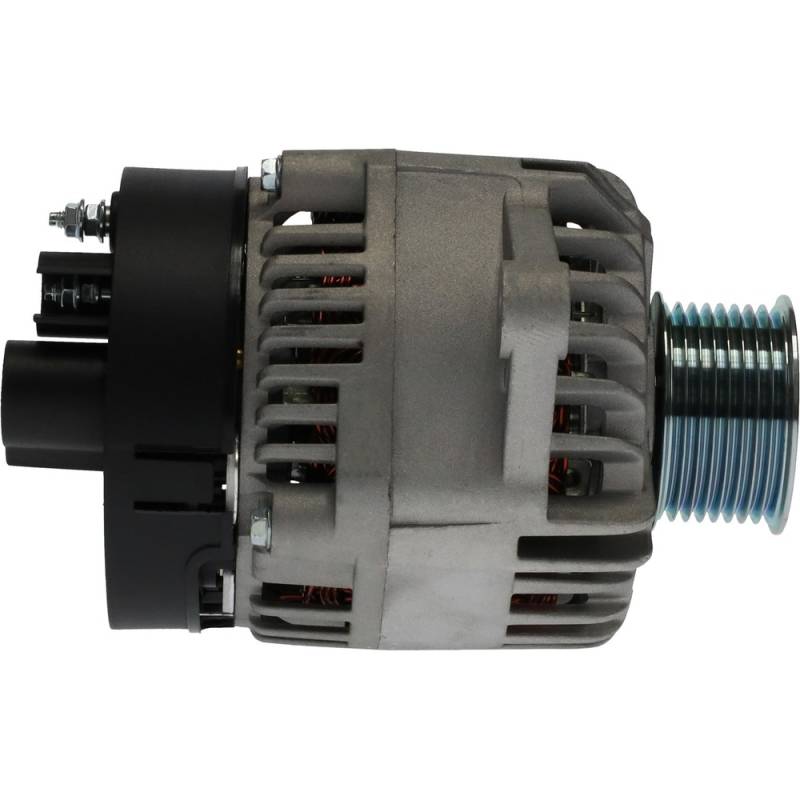

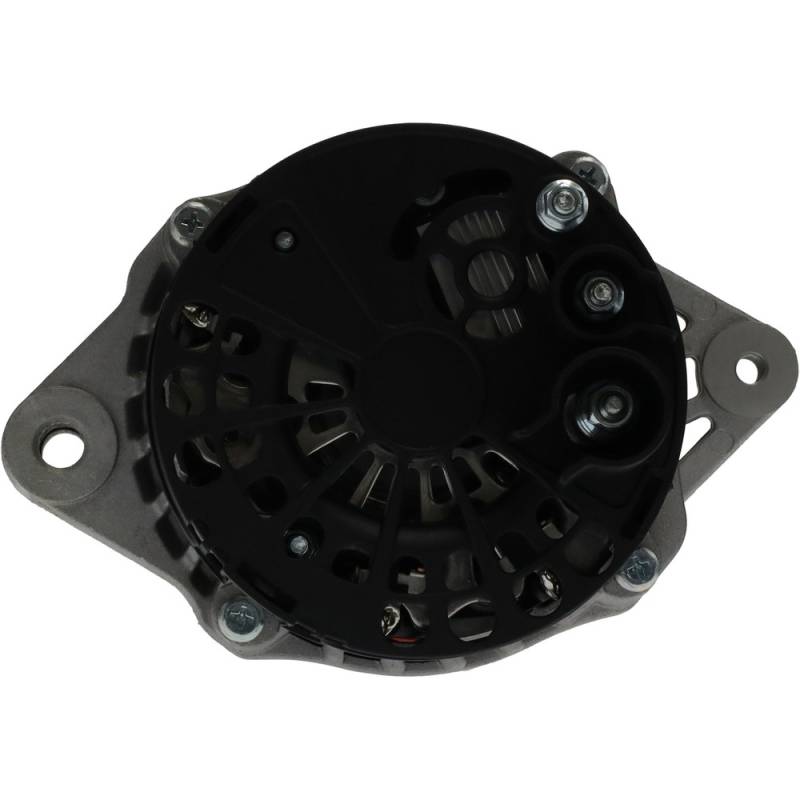

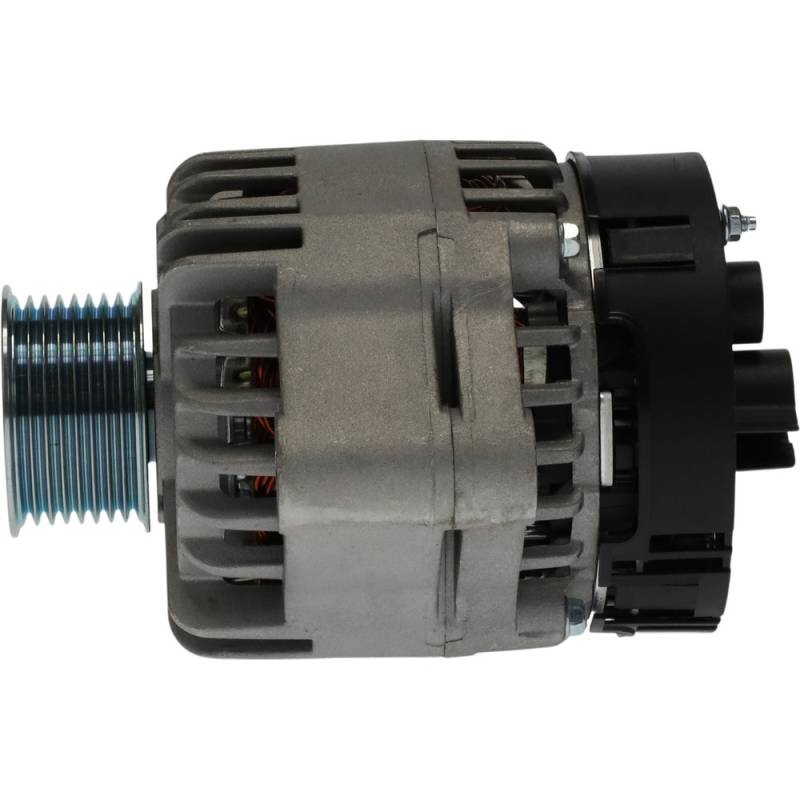

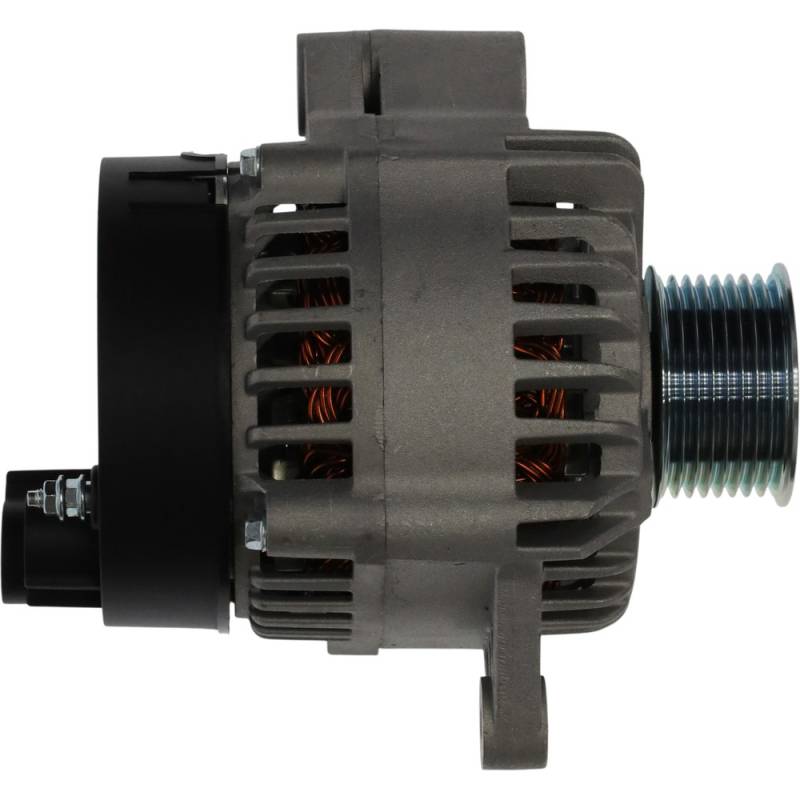

New 12V 105A Alternator Cw 8-Groove Pulley Compatible With Caterpillar Th560b Th580b Telehandler

ALTERNATOR 12V 105 Amp CW S8 — CATERPILLAR TH TELEHANDLER 3054E:

TWO CHECKS BEFORE YOU BUY:
• Output: 105 Amp clockwise
• Mount: spool mount
• Pulley: eight groove serpentine solid
• Case number: 207-6036 206-5501 20R-3854 or 63321914
• Caterpillar also fitted a 90 Amp DIN mount unit to this range

CATERPILLAR TH200 AND TH300 SERIES:
• Caterpillar TH220B Telehandler 3054E 4.4L 269 CID (2004-2007)
• Caterpillar TH330B Telehandler 3054E 4.4L 269 CID (2004-2007)
• Caterpillar TH340B Telehandler 3054E 4.4L 269 CID (2003-2007)
• Caterpillar TH350B Telehandler 3054E 4.4L 269 CID (2003-2007)
• Caterpillar TH355B Telehandler 3054E 4.4L 269 CID (2003-2007)
• Caterpillar TH360B Telehandler 3054E 4.4L 269 CID (2003-2007)

CATERPILLAR TH400 AND TH500 SERIES:
• Caterpillar TH460B Telehandler 3054E 4.4L 269 CID (2003-2007)
• Caterpillar TH560B Telehandler 3054E 4.4L 269 CID (2004-2007)
• Caterpillar TH580B Telehandler 3054E 4.4L 269 CID (2004-2007)
• Caterpillar lists nine TH series B machines on one alternator

THE ENGINE:
• Caterpillar 3054E — 4.4L 269 CID four cylinder diesel
• Turbocharged direct injection
• The 3054 family derives from the Perkins 1004 platform
• Later 3054C and 3054E variants cross to the Perkins 1104
• Every TH series B machine in this range runs the 3054E
• The engine suffix does not change the alternator

OEM PART NUMBERS:
• Caterpillar: 207-6036 / 2076036
• Caterpillar: 206-5501 / 2065501
• Caterpillar Reman: 20R-3854 / 20R3854
• Marelli: 63321914 • Marelli Catalogue: A1151
• The 20R prefix marks a Caterpillar Reman unit

MOUNT AND OUTPUT — READ THIS FIRST:
• This unit is 105 Amp on a spool mount
• Caterpillar also fitted a 90 Amp unit on a DIN mount
• Both carry a 207-60 number one digit apart
• The two have different amperage and different mounting
• Read the amperage and the mount on your original

CONSTRUCTION:
• 12 pole rotor with a brush type design
• Internal regulator and internal fan
• Clock position 11 o'clock

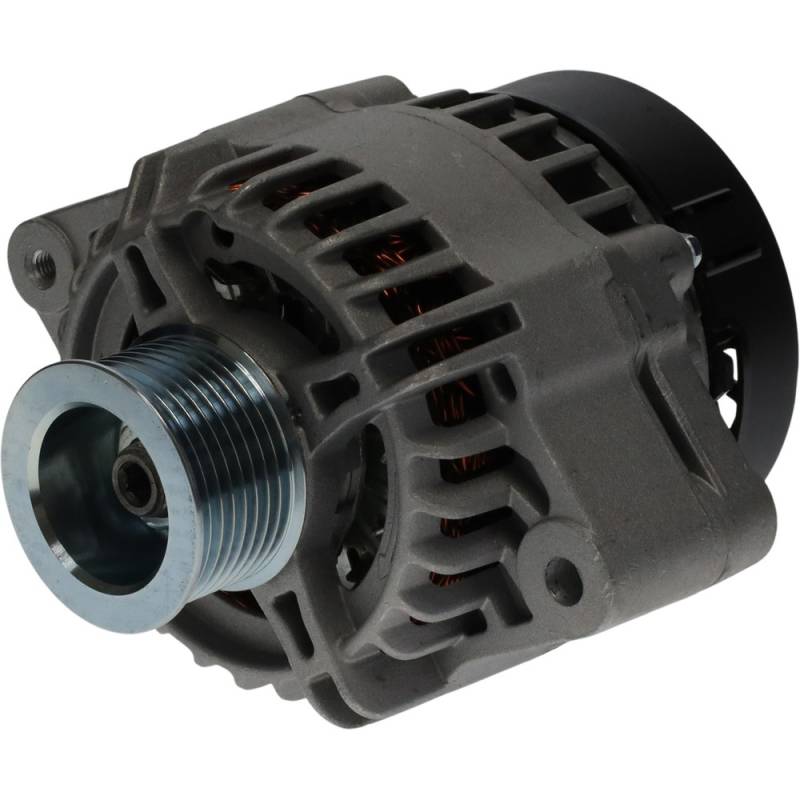

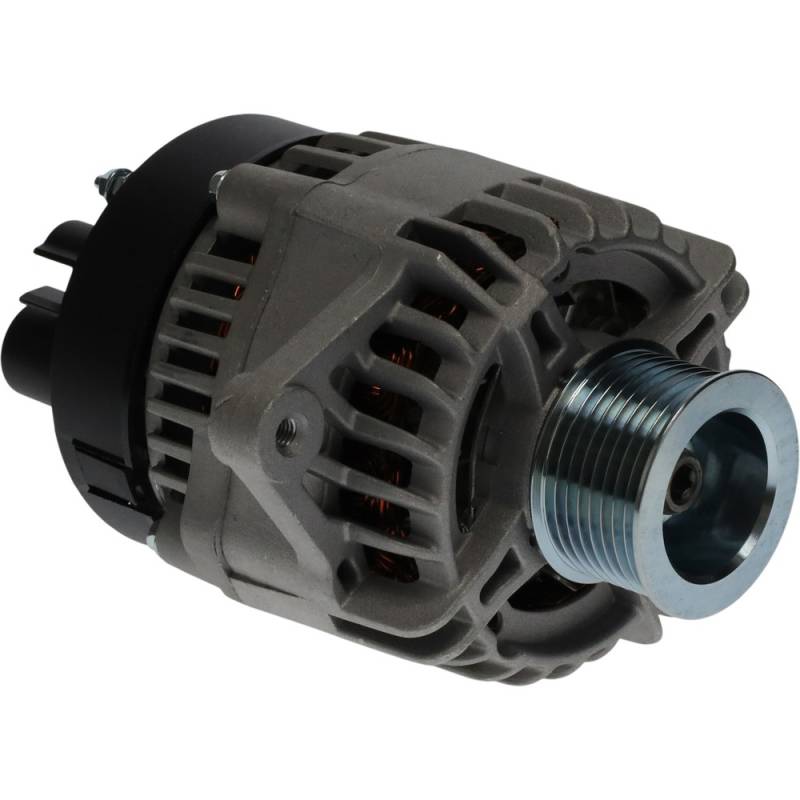

• Eight groove serpentine solid pulley
• Negative ground

THE REMAN NUMBER:
• Caterpillar Reman 20R-3854 is the reman of this 105 Amp unit
• The 20R prefix marks a Caterpillar Reman unit
• 206-5501 is cross-listed with 207-6036 by Cat parts sellers
• All of these describe one alternator

HOW TO VERIFY FIT:
• Match 207-6036 206-5501 20R-3854 or 63321914 on your original
• Count eight grooves on the pulley
• Confirm 105 Amp and a spool mount
• Confirm the 3054E badge on the engine

WHAT THIS UNIT IS:
• Output: 12 Volt 105 Amp clockwise
• Mount: Spool mount with an 8-groove solid pulley
• Regulator: Internal • Fan: Internal • Poles: 12
• Case number: 207-6036 206-5501 20R-3854 or 63321914
• Engine: Caterpillar 3054E 4.4L 269 CID
• Machines: Caterpillar TH series B telehandlers
