LEECE-NEVILLE / PRESTOLITE PART NUMBERS: • M105R3502SE, M105R3502
• M105702
• M1057022A, M105R3502SE2A
• 7400M
• M0017400ME
DELCO REMY PART NUMBERS: • 19011507
• 8200709
• 8200724
• 8200330
• 8200725
• 8200321
WILSON PART NUMBERS: • 91-01-4606, 91014606
OTHER OE PART NUMBERS: • Perkins CH12807
• Caterpillar 207-1564, 2071564
• Cummins 3103305

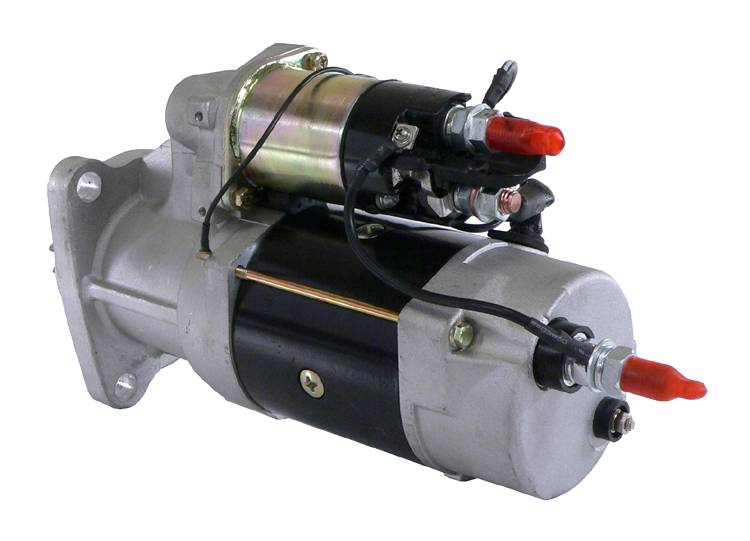

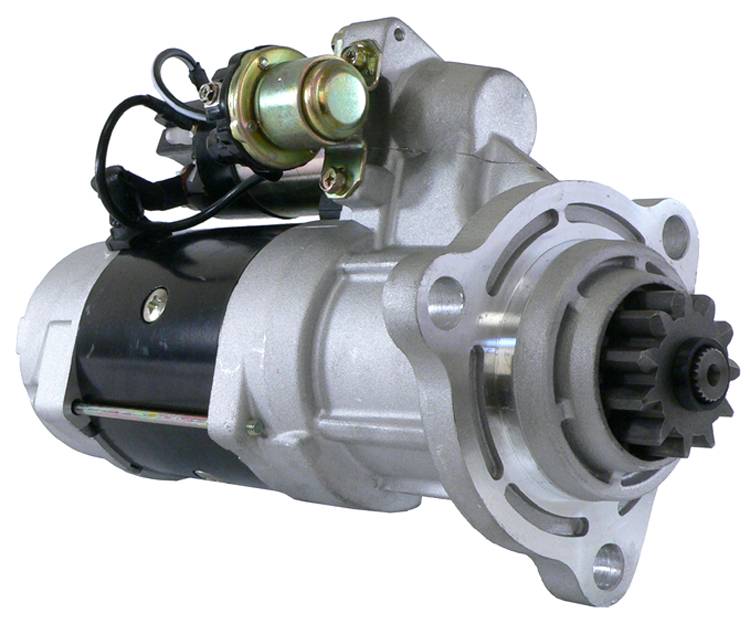

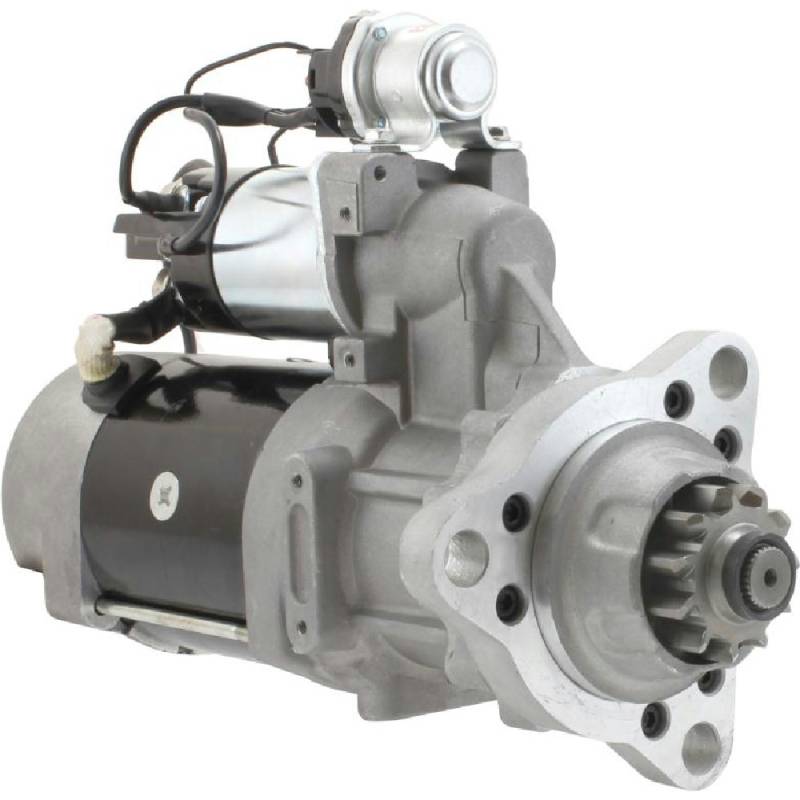

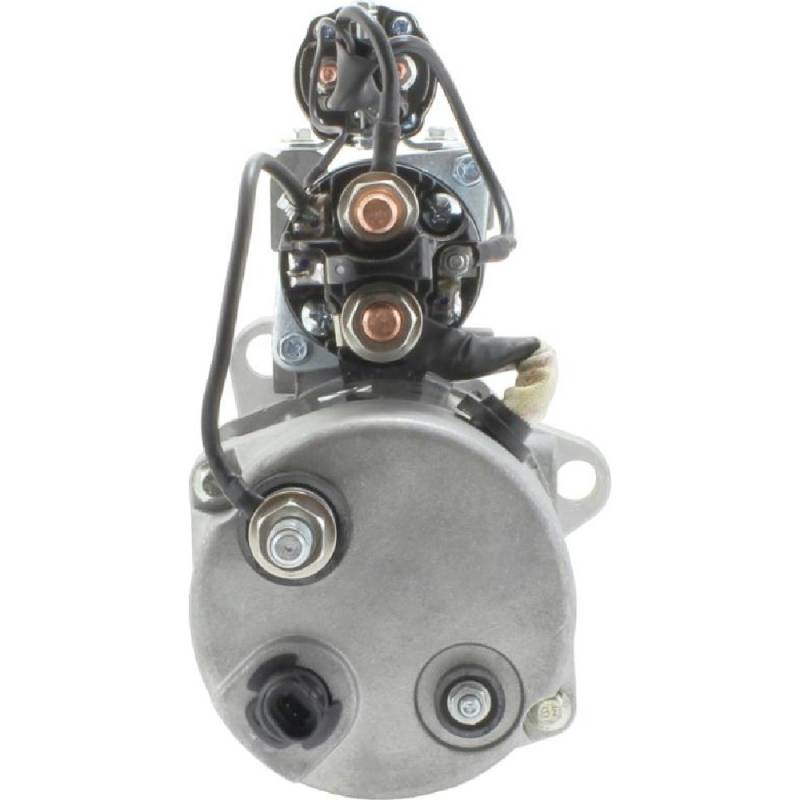

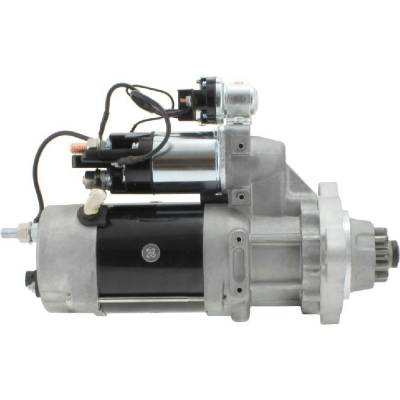

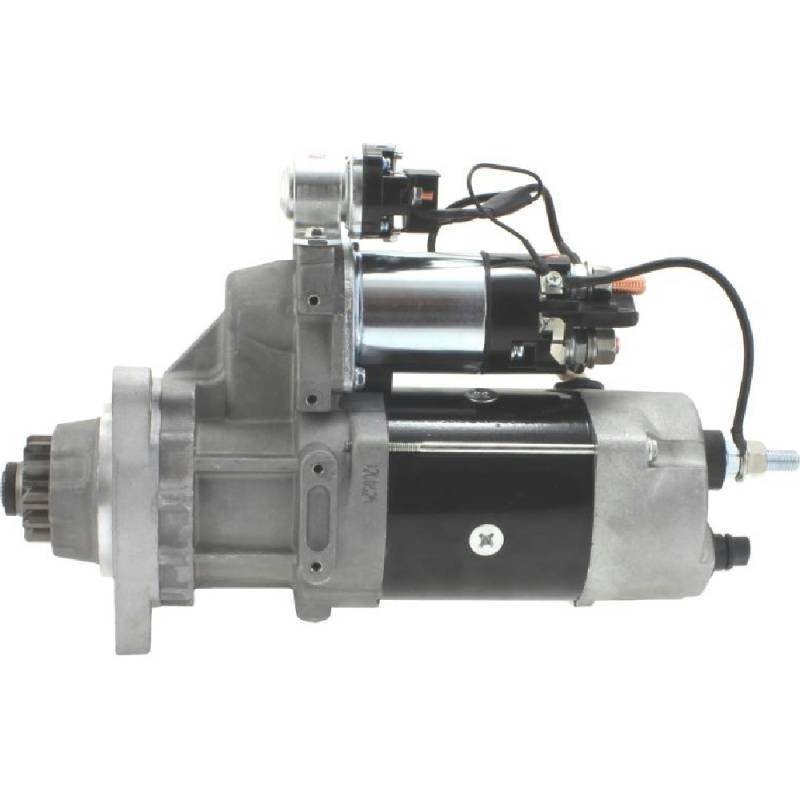

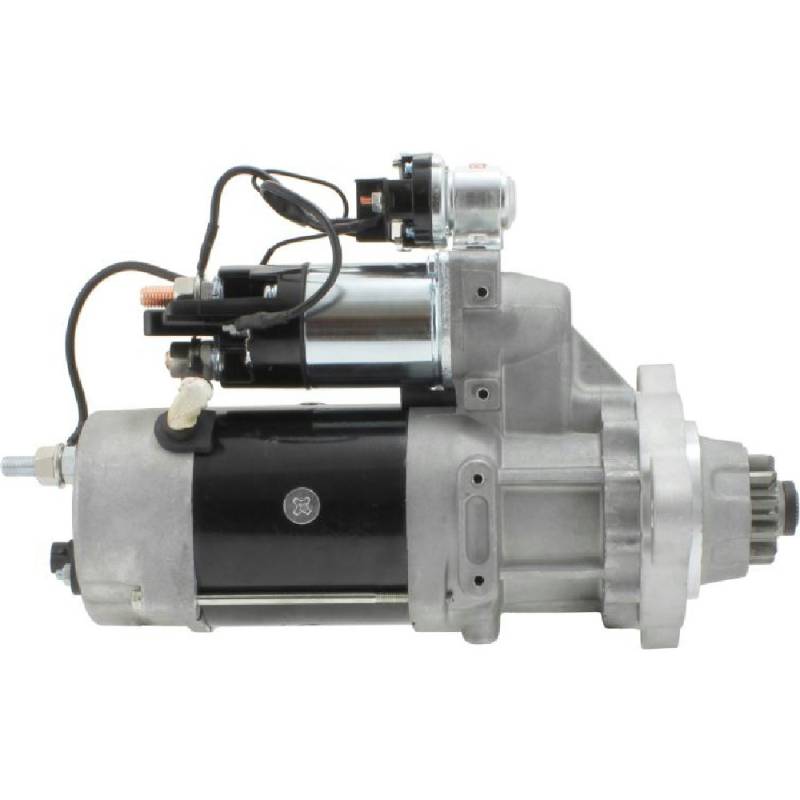

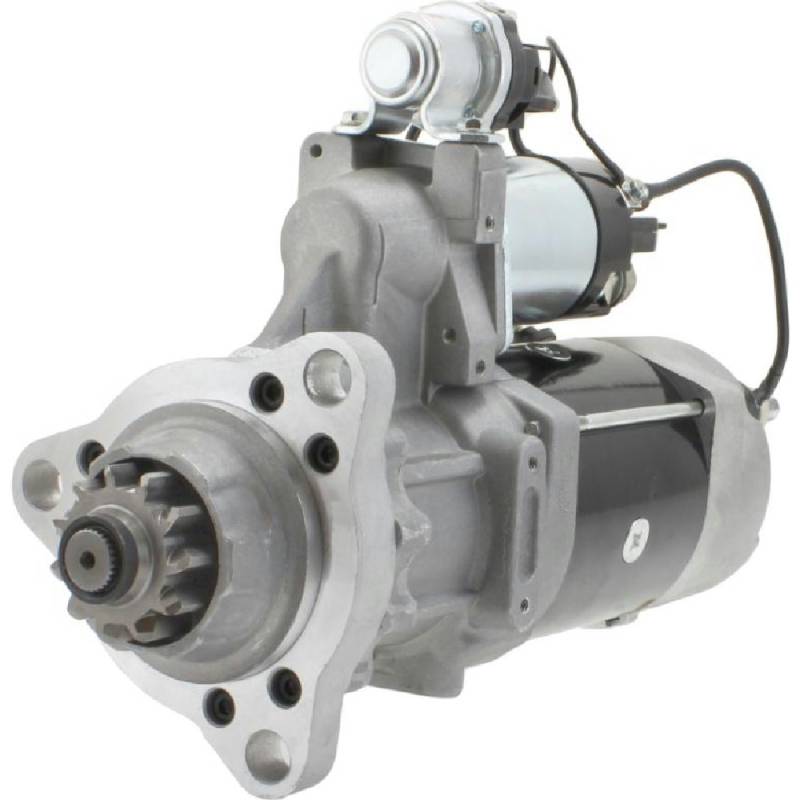

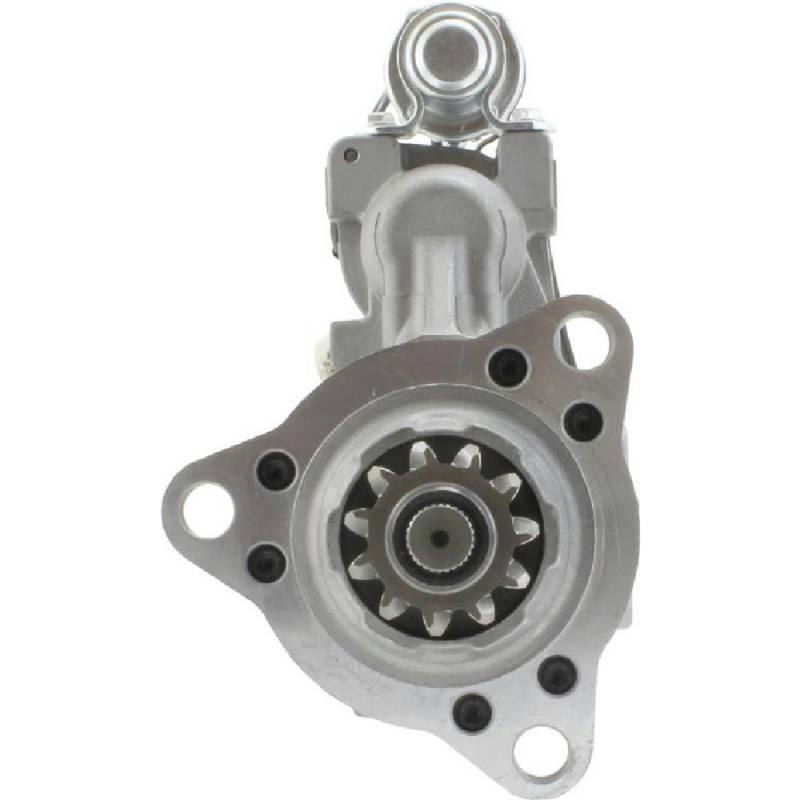

SPECIFICATIONS: • Family: Delco 39MT type
• Type: PLGR (planetary gear reduction)
• Voltage: 24 Volt
• Power: 8.3 kW
• Rotation: Clockwise (CW)
• Case: insulated (insulated return)
• Pinion: 11 teeth, 6/8 pitch, 2.185 in (55.5 mm) OD
• Nose: open nose
• Flange: re-clockable SAE 3, 3 mounting bolt holes, 16.7 mm unthreaded
• Solenoid: 82 degrees as shipped, adjustable with the flange
• Integrated magnetic switch (IMS): yes
• Over-crank protection (OCP): yes
• Soft start, positive engagement
• Weight: 32.3 lb (14.68 kg)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
