BOSCH PART NUMBERS: • 0001510014, 0 001 510 014
• 0001510017, 0 001 510 017
• 0986011590, 0 986 011 590
• 0001510008, 0 001 510 008
• 0001510021, 0 001 510 021
• BX510017
DEUTZ / KHD PART NUMBERS: • 0116 3556, 01163556, 1163556
• 0118 3039, 01183039
• 01183697, 0118 3697
• 1162509, 01162509, 116-2509
• 1162508, 01162508, 116-2508
• 1164274, 01164274, 116-4274
• E3R24X9H7622, E3R-24X9-H7622
• E2R24X9H7622, E2R-24X9-H7622
LETRIKA / ISKRA PART NUMBERS: • 11.131.872, 11131872
• IS1210, IS 1210
• AZG4654
• 11.131.587, 11131587
OTHER PART NUMBERS: • Magneti Marelli MSR744
• Delco Remy 19024801
• Delco Remy DRS1590
• Wilson 91-15-6947, 91156947
• Lucas LRS00959
• Lucas LRS959
• Lucas S0861
• Prestolite 861043
• Faun 1701051
• Liebherr 6290033

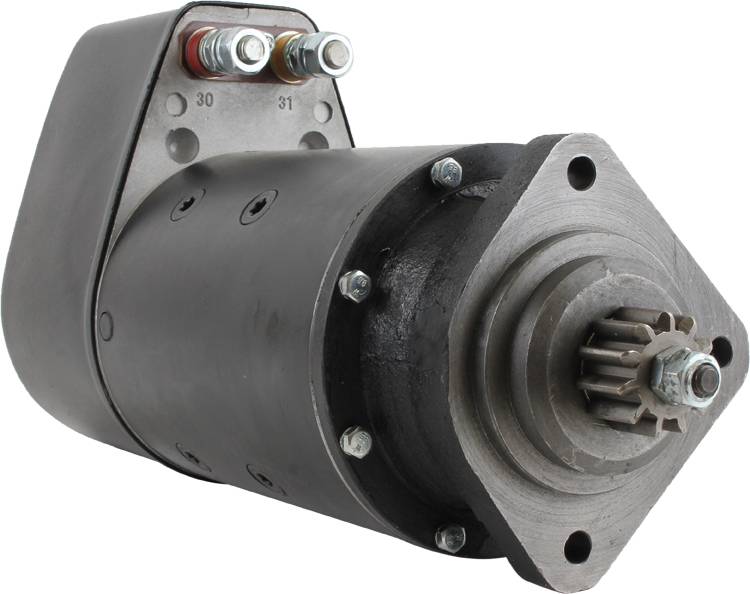

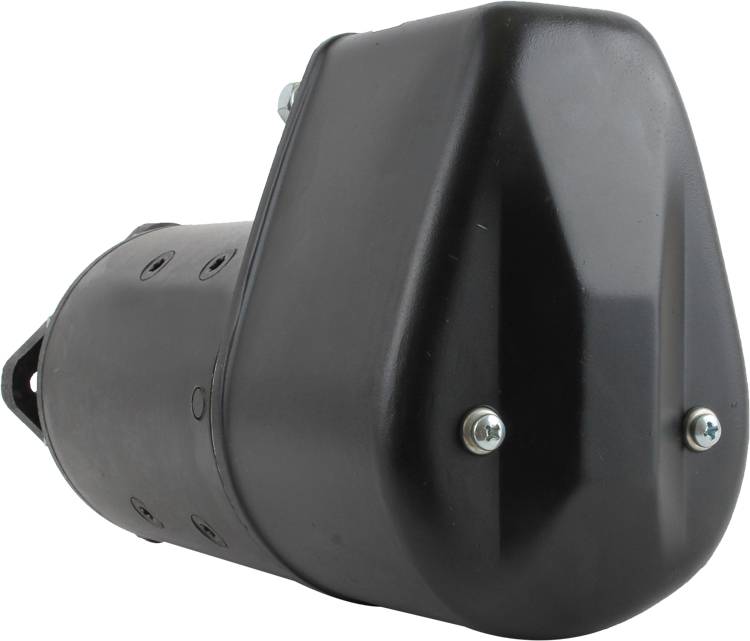

SPECIFICATIONS: • Type: Bosch QB type direct drive (DD)
• Voltage: 24 Volt
• Power: 9.0 kW
• Rotation: Clockwise (CW)
• Pinion: 11 teeth, 40.7 mm (1.602 in) OD
• Flange: 89 mm, three 11 mm unthreaded mounting holes spaced 90 / 90 / 127 mm
• Pinion position: 48 mm from the flange
• Battery stud: M12
• Overall length: 458 mm
• Weight: 64.1 lb (29.14 kg)
• Condition: New
