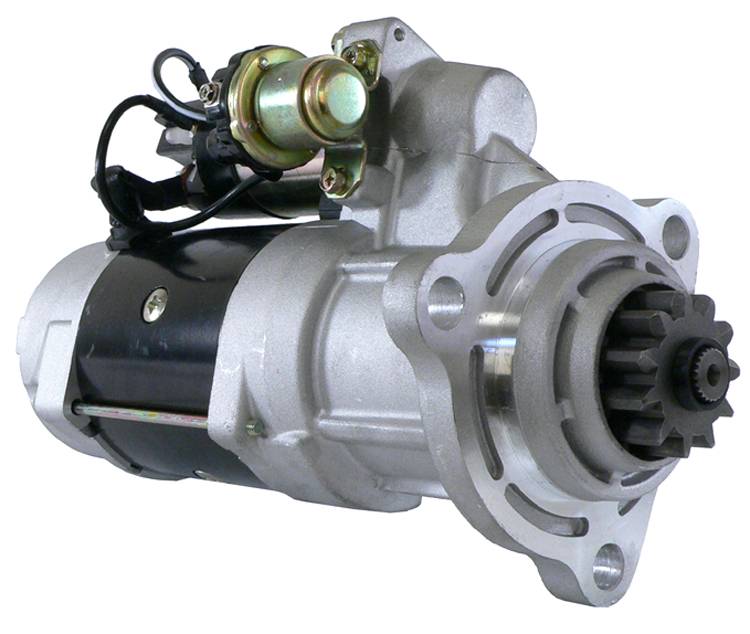

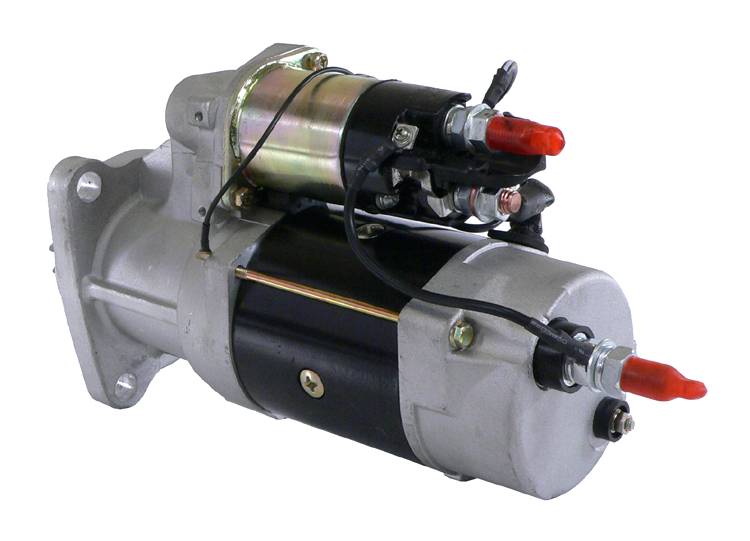

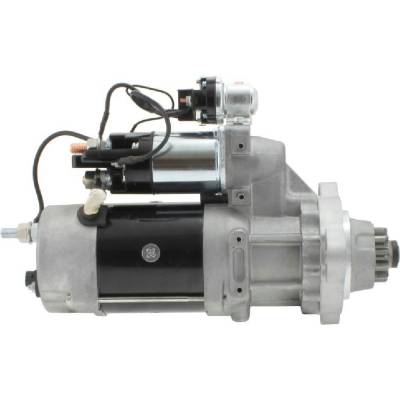

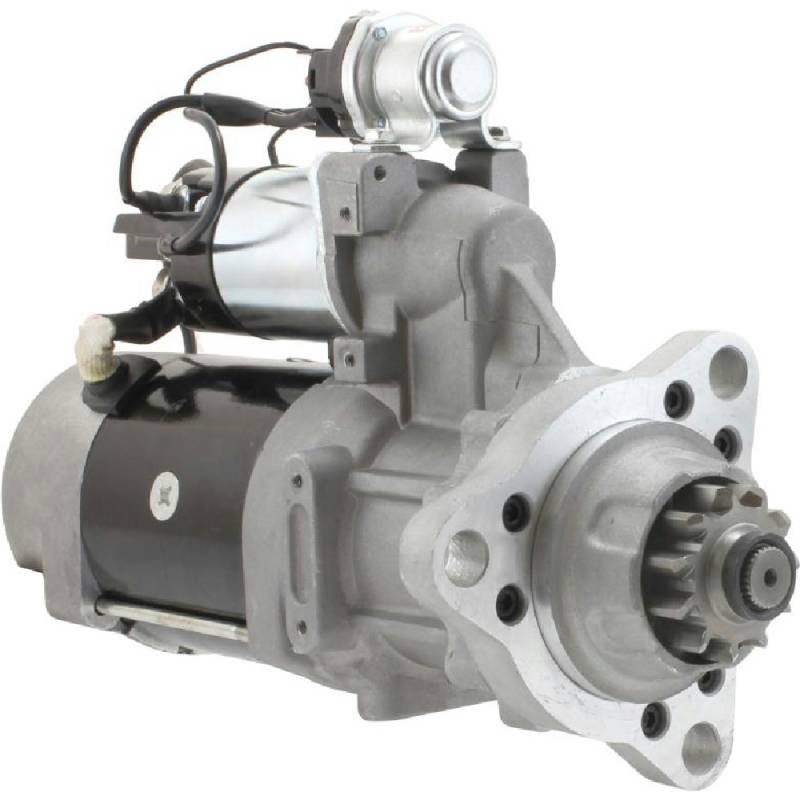

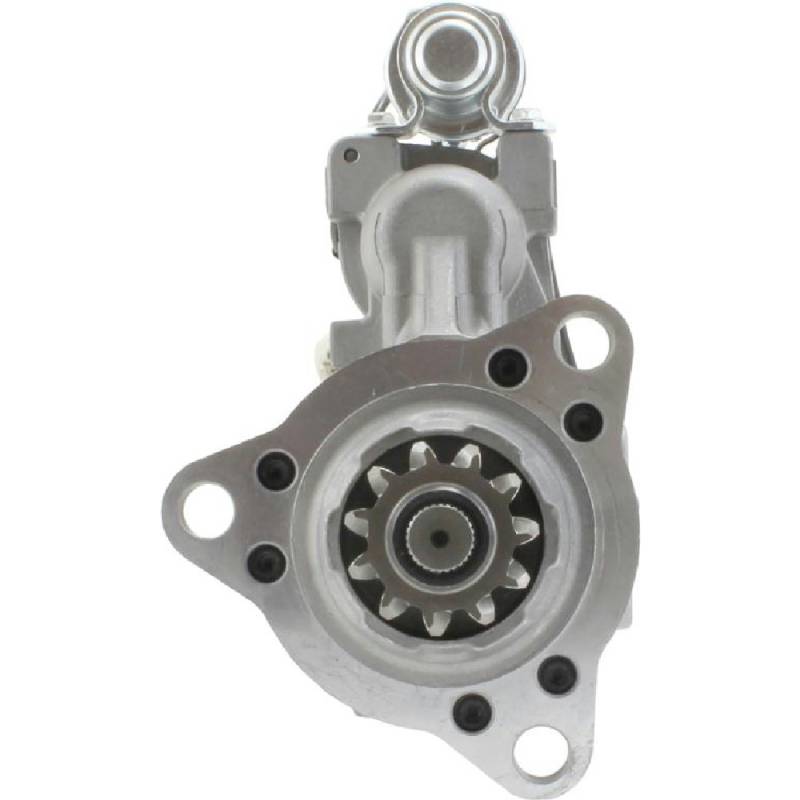

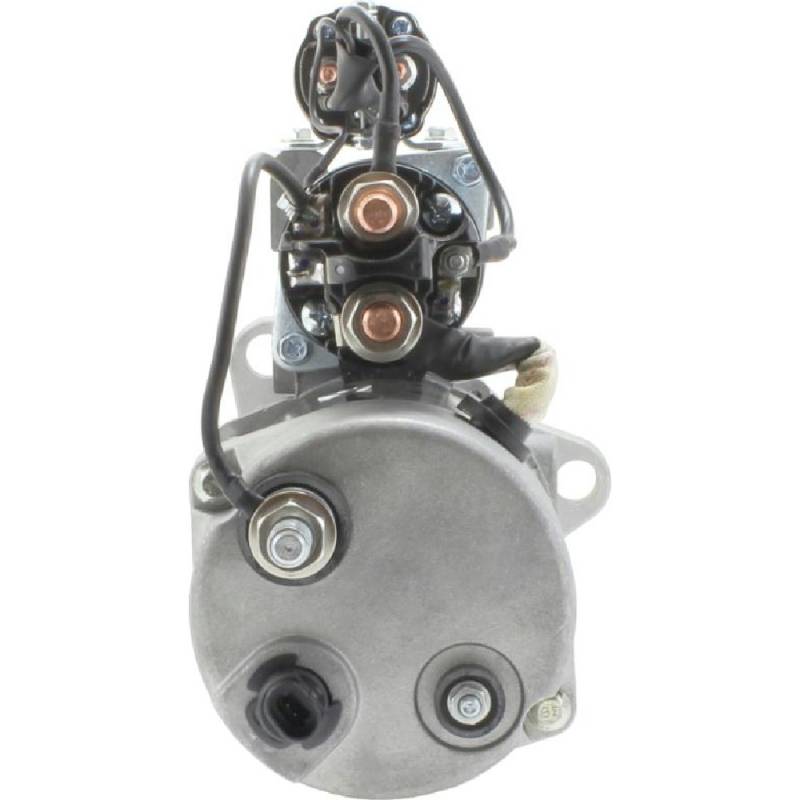

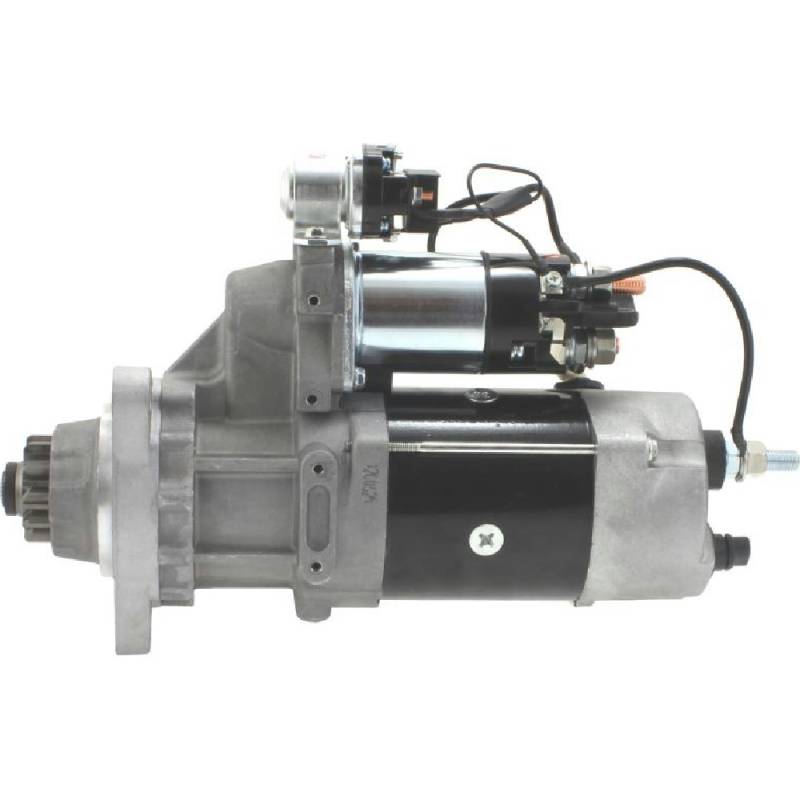

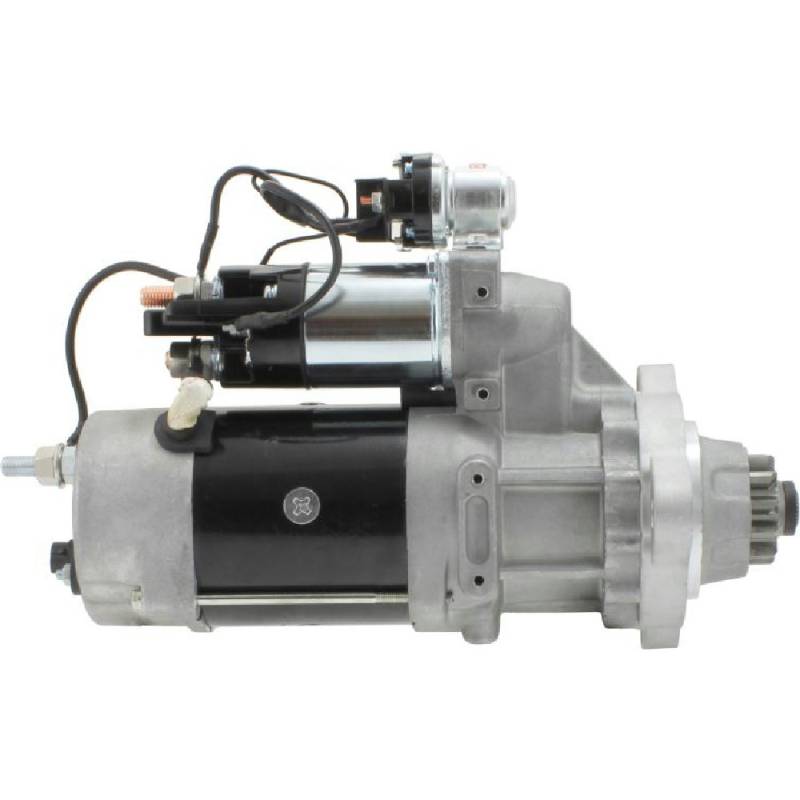

New 24V Starter Fits Cummins Mack Heavy Tucks Rs Rw U Rd Rl Rm Series 10479120

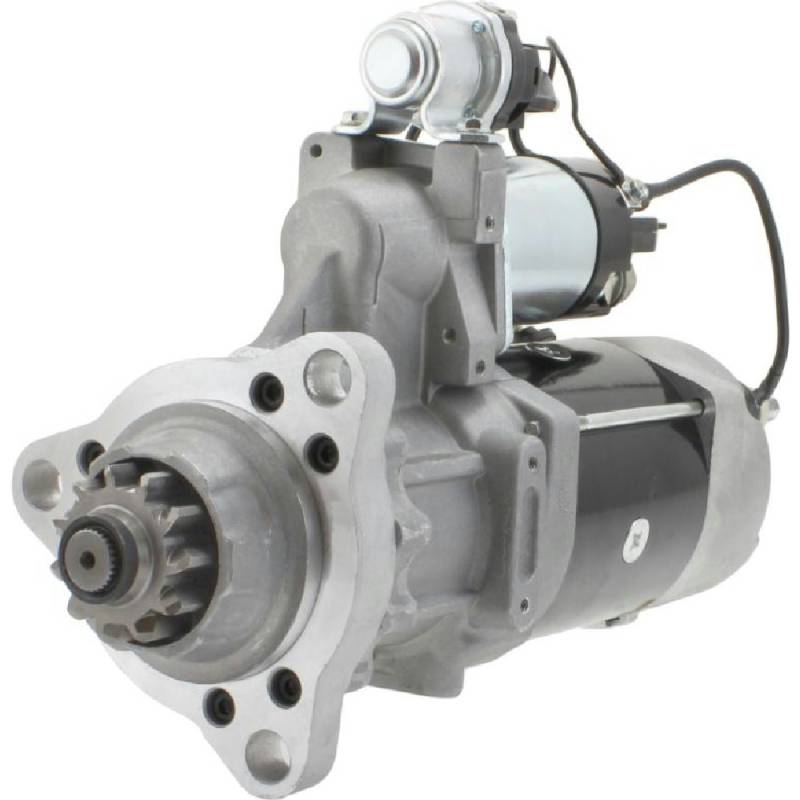

⚠️ 24 VOLT 11 TOOTH 39MT TYPE PLGR STARTER, INSULATED CASE, CATERPILLAR AND CUMMINS ENGINES, KENWORTH, VOLVO:
• 24V, 8.3 kW, clockwise, insulated case, planetary gear reduction, IMS switch, over-crank protection
• 11 tooth 6/8 pitch pinion, 2.185 in (55.5 mm) gear OD, open nose
• Re-clockable SAE 3 flange, 3 bolt holes, solenoid at 82 degrees as shipped, 32.3 lb
• A grounded case 39MT or a 12 tooth 8/10 pitch starter is a different unit
• Replaces Caterpillar 207-1564, Cummins 3103305, Delco 8200034

CATERPILLAR ENGINES:
• Caterpillar 3406 industrial and marine 14.6L 1985-2000
• Caterpillar 3406B marine and generator set
• Caterpillar 3406C industrial, marine and generator set
• Caterpillar 3406E industrial, marine and generator set
• Caterpillar 3408 industrial and marine 18.0L 1986-1997
• Caterpillar 3408C industrial, marine and generator set
• Caterpillar 3412 industrial and marine 27.0L 1986-1997
• Caterpillar 3412C, 3412D, 3412E industrial and marine
• Caterpillar 3456 industrial and generator set
• Caterpillar C15 and C18 industrial engine
• Caterpillar 3508 34.5L 1986-1993
• Caterpillar 3512 51.8L 1986-1993
• Caterpillar 3516 69.0L 1986-1993

CUMMINS ENGINES:
• Cummins 855 14.0L 1983-1985
• Cummins L10 10.0L 1991-1993
• Cummins V903 9.1L 1983-1985
• Cummins V903 marine 14.8L 1985

KENWORTH TRUCKS (OPTIONAL 24V STARTING ONLY):
• Kenworth C500 with the Cat 3406 1984-1985
• Kenworth C500 with the Cummins L10 1984-1994
• Kenworth C500 with the Detroit Diesel 6V-92 1984-1985
• Kenworth C500 with the Detroit Diesel 8V-92 1984-1985
• Kenworth K100 with the Cat 3406 1984-1985
• Kenworth K100 with the Cummins L10 1984-1985
• Kenworth K100 with the Cummins NTC-855 1984-1985
• Kenworth K100 with the Detroit Diesel 6V-92 1984-1985
• Kenworth K100 with the Detroit Diesel 8V-92 1984-1985
• Kenworth L700 with the Cat 3406 1984-1994
• Kenworth L700 with the Cummins 855 1984-1994
• Kenworth L700 with the Detroit Diesel 6V-92 1984-1985
• Kenworth L700 with the Detroit Diesel 8V-92 1984-1985
• Kenworth W900 with the Cat 3406 1984-1985
• Kenworth W900 with the Cummins NTC-855 1984-1985
• Kenworth W900 with the Detroit Diesel 6V-92 1984-1985
• Kenworth W900 with the Detroit Diesel 8V-92 1984-1985
• Kenworth T600 with the Cummins N14 1991-1994
• Kenworth T800 with the Cummins N14 1991-1994

VOLVO TRUCKS, BY ENGINE (OPTIONAL 24V STARTING ONLY):
• Volvo truck with the Cat 3406 1983-1993
• Volvo truck with the Cummins 855 1983-1993
• Volvo truck with the Cummins L10 1986-1993
• Volvo truck with the Cummins N14 1991-1993
• Volvo truck with the Cummins V903 1983-1988
• Volvo truck with the Detroit Diesel 6V-92 1986-1991
• Volvo truck with the Detroit Diesel Series 60 1989-1993
