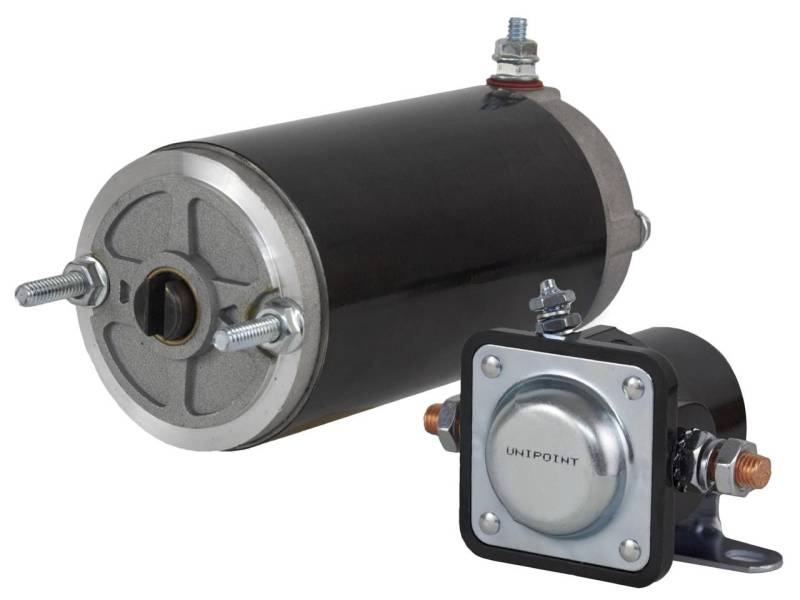

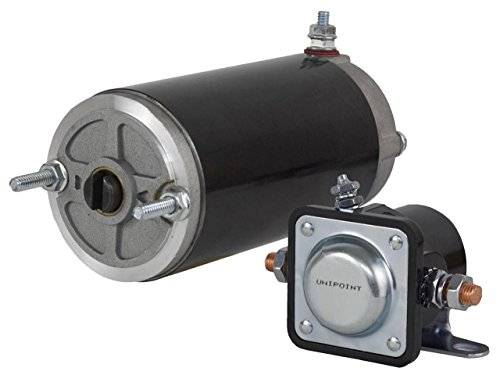

New 12V High Torque Snow Plow Angle Pump Motor And Solenoid Kit Compatible With Meyer E47 Electro

ELECTRIC MOTOR SPECIFICATIONS

JOHNSON ELECTRIC: MO551046A MM48826 SM48826 4882640 MM551046 MO551046AS
PRESTOLITE: 46-2001 46-2415 46-4160 MGL4005 MGL4105 MKW4007 46-854
WESTERN MOTOR: W-8032B
MEYER: 15054 M15054

ITEM DESCRIPTION: SNOW PLOW MOTOR
UNIT TYPE: PRESTOLITE
VOLTAGE: 12
ROTATION: CCW
FIELD HOUSING OD: 78.2MM / 3.079IN
FIELD HOUSING LENGTH: 121M
END OF UNIT TO MOUNTING BRACKETS: 142MM
OVERALL LENGTH: 161.9MM / 6.374IN
SHAFT LENGTH: 9MM
SHAFT OD: 15.9MM / 0.626IN
TERMINAL 1 SIZE: 1/4-20
SHAFT OD: 15.9MM / 0.626IN
SHAFT NOTES: 3/16 WIDE SLOT
WEIGHT: 6.525 LBS / 2.97 KG

SOLENOID SPECIFICATIONS

C.E. NIEHOFF: AL147 DR135A
CHRYSLER: 1658880 1658882 1692658 2084876 3620766 596903 CH2326 CH2332 CH2335 CH2361 LM2303
COLE HERSEE: 24020 24022-05 M24022 24022BX
DELCO: 1114205 1114215 1114233 1119901 1456 1466 1498 1544 2095360 A903 A914 D927 F900
FORD: D20Z-11450-A F-900 FD-900 SW1080 SW263
MEYER: 15370
MOTORCRAFT: 15-12 15-5 15-75 D2OZ11450A D2SF11450AB SW1080 SW27 SWX12 SWX75 SWY118
NATIONAL STOCK NUMBER: 2920000900890 2920001485074 5945010900890
POLLAK: 52-303 52-303P

ITEM DESCRIPTION: SOLENOID
UNIT TYPE: DELCO
VOLTAGE: 12 VOLTS
NUMBER OF TERMINALS: 3
DUTY CYCLE: INTERMITTENT DUTY
SPECIFICATIONS: GROUNDED BASE
SPECIFICATIONS: MOUNTING BRACKET HOLES 9/32X 1/2, 2-7/32 CENTER-TO-CENTER
