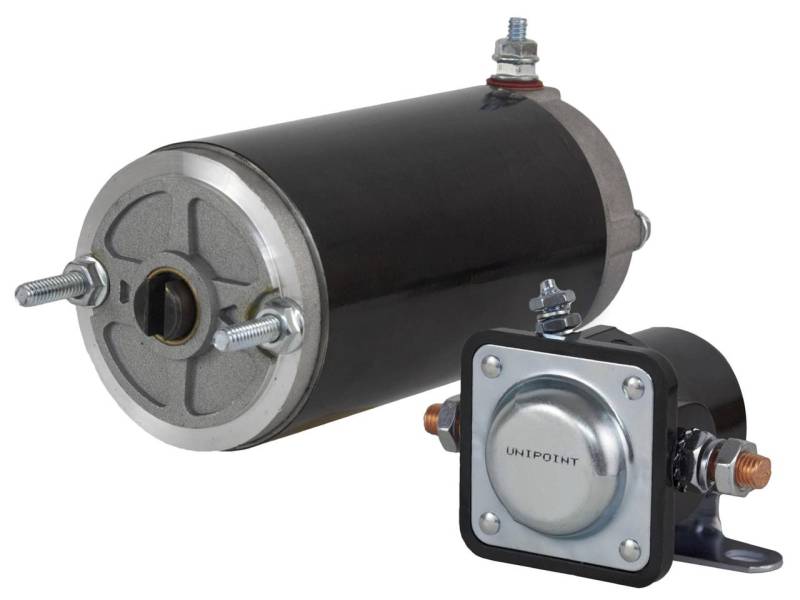

New High Torque Snow Plow Angle Pump 3'' Motor And Solenoid Compatible With Meyer 3/16 Wide Slot

ELECTRIC MOTOR

JOHNSON ELECTRIC MO551046A, MM48826, SM48826, 4882640, MM551046, MO551046AS

PRESTOLITE 46-2001, 46-2415, 46-4160, MGL4005, MGL4105, MKW4007, 46-854

WESTERN MOTOR W-8032B

MEYER 15054, M15054

SPECIFICATIONS

VOLTAGE: 12
ROTATION: CCW
FIELD HSG OD: 78.2MM / 3.079IN
OVERALL LENGTH: 161.9MM / 6.374IN
SHAFT OD: 15.9MM / 0.626IN
SHAFT NOTES: 3/16 WIDE SLOT
TERMINAL 1 SIZE: 1/4-20
APPROXIMATE WEIGHT: 6.525 LBS / 2.97 KG

SOLENOID

CHRYSLER 3225624, 3225629

C.E. NIEHOFF AL147, DR135A

CHRYSLER 1658880, 1658882, 1692658, 2084876, 3620766, 596903, CH2326, CH2332, CH2335, CH2361, LM2303

COLE HERSEE 24020, 24022-05, M24022, 24022BX

DELCO 1114205, 1114215, 1114233, 1119901, 1456, 1466, 1498, 1544, 2095360, A903, A914, D927, F900

FORD D20Z-11450-A, F-900, FD-900, SW1080, SW263

MOTORCRAFT 15-12, 15-5, 15-75, D2OZ11450A, D2SF11450AB, SW1080, SW27, SWX12, SWX75, SWY118

NATIONAL STOCK NUMBER 2920000900890, 2920001485074, 5945010900890

MEYER 15370

POLLAK 52-303 ,52-303P

PRESTOLITE 15-426, 15-5, SAZ4201E, SS4008, SS4011, SS4023, SAS-4203C92

VOLTAGE: 12 VOLTS
NUMBER OF TERMINALS: 3
DUTY CYCLE: INTERMITTENT DUTY
NEW OR REMANUFACTURED: NEW

NOTES:
GROUNDED BASE, MOUNTING BRACKET HOLES 9/32X 1/2, 2-7/32 CENTER-TO-CENTER

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
