DELCO REMY PART NUMBERS: • RA00121
HELLA PART NUMBERS: • 8EL 737 061-001, 8EL-737-061-001, 8EL737061001
HITACHI PART NUMBERS: • LR155-20, LR15520
• LR155-20B, LR15520B
• LR180-03, LR18003
PRESTOLITE PART NUMBERS: • 20115006TBA
YANMAR PART NUMBERS: • 129772-77200, 12977277200
• 119573-77201, 11957377201
• 129470-77200, 12947077200
OTHER PART NUMBERS: • Lucas LRA01248, LRA1248
• Wilson 90-25-1092, 90251092
• Mallory 9-19105, 919105
ARCO MARINE PART NUMBERS: • 84150
QUICKSILVER PART NUMBERS: • 8M6007518

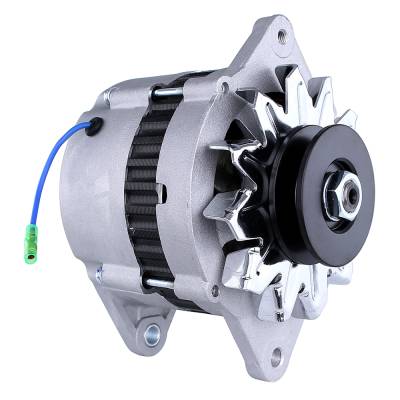

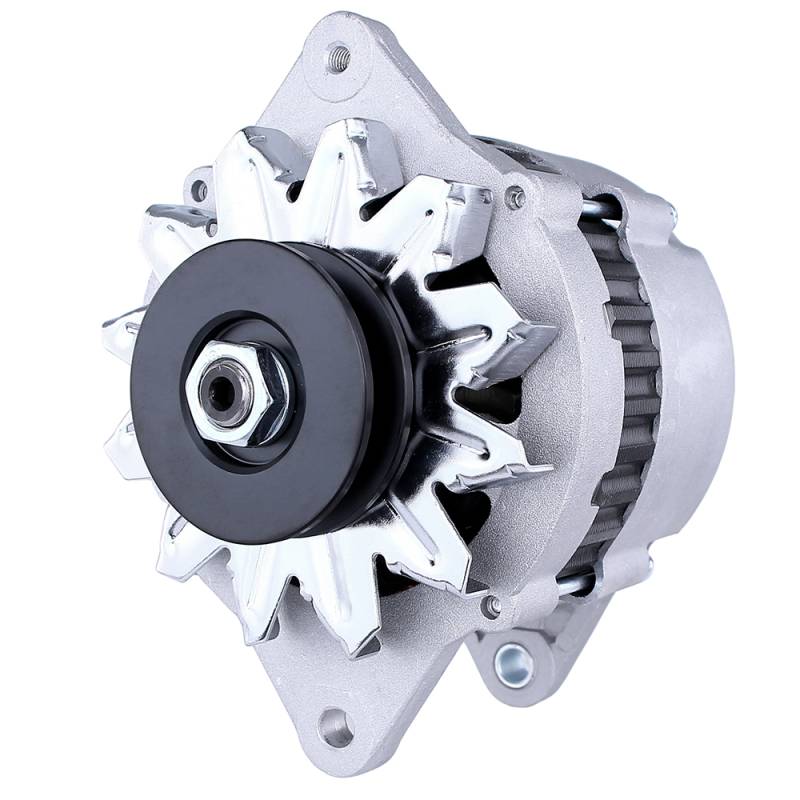

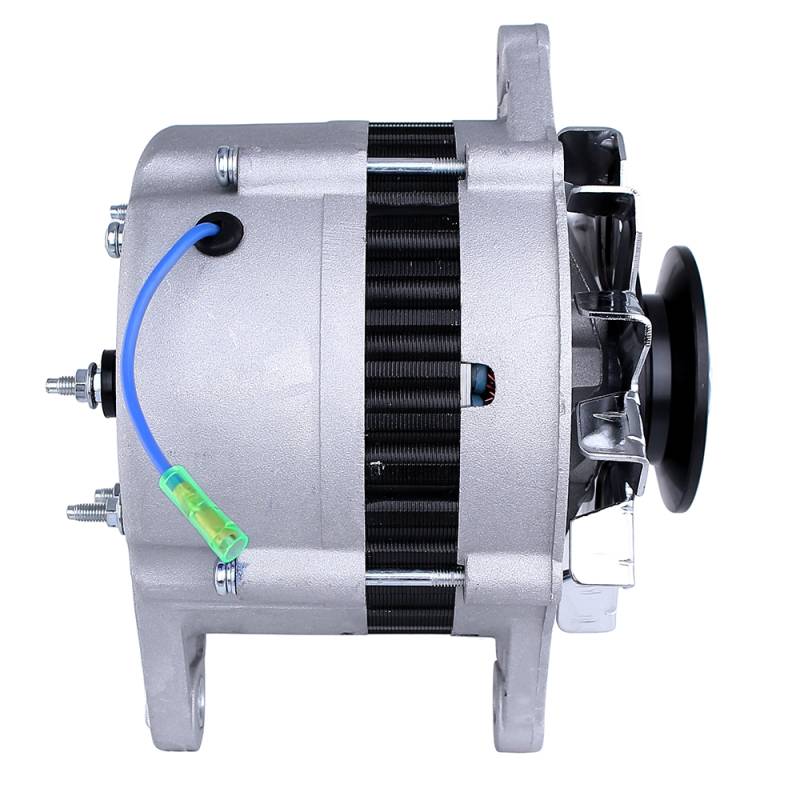

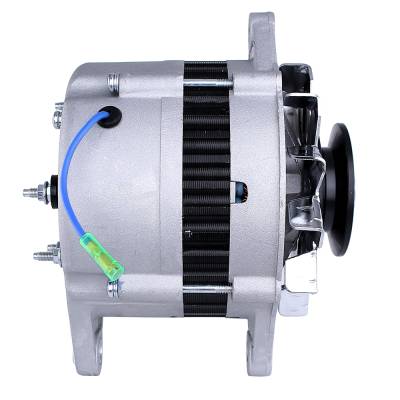

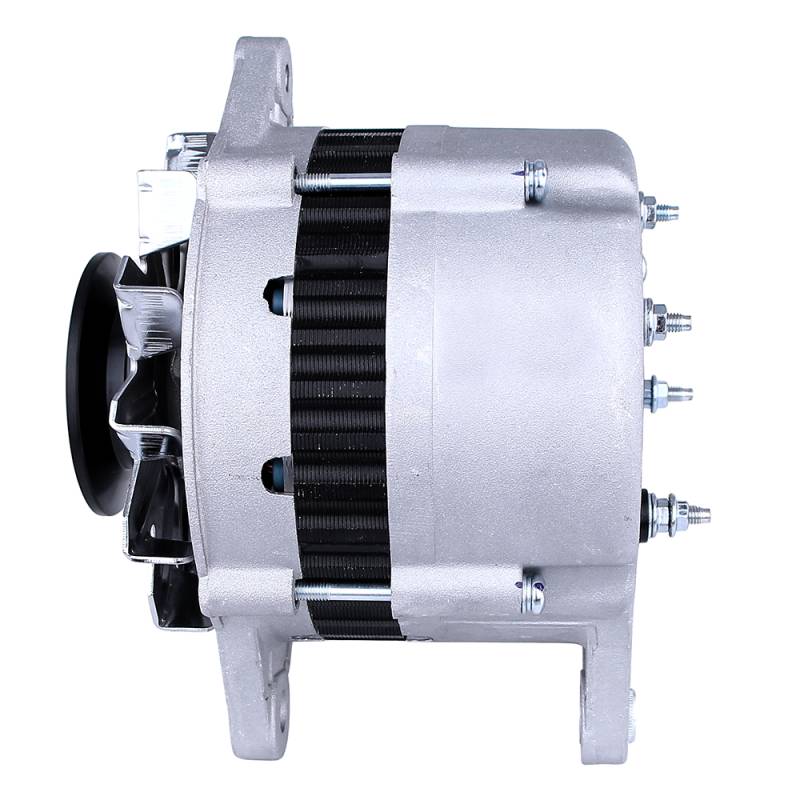

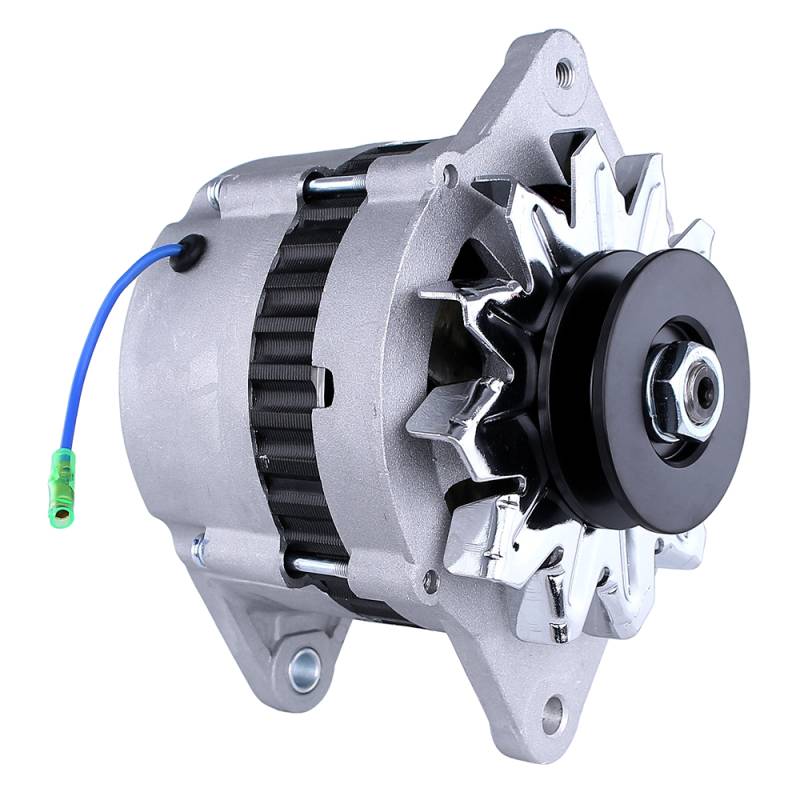

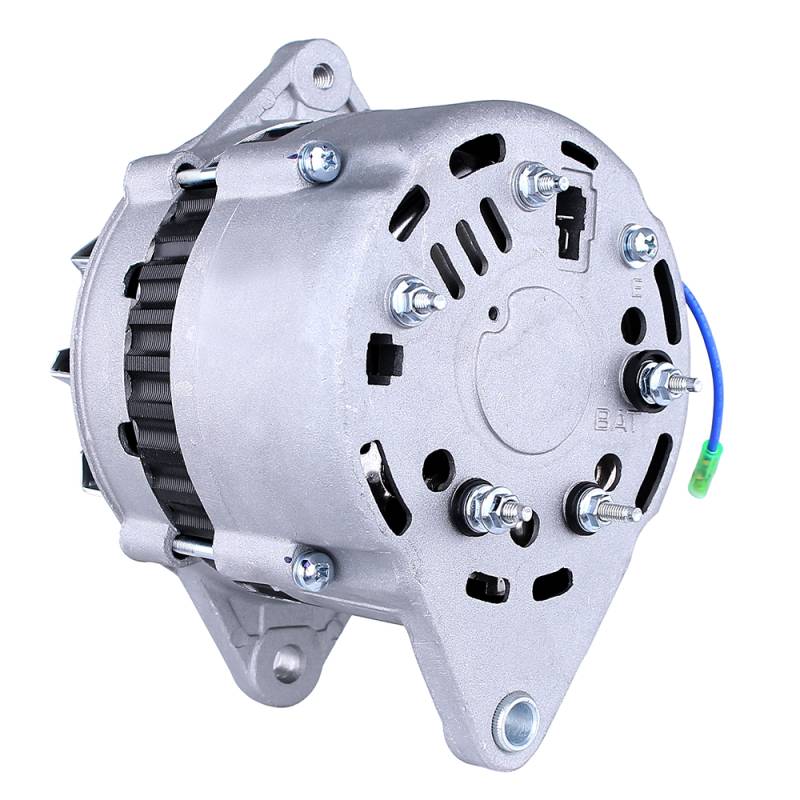

SPECIFICATIONS: • Type: alternator, internal regulator, external fan
• Voltage: 12 volt
• Output: 80 amp
• Rotation: clockwise (CW)

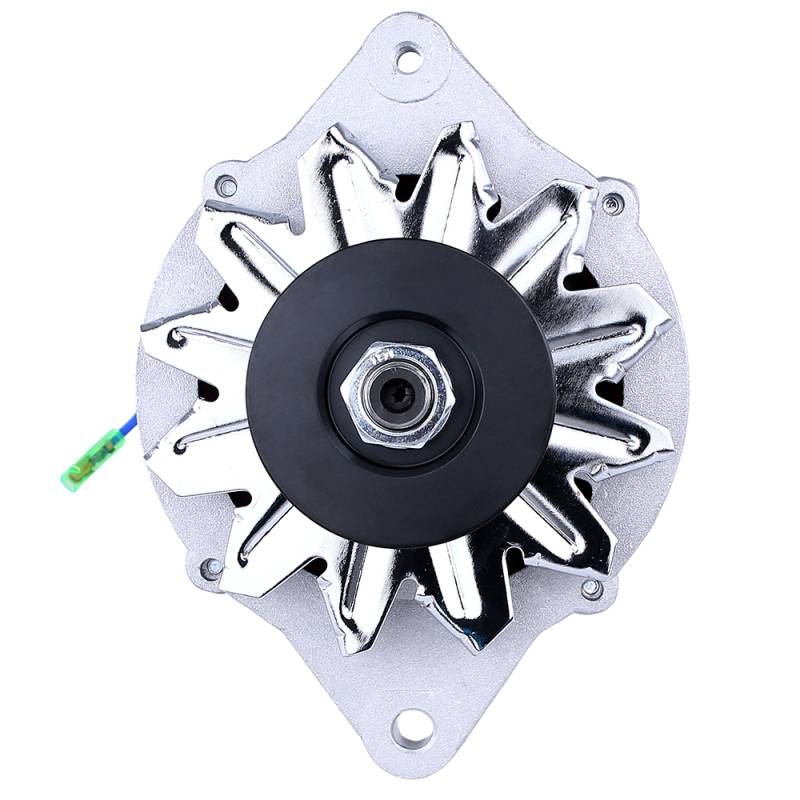

• Pulley: 1-groove V-belt, 2.913 in (74 mm) OD, 1/2 in belt
• Mounting ear 1: M8-1.25 threaded, 14 mm thick
• Mounting ear 2: 10.5 mm unthreaded, 14 mm thick
• Mounting ear 3: 10.4 mm unthreaded, 15 mm thick

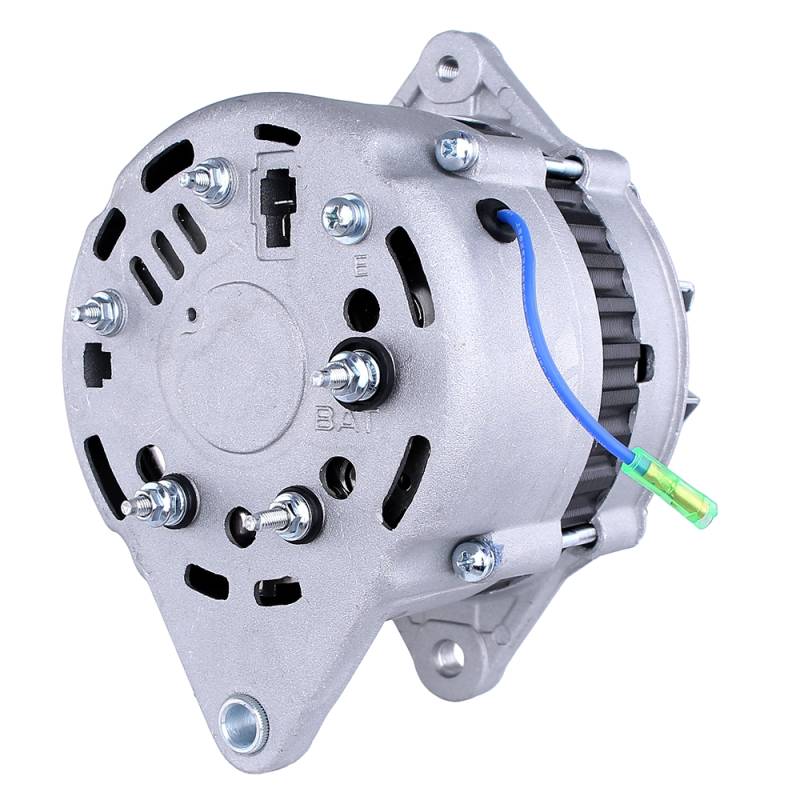

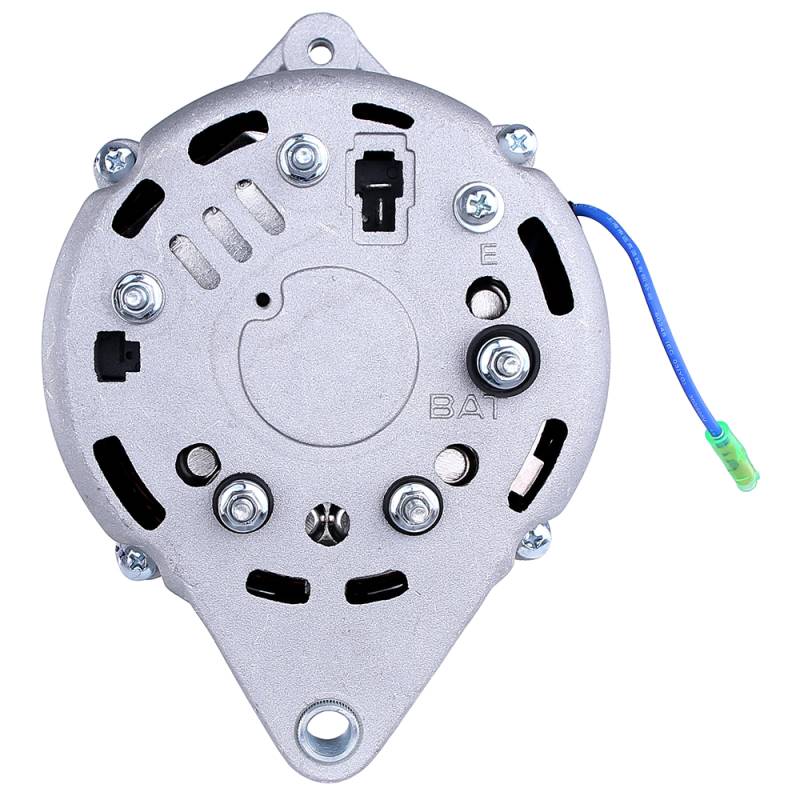

• B+ terminal: M5-0.8 stud
• Ground: insulated (isolated ground), fully insulated
• Terminals: L (warning light) and R (relay)
• Regulator plug clock: 12:30
• Weight: 13.52 lb (6.14 kg)
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
