HITACHI PART NUMBERS: • LR155-20, LR15520
• LR180-03A, LR18003A
• LR180-03, LR18003
YANMAR PART NUMBERS: • 129772-77200, 12977277200
• 119573-77201, 11957377201
• 129470-77200, 12947077200
• 119573-77200, 11957377200
• YM119573-77200, YM11957377200
• YM119573-77201, YM11957377201
• YM129470-77200, YM12947077200
• YM129772-77200, YM12977277200
LUCAS PART NUMBERS: • LRA01248, LRA1248
ARCO MARINE PART NUMBERS: • 84150
WILSON PART NUMBERS: • 90-25-1092, 90251092
DELCO REMY PART NUMBERS: • RA00121

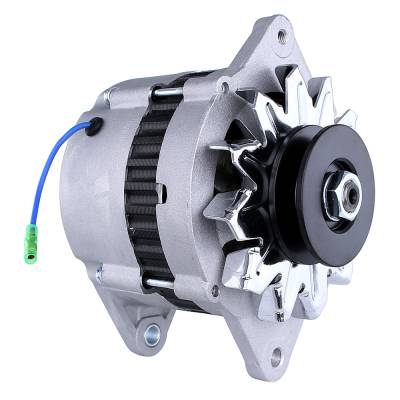

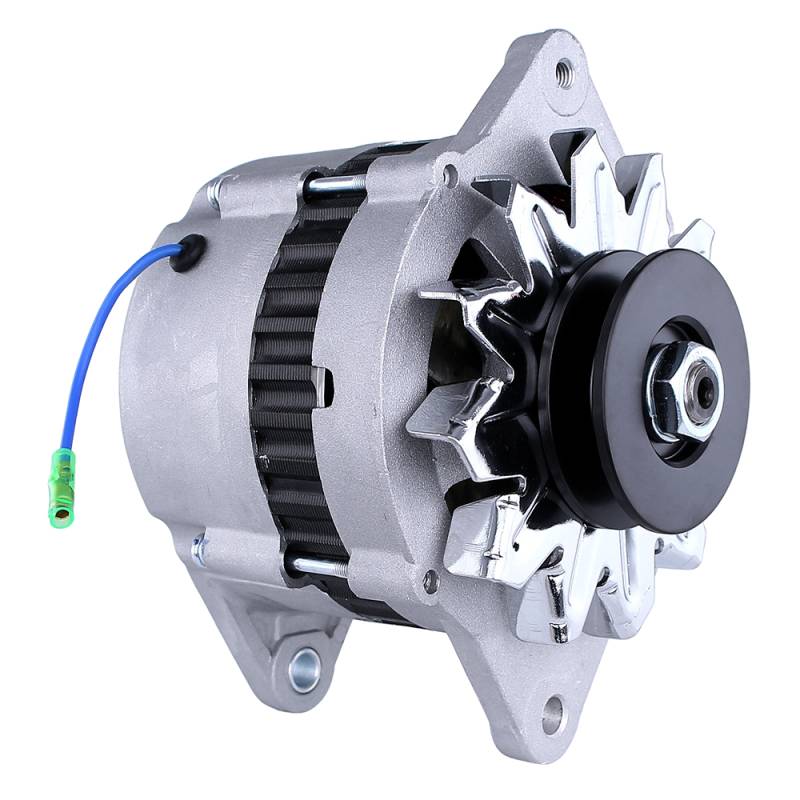

SPECIFICATIONS: • Type: alternator, internal regulator, external fan
• Voltage: 12 volt
• Output: 80 amp
• Rotation: clockwise (CW)
• Pulley: 1-groove V-belt, 2.913 in (74 mm) OD, 1/2 in belt
• Mounting ear 1: M8-1.25 threaded, 14 mm thick
• Mounting ear 2: 10.5 mm unthreaded, 14 mm thick
• Mounting ear 3: 10.4 mm unthreaded, 15 mm thick
• B+ terminal: M5-0.8 stud
• Ground: insulated (isolated ground), fully insulated
• Terminals: L (warning light) and R (relay)
• Regulator plug clock: 12:30
• Weight: 13.52 lb (6.14 kg)
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
