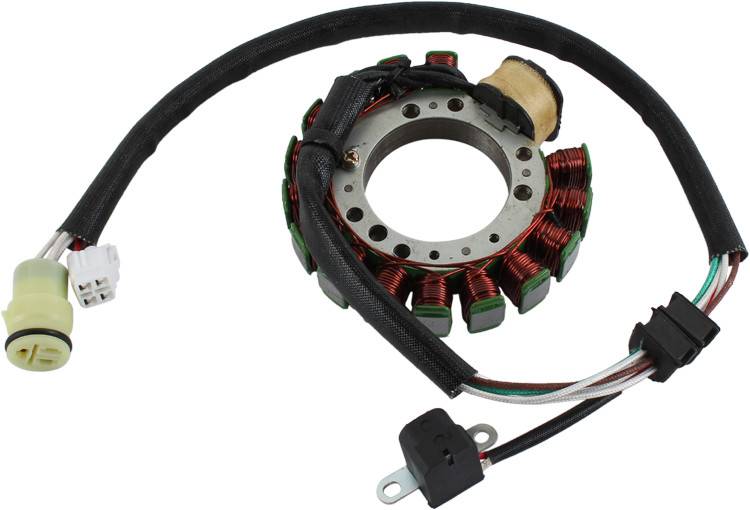

Magneto Stator Compatible With Yamaha Grizzly 600 4X4 Yfm600fwa 595Cc Air/Oil-Cooled Single-Cylinder

OEM PART NUMBERS:
• Yamaha: 5GT-85510-00-00 / 5GT855100000
• NOTE: Fits 1999-2001 Grizzly 600 only. 1998 model uses different stator (4WV-85510-00-00).

SPECIFICATIONS:
• Type: Magneto Stator Coil Assembly
• Voltage: 12V
• Wires: 7
• Plugs: 2 (3-pin + 4-pin)
• Poles: 15 (+1 pickup)
• Includes Pickup Coil: Yes
• Weight: 4 lbs
• Engine: 595cc Air/Oil-Cooled 4-Stroke Single-Cylinder SOHC 3-Valve
• Bore x Stroke: 95mm x 84mm
• Condition: New

YAMAHA GRIZZLY 600 ATV APPLICATIONS:
• Grizzly 600 4x4 YFM600FWA 595cc (1999)
• Grizzly 600 4x4 YFM600FM / California YFM600FMC 595cc (2000)
• Grizzly 600 Realtree YFM600FHM / Realtree California YFM600FHMC 595cc (2000)
• Grizzly 600 4x4 YFM600FN / Realtree Hunter YFM600FHN 595cc (2001)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
