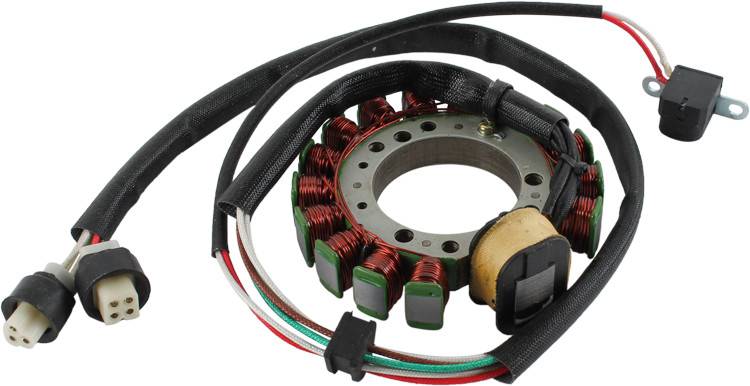

Magneto Stator Compatible With Yamaha Warrior 350 Yfm350x 348Cc 1990-1995 Big Bear 350 Yfm350fw 4Wd

AYA4032*2
OEM PART NUMBERS:
• Yamaha: 3HN-85510-00-00 / 3HN855100000

SPECIFICATIONS:
• Item Description: Stator Coil / Magneto Stator
• Poles: 15
• Temperature Rating: 200°C
• Ignition System: DC-CDI
• Weight: 4 lbs
• Condition: New

YAMAHA ATV APPLICATIONS:
• Big Bear 350 4WD YFM350FW 348cc SOHC Single Cylinder (1990-1994)
• Moto-4 350 YFM350ER 348cc SOHC Single Cylinder (1990-1994)
• Warrior 350 YFM350X 348cc SOHC Single Cylinder (1990-1995)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $156.66
Sale: $89.52
Save: 43%
Save: $67.14
Qty:
Free Shipping!

Description

YAMAHA BIG BEAR 350 4WD (1990-1994):
• YFM350FW Big Bear 350 4WD 348cc Air-Cooled SOHC 4-Stroke Single Cylinder 2-Valve (1990-1994)
• 83mm Bore x 64.5mm Stroke, 9.2:1 Compression, Mikuni 36mm Carburetor
• DC-CDI Ignition, 4WD Shaft Drive, Utility ATV, Electric Start

YAMAHA MOTO-4 350 (1990-1994):
• YFM350ER Moto-4 350 348cc Air-Cooled SOHC 4-Stroke Single Cylinder 2-Valve (1990-1994)
• 83mm Bore x 64.5mm Stroke, 9.2:1 Compression, Mikuni 36mm Carburetor
• DC-CDI Ignition, 2WD Shaft Drive, Utility ATV, Electric Start

YAMAHA WARRIOR 350 (1990-1995):
• YFM350X Warrior 350 348cc Air-Cooled SOHC 4-Stroke Single Cylinder 2-Valve (1990-1995)
• 83mm Bore x 64.5mm Stroke, 9.2:1 Compression, Mikuni 36mm Carburetor
• DC-CDI Ignition, 6-Speed Manual w/ Reverse, 2WD Chain Drive, Sport ATV

NOTE: All three models share the same 348cc air-cooled SOHC single-cylinder engine platform. This stator (OEM 3HN-85510-00-00) fits ONLY 1990-1995 models. Earlier 1987-1989 models use a different stator (OEM 1YW-85510-21), and later 1996+ models use an updated stator (OEM 3HN-85510-10-00).

Details

Shipping Information

  • Item Requires Shipping
  • 2.5 lbs.
  • W7.0000” x H3.0000” x L7.0000”
  • Free Shipping!
