FORD PART NUMBERS: • 1R3U-10300-AA, 1R3U10300AA
• 1R3Z-10V346-ABRM, 1R3Z10V346ABRM
• 1R3Z-10346-ARM, 1R3Z10346ARM
• 1R3U-10300-AC, 1R3U10300AC
• 1R3U-10300-AB, 1R3U10300AB
• 1R3Z-10V346-ACRM, 1R3Z10V346ACRM
• 1R3U-10300-AD, 1R3U10300AD
• 1R3Z-10346-A, 1R3Z10346A
FORD ENGINEERING NUMBERS: • 1R3U-AC, 1R3UAC
• 1R3U-AB, 1R3UAB
• 1R3U-AA, 1R3UAA
• 1R3U-AD, 1R3UAD
MOTORCRAFT PART NUMBERS: • GL-449, GL449
• GLV-8678-RM, GLV8678RM
• GL-449-RM, GL449RM
BOSCH PART NUMBERS: • AL7598X

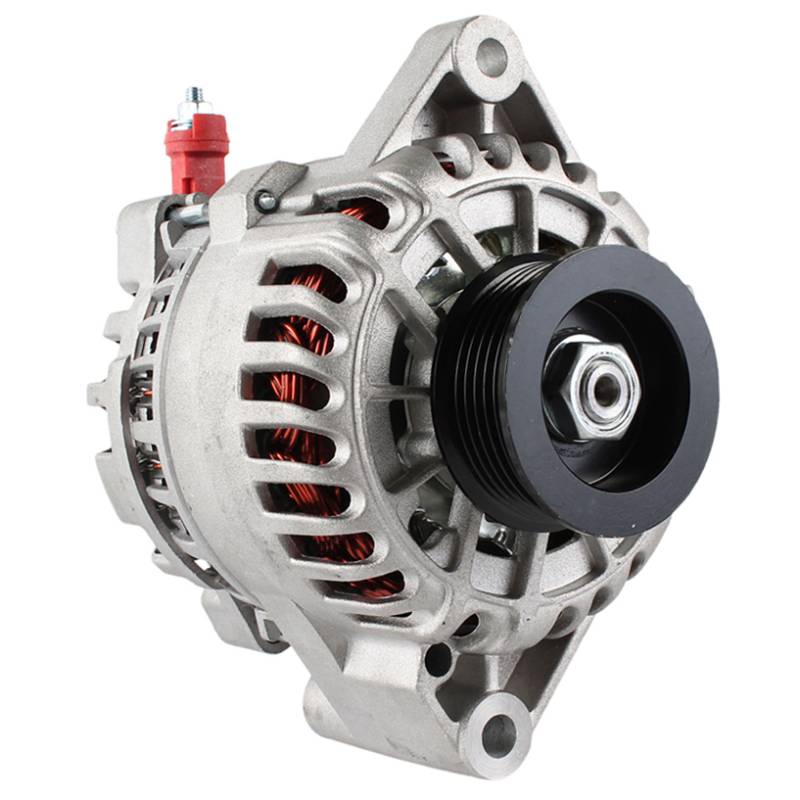

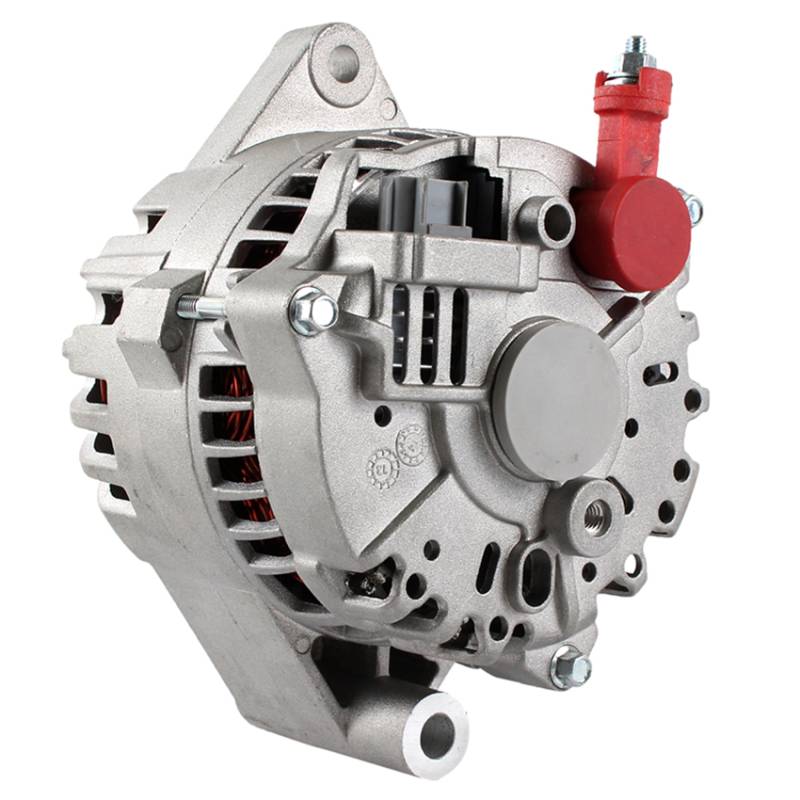

SPECIFICATIONS: • Type: alternator, Ford 6G type
• Voltage: 12 volt
• Output: 220 amp, high output
• High output: this 220 amp unit replaces the lower-amp (105 / 110 amp) original 6G alternator of the Mustang V6
• Upgrade note: a heavier 4 gauge charge cable with a matching fuse is recommended for high-amp alternators
• Fan: internal
• Regulator: internal
• Pulley: 6 groove solid, 2.756 in / 70 mm OD
• Serpentine groove OD: 2.551 in / 64.8 mm
• Mount: spool
• Rotation: clockwise
• B+ terminal: M6-1.0
• Polarity: negative ground
• Weight: 13.5 lb / 6.12 kg
• Engine note: the 3.9L (238 cid) Essex V6 replaced the 3.8L (232 cid) Essex V6 as a running change during the 2004 model year
• Condition: New aftermarket, not a Ford or Motorcraft branded unit
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
