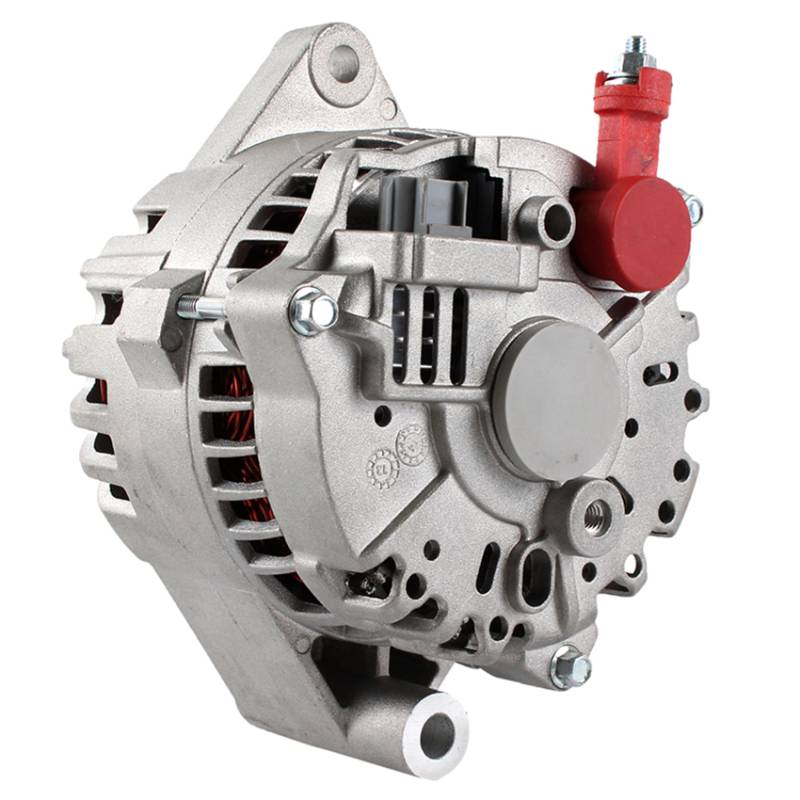

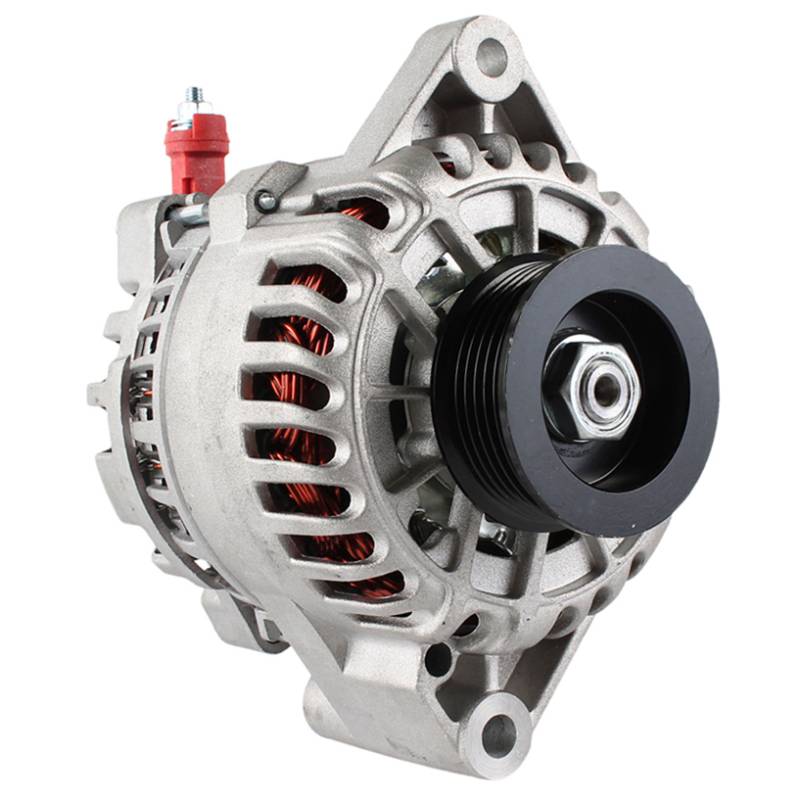

New 220 Amp Alternator Compatible With 2001-2002 Ford Mustang V6 3.8L 232Cid High Output Ford 6G

8266N-220AA3
FORD PART NUMBERS:
• 1R3U-10300-AA, 1R3U10300AA
• 1R3Z-10V346-ABRM, 1R3Z10V346ABRM
• 1R3Z-10346-ARM, 1R3Z10346ARM
• 1R3U-10300-AC, 1R3U10300AC
• 1R3U-10300-AB, 1R3U10300AB
• 1R3Z-10V346-ACRM, 1R3Z10V346ACRM
• 1R3U-10300-AD, 1R3U10300AD
• 1R3Z-10346-A, 1R3Z10346A

FORD ENGINEERING NUMBERS:
• 1R3U-AC, 1R3UAC
• 1R3U-AB, 1R3UAB
• 1R3U-AA, 1R3UAA
• 1R3U-AD, 1R3UAD

MOTORCRAFT PART NUMBERS:
• GL-449, GL449
• GLV-8678-RM, GLV8678RM
• GL-449-RM, GL449RM

BOSCH PART NUMBERS:
• AL7598X

SPECIFICATIONS:
• Type: alternator, Ford 6G type
• Voltage: 12 volt
• Output: 220 amp, high output
• High output: this 220 amp unit replaces the lower-amp (105 / 110 amp) original 6G alternator of the Mustang V6
• Upgrade note: a heavier 4 gauge charge cable with a matching fuse is recommended for high-amp alternators
• Fan: internal
• Regulator: internal
• Pulley: 6 groove solid, 2.756 in / 70 mm OD
• Serpentine groove OD: 2.551 in / 64.8 mm
• Mount: spool
• Rotation: clockwise
• B+ terminal: M6-1.0
• Polarity: negative ground
• Weight: 13.5 lb / 6.12 kg
• Engine note: the 3.9L (238 cid) Essex V6 replaced the 3.8L (232 cid) Essex V6 as a running change during the 2004 model year
• Condition: New aftermarket, not a Ford or Motorcraft branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $511.47
Sale: $292.27
Save: 43%
Save: $219.20
Qty:
Free Shipping!

Description

FORD MUSTANG:
• Ford Mustang 2001-2002 with the 3.8L (232 cid) Essex V6

SAME ALTERNATOR ALSO COVERS:
• Ford Mustang 2003-2004 with the 3.8L (232 cid) Essex V6
• Ford Mustang 2004 with the 3.9L (238 cid) Essex V6

ENGINES:
• Ford 3.8L (232 cid) Essex OHV V6
• Ford 3.9L (238 cid) Essex OHV V6

SPECIFICATIONS:
• Type: alternator, Ford 6G type
• Voltage: 12 volt
• Output: 220 amp, high output
• High output: this 220 amp unit replaces the lower-amp (105 / 110 amp) original 6G alternator of the Mustang V6
• Upgrade note: a heavier 4 gauge charge cable with a matching fuse is recommended for high-amp alternators
• Fan: internal
• Regulator: internal
• Pulley: 6 groove solid, 2.756 in / 70 mm OD
• Serpentine groove OD: 2.551 in / 64.8 mm
• Mount: spool
• Rotation: clockwise
• B+ terminal: M6-1.0
• Polarity: negative ground
• Weight: 13.5 lb / 6.12 kg
• Engine note: the 3.9L (238 cid) Essex V6 replaced the 3.8L (232 cid) Essex V6 as a running change during the 2004 model year
• Condition: New aftermarket, not a Ford or Motorcraft branded unit
