KOMATSU PART NUMBERS: • 600-825-9710, 6008259710
• 600-825-9331, 6008259331
• 600-825-9120, 6008259120
• 600-821-9230, 6008219230
• 600-825-9150, 6008259150
• 600-825-9131, 6008259131
• 600-825-9720, 6008259720
• 600-825-9330, 6008259330
• 600-825-9820, 6008259820
• 600-825-9731, 6008259731
• 600-861-9121, 6008619121
• 600-861-9120, 6008619120
• 600-825-9230, 6008259230
• 600-821-9220, 6008219220
• 600-821-9880, 6008219880
• 600-825-9110, 6008259110
• 600-825-9111, 6008259111
• 600-825-9130, 6008259130
• 600-825-9151, 6008259151
• 600-825-9231, 6008259231
• 600-825-9721, 6008259721
• 600-825-9730, 6008259730
• 600-825-9821, 6008259821
• RKD90A01
• D90A03
• 600-861-9140, 6008619140
• 600-861-9141, 6008619141
• R600-861-9140, R6008619140
• R600-861-9141, R6008619141
NIKKO PART NUMBERS: • 0-35000-8491, 0350008491
• 0-35000-8360, 0350008360
• 0-35000-8571, 0350008571
• 0-35000-8574, 0350008574
• 0-35000-8641, 0350008641
• 01-35-2021, 01352021
• 0-35000-8610, 0350008610
• 0-35000-8640, 0350008640
• 01-35-2022, 01352022
• 0-35000-8030, 0350008030
• 0-35000-8040, 0350008040
• 0-35000-8350, 0350008350
• 0-35000-8351, 0350008351
• 0-35000-8352, 0350008352
• 0-35000-8361, 0350008361
• 0-35000-8362, 0350008362
• 0-35000-8380, 0350008380
• 0-35000-8390, 0350008390
• 0-35000-8400, 0350008400
• 0-35000-8401, 0350008401
• 0-35000-8402, 0350008402
• 0-35000-8410, 0350008410
• 0-35000-8570, 0350008570
• 0-35000-8572, 0350008572
• 0-35000-8573, 0350008573
• 0-35000-8611, 0350008611
• 0-35000-8612, 0350008612
• 0-35000-8690, 0350008690
CUMMINS PART NUMBERS: • 4064077
WILSON PART NUMBERS: • 90-28-4037, 90284037
• 90-28-4037N, 90284037N

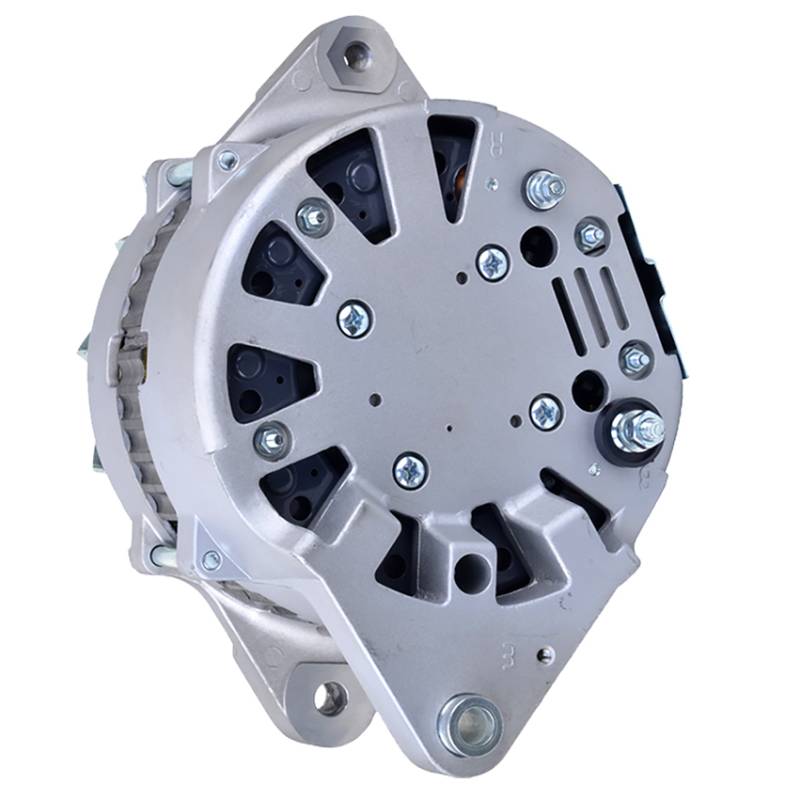

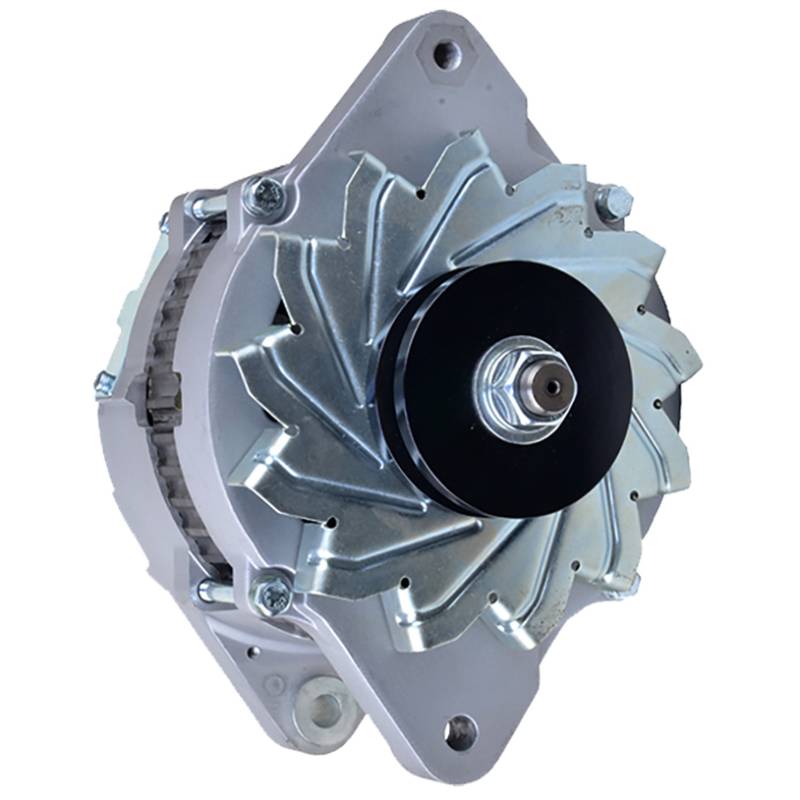

SPECIFICATIONS: • Type: brushless alternator
• Voltage: 24 volt
• Output: 90 amp
• Regulator: internal
• Fan: external
• Ground: negative
• Rotation: clockwise (CW)
• Pulley: 2 groove V-belt, not decoupled
• Mounting: J-180 hinge, 3 holes (one M12 x 1.5 threaded, two 13 mm plain)
• Terminals: B+ M8 x 1.25, R M5
• Plug: 3:30 clock position, rear
• Weight: about 41.84 lb (19.02 kg)
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
