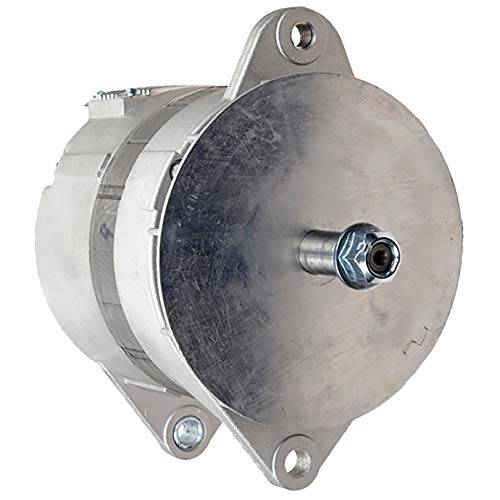

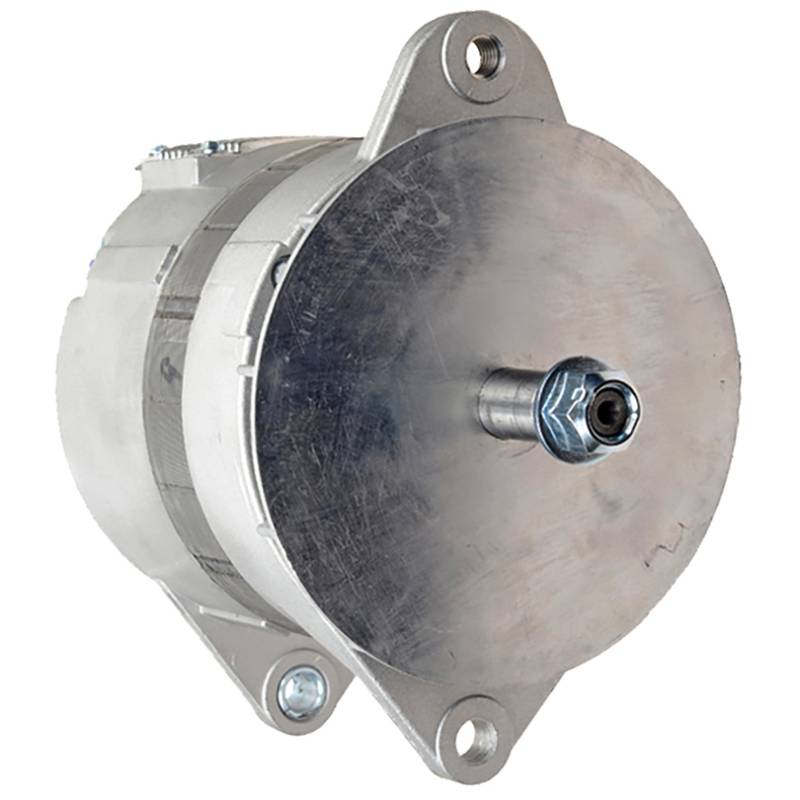

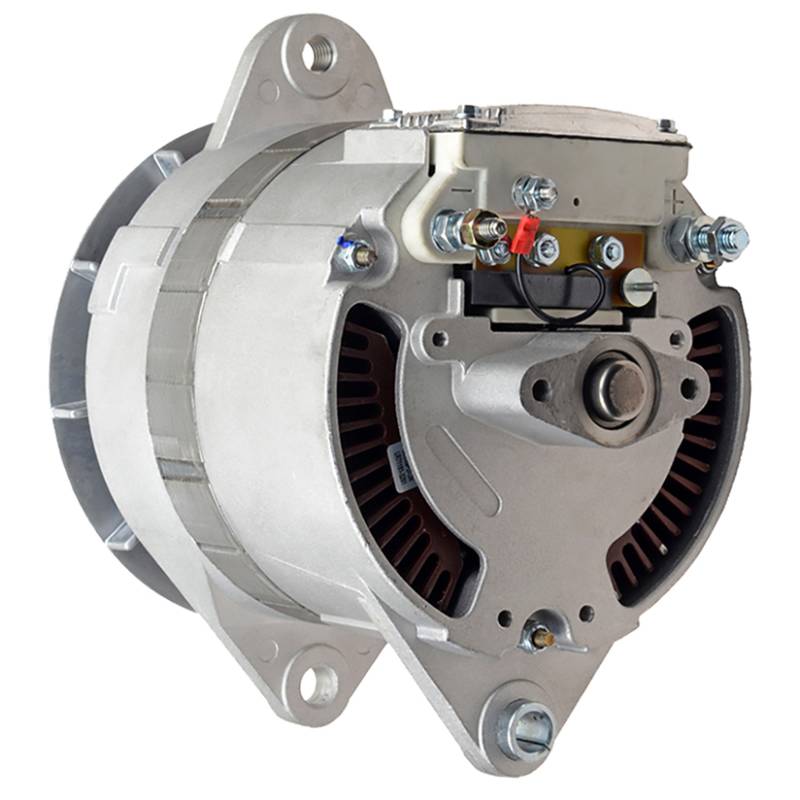

New 90 Amp Alternator Fits Mack Heavy Duty Dm 1975-2010 Ee8026 2511J 2Mj4124p2

MACK HEAVY-DUTY TRUCKS:
• Mack heavy-duty DM trucks, various engines, 1975-2010
• Mack heavy-duty DMM trucks, various engines, 1975-2010

MACK DM600 SERIES:
• Mack DM600 series DM607 with the Mack END673E 11.0L diesel
• Mack DM600 series DM685 with the Mack ENDT675 Maxidyne 11.0L diesel

MACK DM800 SERIES:
• Mack DM800 with the Mack ENDT673 11.0L diesel
• Mack DM800 series DM885 with the Mack ENDT675 Maxidyne 11.0L diesel
• Mack DM800 series DM895 with the Mack ENDT865 V8 diesel
• Mack DM800 series DM897 with the Mack ENDT865 V8 diesel

MACK DMM SERIES:
• Mack DMM6006 all-wheel-drive truck with the Mack END673E 11.0L diesel
• Mack DMM6006 all-wheel-drive truck with the Mack ENDT673 11.0L diesel
• Mack DMM6006 all-wheel-drive truck with the Mack ENDT675 Maxidyne 11.0L diesel

ENGINES:
• Mack END673E 11.0L 6-cylinder diesel: DM607, DMM6006
• Mack ENDT673 11.0L 6-cylinder diesel: DM800, DMM6006
• Mack ENDT675 Maxidyne 11.0L 6-cylinder diesel: DM685, DM885, DMM6006
• Mack ENDT865 V8 diesel: DM895, DM897

ALSO FITS FORESTRY LOGGING EQUIPMENT, CATERPILLAR AND CUMMINS:
• Valmet 425EX, 425EXL and Timbco 425EXL, 445EXL tracked feller bunchers (Cummins QSC8.3 8.3L)
• Caterpillar 518, 518C, 528, 528B, 530B wheel skidders and FB518 feller buncher (Cat 3304, Cat 3306)
• Caterpillar 953, 963, 977L track loaders, D4D track-type tractor, 926 wheel loader (Cat 3204, Cat 3304, Cat 3306)
• Cummins C8.3 (C Series 8.3L) diesel engines, 24 volt systems
• Komatsu and Sisu forestry logging equipment, by part number

SPECIFICATIONS:
• Type: alternator, 2500JB Type (Leece-Neville type), internal regulator and external fan
• Voltage: 24 volt
• Output: 90 amp
• Mounting style: J-180 (SAE J180 hinge mount)
• Mounting bolt size: 1/2-13 UNC
• Rotation: bi-directional
• Ground: isolated ground (insulated)
• Excitation: self excite system
• Regulator: internal
• Fan: external
• Rectifier location: internal
• Positive stud: 5/16-18 UNC
• Negative stud: 1/4-20 UNC
• Shaft diameter: .8736-.8741 in (7/8 in)
• Pulley: not included, reuse the pulley from the old unit
• Housing coating: painted
• Weight: 23 lb (10.45 kg)
• Condition: New aftermarket, not a Leece-Neville, Prestolite, Mack or Caterpillar branded unit
