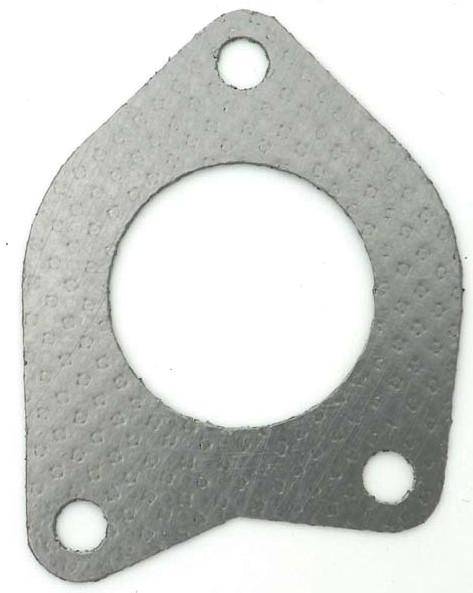

Exhaust Gasket Replacement Compatible With 1986-1989 Kawasaki Jet Ski Js 550 1990-1995 Sx 550 530Cc

(0) Reviews: Write first review
007-517*1
/ Reference Part Numbers:

Kawasaki 11060-3726
110603726

Specifications:

Type: Exhaust Gasket
Engine: 530cc 2-Stroke Twin Cylinder
Bore x Stroke: 75mm x 60mm / 47 HP
Fuel: Single Keihin CDK-II 38mm
Intake: Reed Valve / CDI
Location: Exhaust Pipe

Applications:

Kawasaki Jet Ski JS 550 1986-1989, SX 550 1990-1995

Kawasaki JS 550 SX 550 Exhaust Gasket
Replacement exhaust gasket for Kawasaki Jet Ski JS 550 and SX 550 personal watercraft equipped with the 530cc 2-stroke twin cylinder engine. This engine features a 75mm bore and 60mm stroke producing 47 horsepower with CDI ignition reed valve induction and oil injection. The SX 550 uses a single Keihin CDK-II 38mm carburetor. This gasket seals the exhaust pipe connection preventing exhaust gas leaks. On 2-stroke engines proper exhaust sealing is critical because the exhaust system creates the back pressure needed for correct fuel scavenging. A leaking exhaust gasket disrupts this pressure balance causing lean running conditions that lead to overheating and piston damage. On personal watercraft the exhaust system is water cooled and a failed gasket can also allow water intrusion into the exhaust port causing hydro lock and catastrophic engine failure. Always inspect exhaust gaskets during routine maintenance and replace if cracked compressed or damaged. Clean both mating surfaces before installing the new gasket and torque fasteners to factory specification.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $37.40
Sale: $21.37
Save: 43%
Save: $16.03
Qty:
Free Shipping!

Description

Applications:

Kawasaki 550 Exhaust Gasket Fitment:

1986-1989 Kawasaki Jet Ski JS 550
1990-1995 Kawasaki Jet Ski SX 550

Verify your part number before purchasing to confirm fitment.
