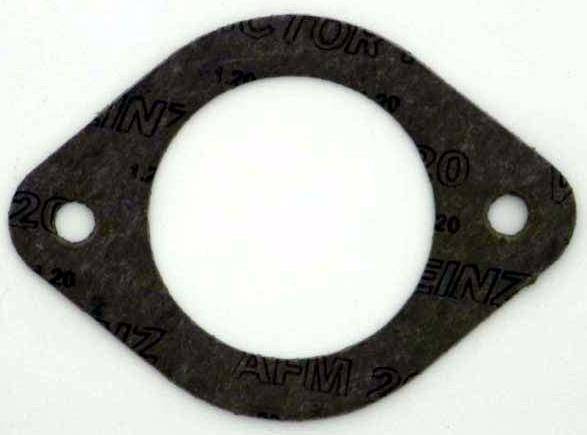

Carburetor Gasket Replacement Compatible With 1987-1990 Kawasaki Jet Ski Sx 650 1986-1990 X2 650

007-525*1
/ Reference Part Numbers:

Kawasaki 11009-3747
110093747

Specifications:

Type: Carburetor Gasket
Engine: 635cc 2-Stroke Twin Cylinder
Bore x Stroke: 76mm x 70mm / 52 HP
Compression: 7.2:1
Fuel: Single Keihin CDK
Intake: Reed Valve / CDI
Location: Carburetor to Intake

Applications:

Kawasaki Jet Ski SX 650 1987-1990, X2 650 1986-1990

Kawasaki SX 650 X2 650 Carburetor Gasket
Replacement carburetor gasket for the Kawasaki Jet Ski SX 650 and X2 650 personal watercraft equipped with the 635cc 2-stroke twin cylinder engine. This engine features a 76mm bore and 70mm stroke producing 52 horsepower with a single Keihin CDK carburetor CDI ignition reed valve induction oil injection and a 7.2 to 1 compression ratio. This gasket seals the connection between the carburetor and the intake manifold preventing air leaks. On 2-stroke engines any air leak at the carburetor gasket allows unmetered air into the crankcase bypassing the fuel metering system. This causes a lean fuel mixture leading to overheating detonation and piston damage. Even a minor carburetor gasket leak affects idle quality throttle response and overall engine performance. Always inspect the carburetor gasket when removing the carburetor for cleaning or rebuilding. Clean both mating surfaces before installing the new gasket and ensure the carburetor mounting bolts are torqued evenly to factory specification to prevent warping and air leaks.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $29.93
Sale: $17.10
Save: 43%
Save: $12.83
Qty:
Free Shipping!

Description

Applications:

Kawasaki 650 Carburetor Gasket Fitment:

1987-1990 Kawasaki Jet Ski SX 650
1986-1990 Kawasaki Jet Ski X2 650

Verify your part number before purchasing to confirm fitment.

Details

Shipping Information

  • Item Requires Shipping
  • 0.0 lbs.
  • W3.0000” x H0.2500” x L4.5000”
  • Free Shipping!
