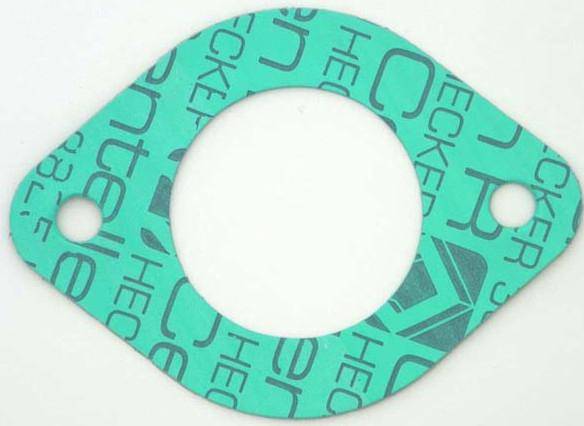

Carburetor Gasket Replacement Compatible With 1987-1990 Kawasaki Jet Ski Sx 650 1989-1990 Ts 650

007-498-01*1
/ Reference Part Numbers:

Kawasaki 11009-3747
110093747
Kawasaki 11009-3721
110093721

Specifications:

Type: Carburetor Gasket
Engine: 635cc 2-Stroke Twin Cylinder
Bore x Stroke: 76mm x 70mm / 52 HP
Compression: 7.2:1
Fuel: Single Keihin CDK Carburetor
Ignition: CDI / Oil Injection
Quantity: 1 Gasket

Applications:

Kawasaki Jet Ski SX 650 1987-1990, TS 650 1989-1990, X2 650 1989-1990

Kawasaki SX TS X2 650 Carburetor Gasket
Replacement carburetor gasket for Kawasaki Jet Ski SX 650 TS 650 and X2 650 personal watercraft equipped with the 635cc 2-stroke twin cylinder engine. This engine features a 76mm bore and 70mm stroke producing 52 horsepower with a 7.2 to 1 compression ratio. The engine uses a single Keihin CDK carburetor CDI ignition oil injection and open loop water cooling. The carburetor gasket seals the base of the carburetor to the intake manifold preventing air leaks that would lean out the fuel mixture. On 2-stroke engines the crankcase serves as part of the induction system so any air leak at the carburetor base directly affects the fuel air ratio being delivered to the cylinders. A failed carburetor gasket causes lean running conditions leading to overheating piston seizure and engine damage. Signs of a leaking carburetor gasket include rough idle high RPM at idle loss of power and overheating. Replace the carburetor gasket any time the carburetor is removed for service or cleaning. Clean both mating surfaces before installation. One gasket per package.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $30.17
Sale: $17.24
Save: 43%
Save: $12.93
Qty:
Free Shipping!

Description

Applications:

Kawasaki SX TS X2 650 Carburetor Gasket Fitment:

1987-1990 Kawasaki Jet Ski SX 650
1989-1990 Kawasaki Jet Ski TS 650
1989-1990 Kawasaki Jet Ski X2 650

Verify your part number before purchasing to confirm fitment.

Details

Shipping Information

  • Item Requires Shipping
  • 0.0 lbs.
  • W3.0000” x H0.2500” x L4.7500”
  • Free Shipping!
