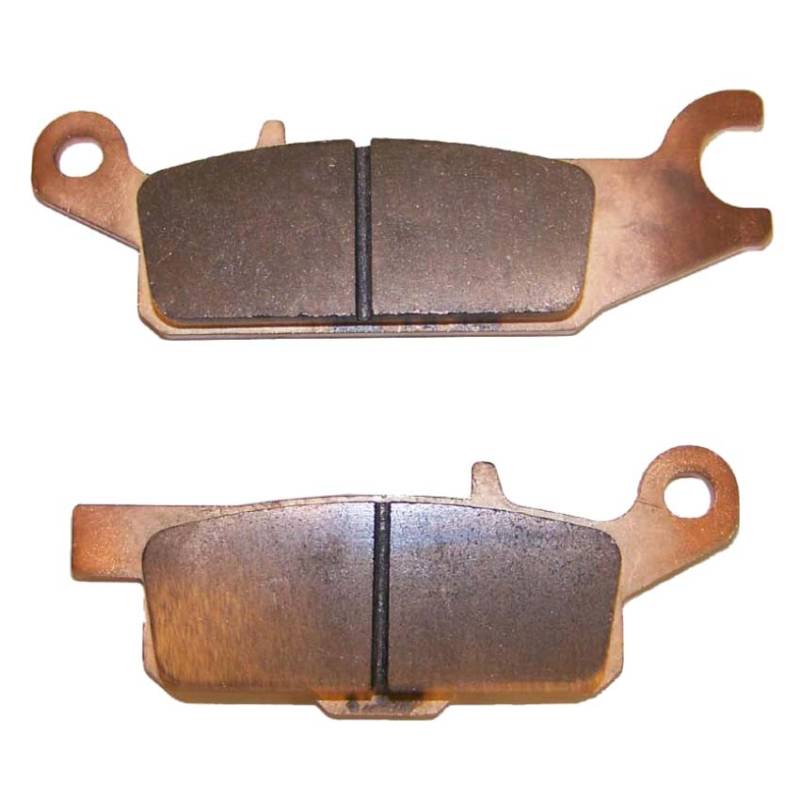

Manufacturer Part Number:
09-5186JL
Cross-Reference OEM Part Numbers:
Yamaha: 1S3-W0045-00-00
Yamaha: 1S3-W0045-10-00
Yamaha: 4D3-W0045-10-00
Notes:
• Position: Front — LEFT side only
• Front RIGHT side pads sold separately as 09-5184JL
• The Raptor 700 is Yamaha's flagship sport ATV — 686cc liquid-cooled single
• Always replace both left and right front pads at the same time
Specifications:
• Type: Semi-metallic brake pad compound
• Design: Direct OEM replacement — drop-in fit with no modifications
• Material: High-temperature semi-metallic friction compound with steel backing plate
• Break-In: Mild break-in period recommended for optimal performance
Features:
• Engineered for consistent stopping power across varying temperatures
• Steel backing plate provides structural rigidity and heat dissipation
• Chamfered edges reduce brake squeal and vibration
• Designed for both on-road and off-road riding conditions
When to Replace:
• When pad material thickness reaches 1mm or less
• When braking performance noticeably decreases
• When brake squeal persists after cleaning and inspection
• When pad surface is glazed, cracked, or contaminated with oil/fluid
Installation Notes:
• Clean caliper bracket and slide pins before installing new pads
• Inspect brake rotor for minimum thickness and warpage
• Push caliper piston back carefully before fitting new pads
• Bed in new pads with gradual stops — avoid hard braking for first 50 miles
• Check brake fluid level after installation — piston retraction may raise fluid level
