OEM PART NUMBERS:
• Isuzu: 8941702050, 8941702051, 8970489660, 8970489662, 897048-9661, 897048-966-3
• Denso: 128000-1100, 228000-1130, 228000-1131, 228000-1132, 228000-1133
SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW / 1.88HP
• Type: OSGR
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.9mm / 1.256"
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Studs: M8-1.25 Threaded
• Motor Studs: M8-1.25 Threaded
• Weight: 10.4 lbs / 4.73 kg
• Condition: New
APPLICATION:
• FD10 / FD14 / FD15 / FD18 Lift Trucks — Isuzu 4FE1
• FD9 / FD20L-10 / FD25L-10 Lift Trucks — Isuzu 4FE1
• 12V 1.4kW OSGR, 9-tooth, CW rotation
• Dual 13.5mm unthreaded mounting ears

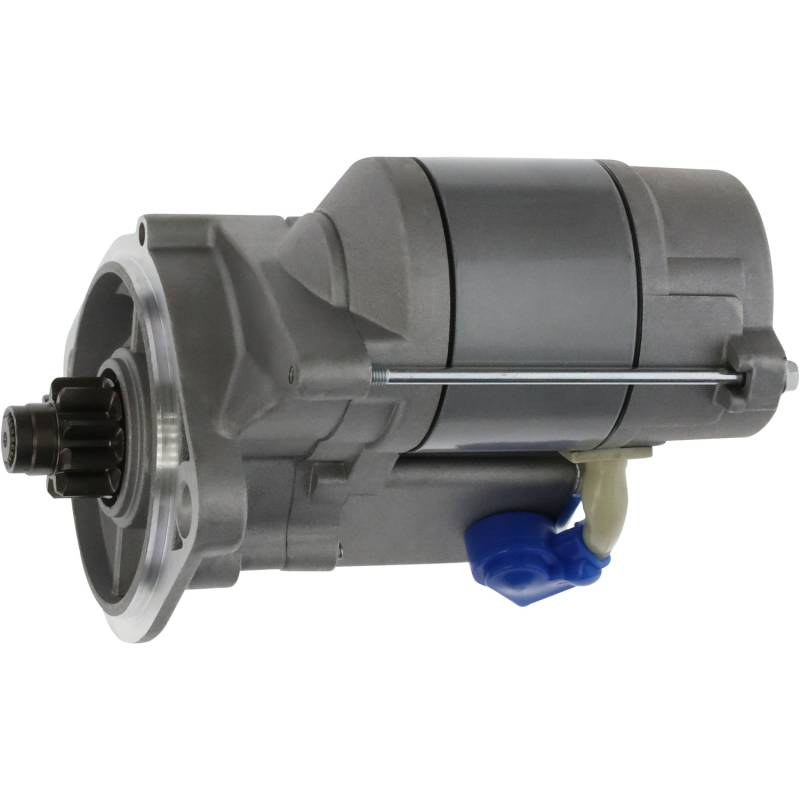

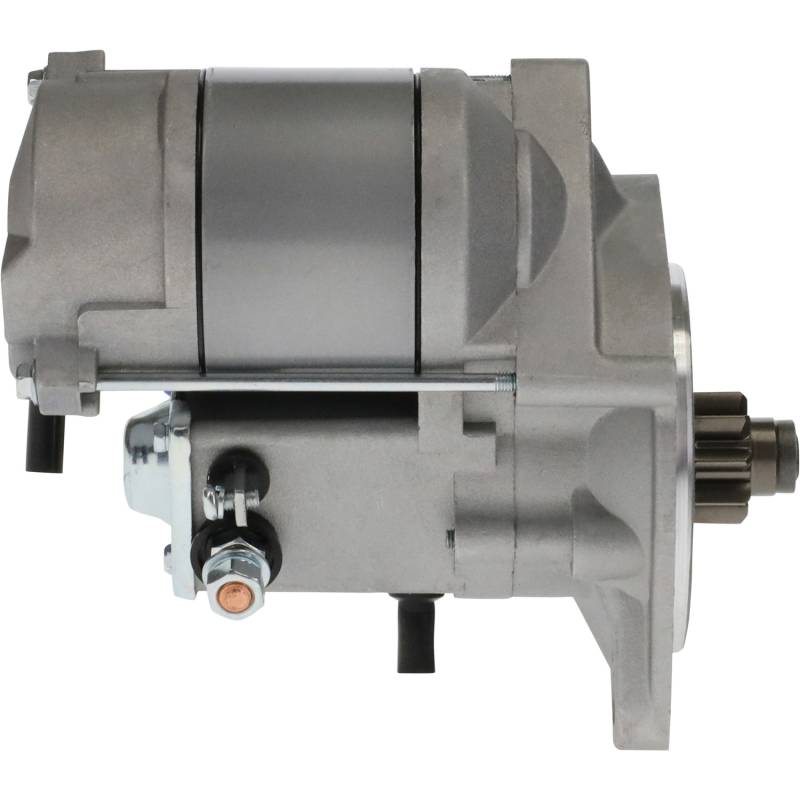

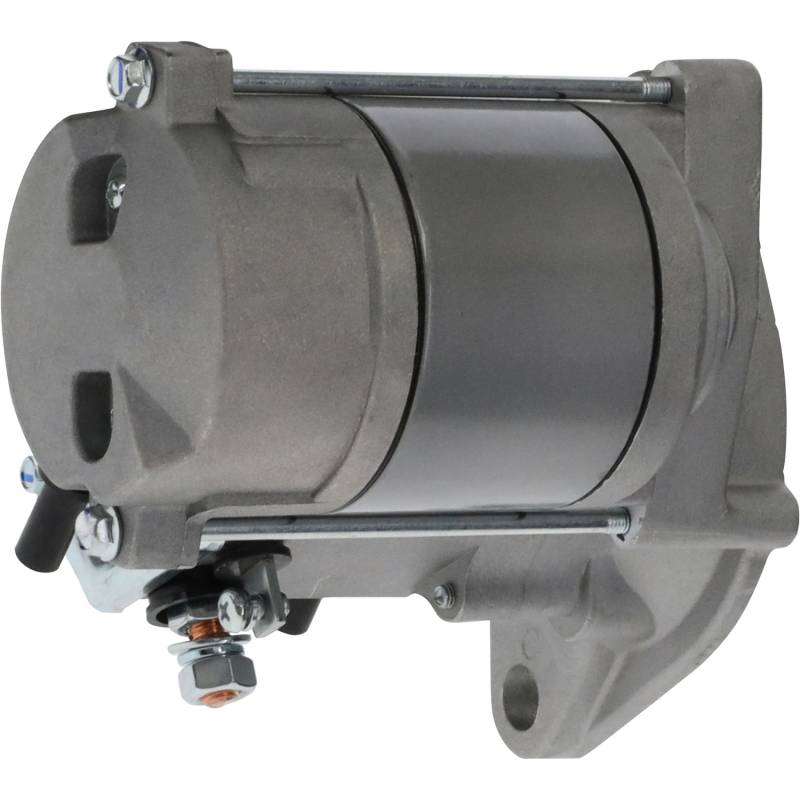

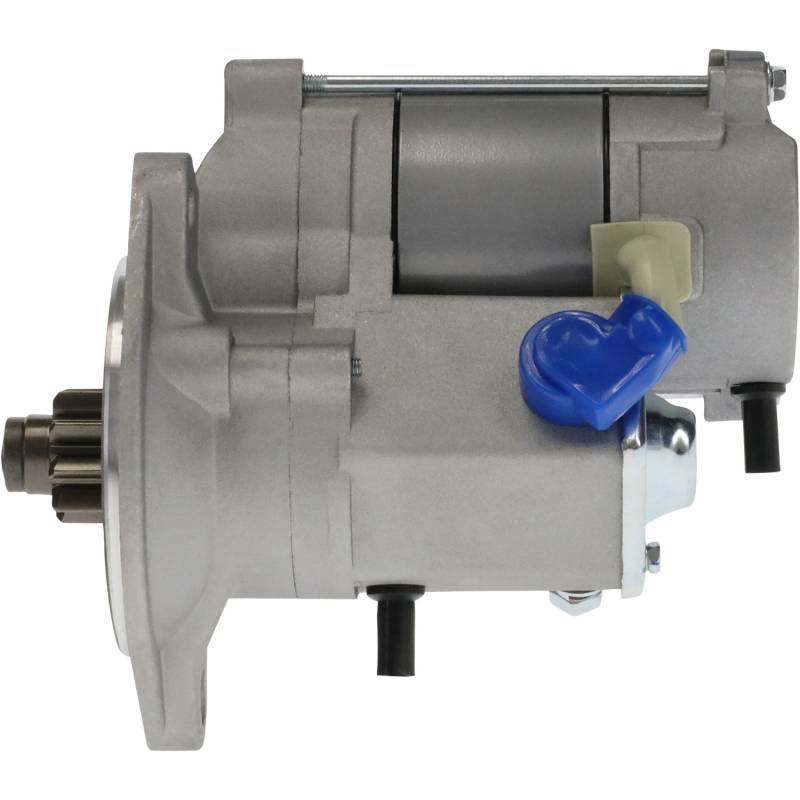

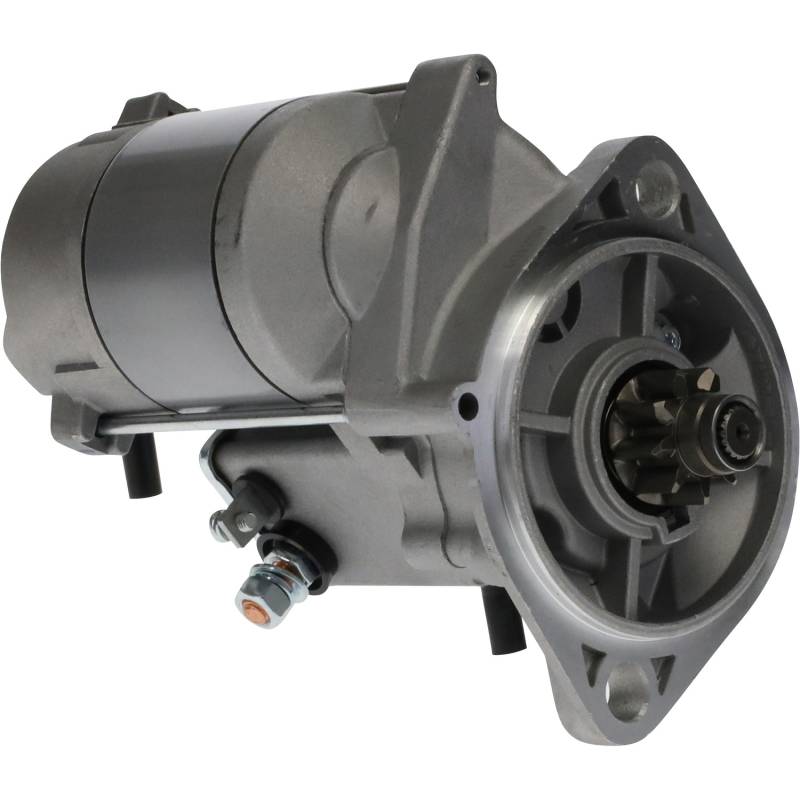

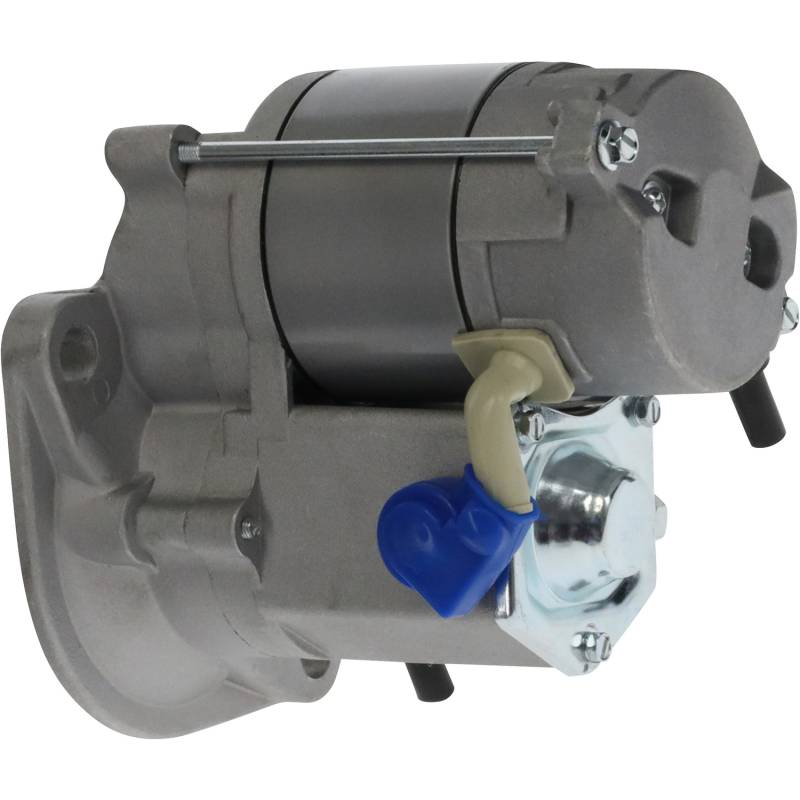

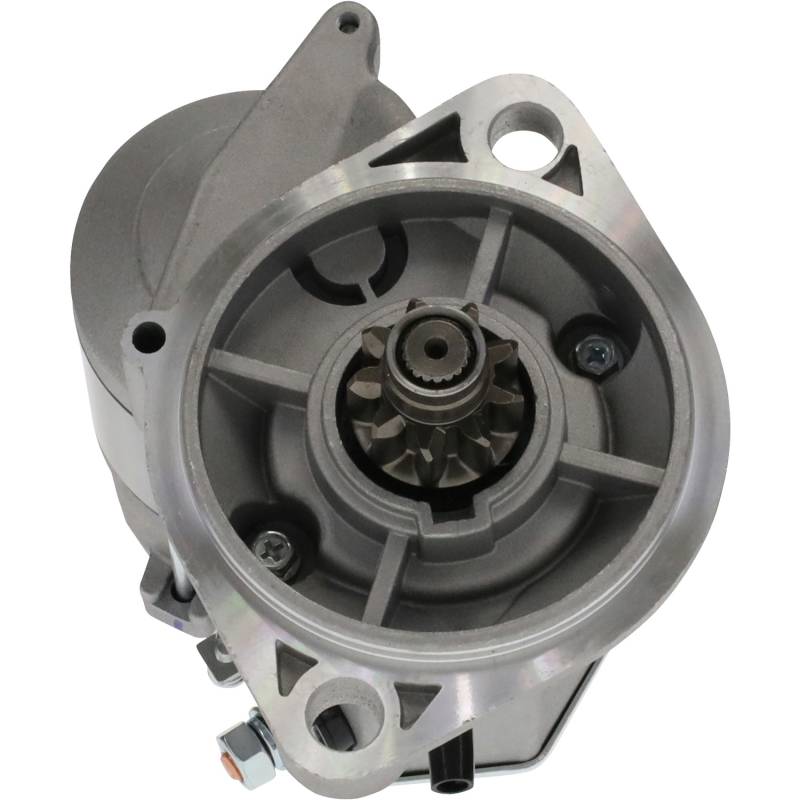

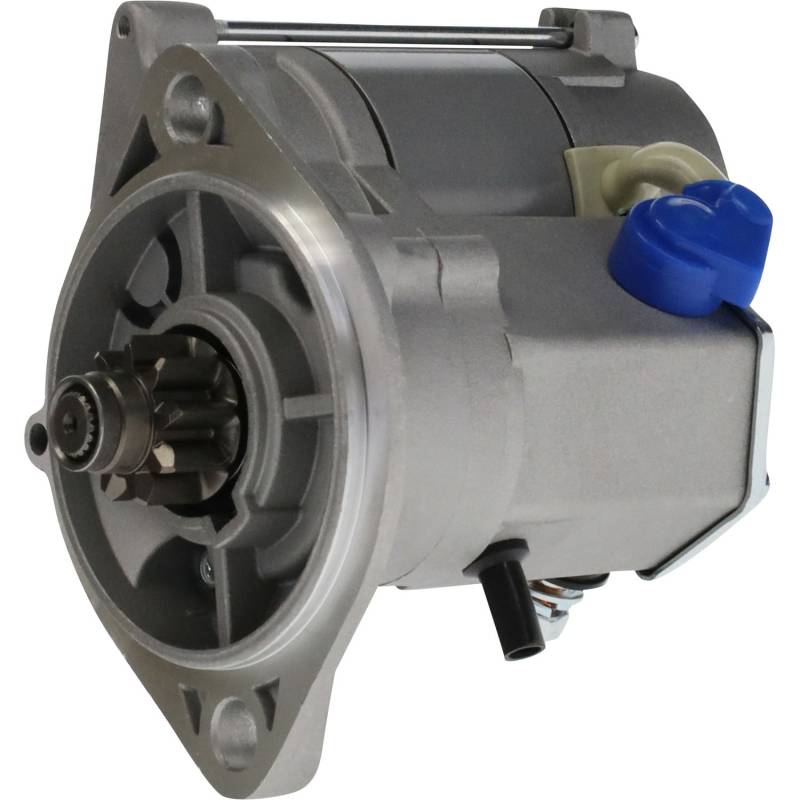

12V Starter Motor — FD10/FD14/FD15/FD18 Lift Trucks
12 volt 1.4kW starter motor for FD10, FD14, FD15, and FD18 lift trucks with Isuzu 4FE1 engine. Denso OSGR design with 9-tooth drive pinion, clockwise rotation. Dual 13.5mm unthreaded mounting ears with M8-1.25 battery and motor studs. 31.9mm gear OD. Direct replacement for Denso 128000-1100, 228000-1130 and Isuzu 8941702050, 8941702051, 8970489660.
