OEM PART NUMBERS:
• Isuzu: 8941702050, 8941702051, 8970489660, 8970489662, 897048-9661, 897048-966-3
• Denso: 128000-1100, 228000-1130, 228000-1131, 228000-1132, 228000-1133
SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW / 1.88HP
• Type: OSGR
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.9mm / 1.256"
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Studs: M8-1.25 Threaded
• Motor Studs: M8-1.25 Threaded
• Weight: 10.4 lbs / 4.73 kg
• Condition: New
APPLICATION:
• FD9Z / FD10Z / FD14Z / FD15Z Lift Trucks — Isuzu 4FE1
• FD18Z / FD20Z / FD23Z / FD25Z Lift Trucks — Isuzu 4FE1
• 12V 1.4kW OSGR, 9-tooth, CW rotation
• 31.9mm gear OD, M8-1.25 studs

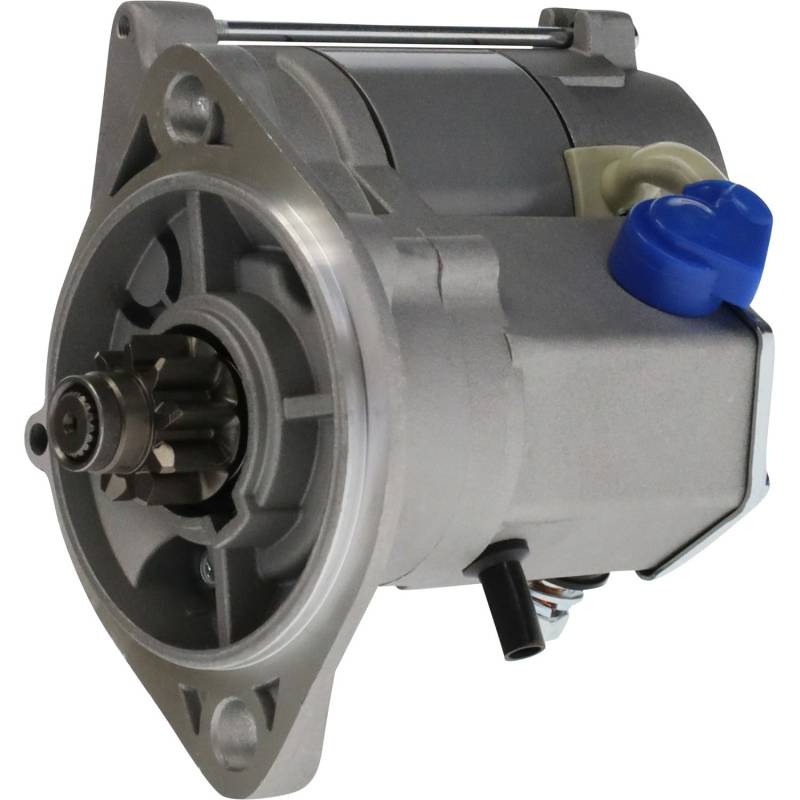

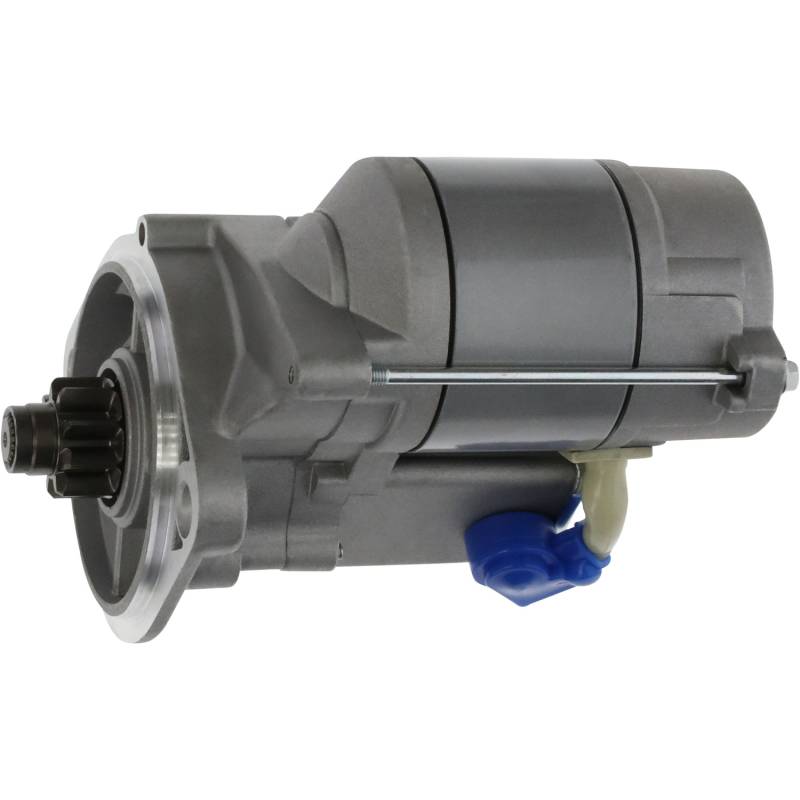

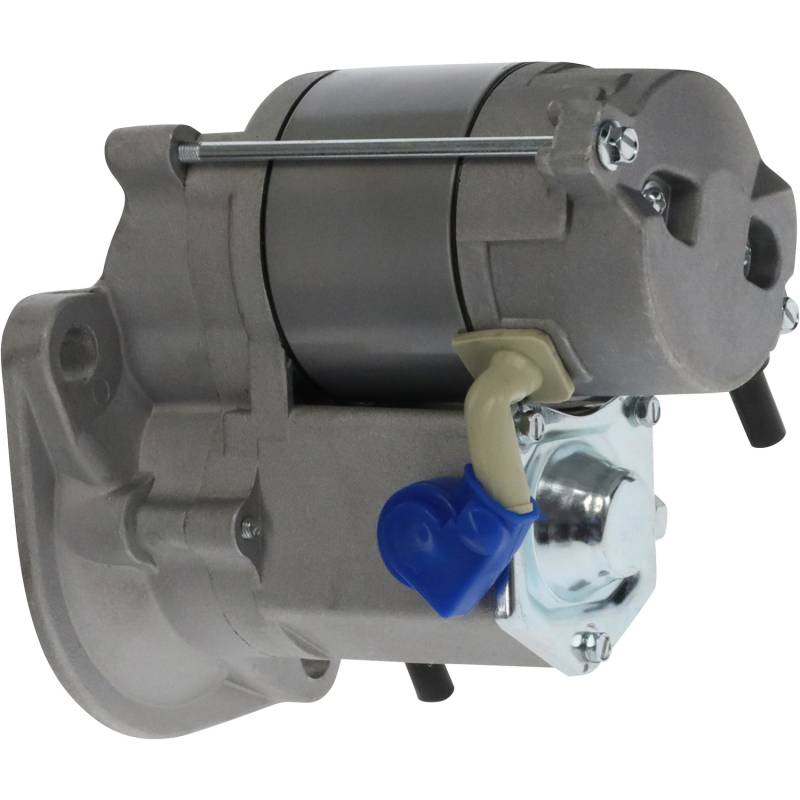

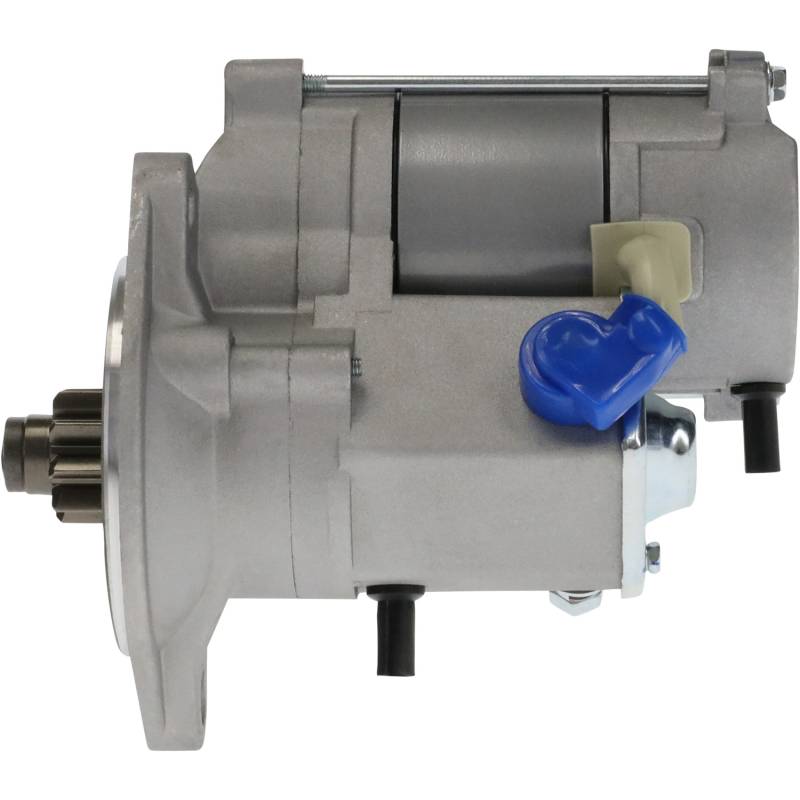

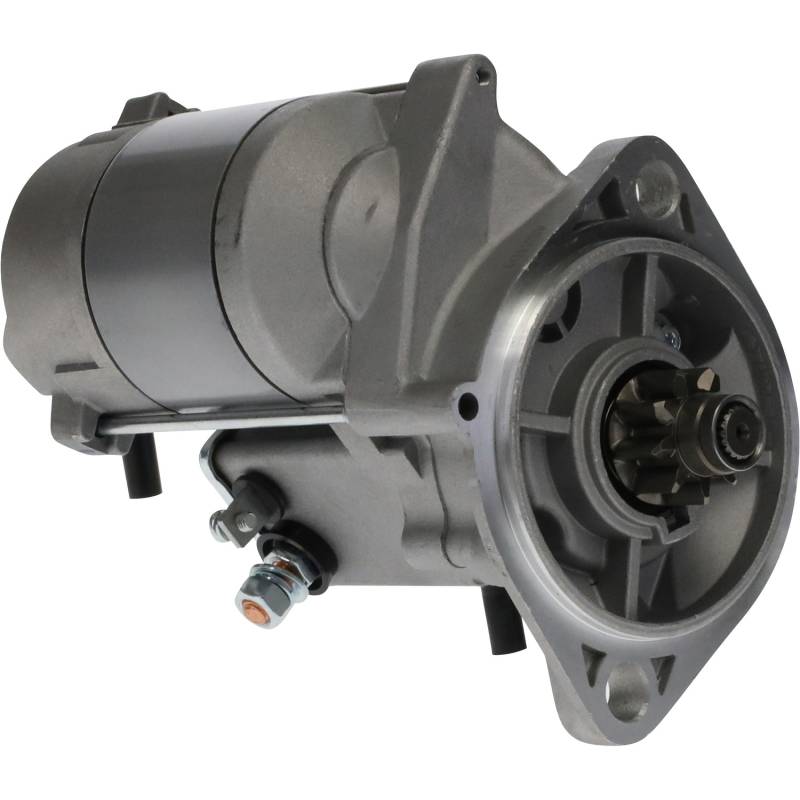

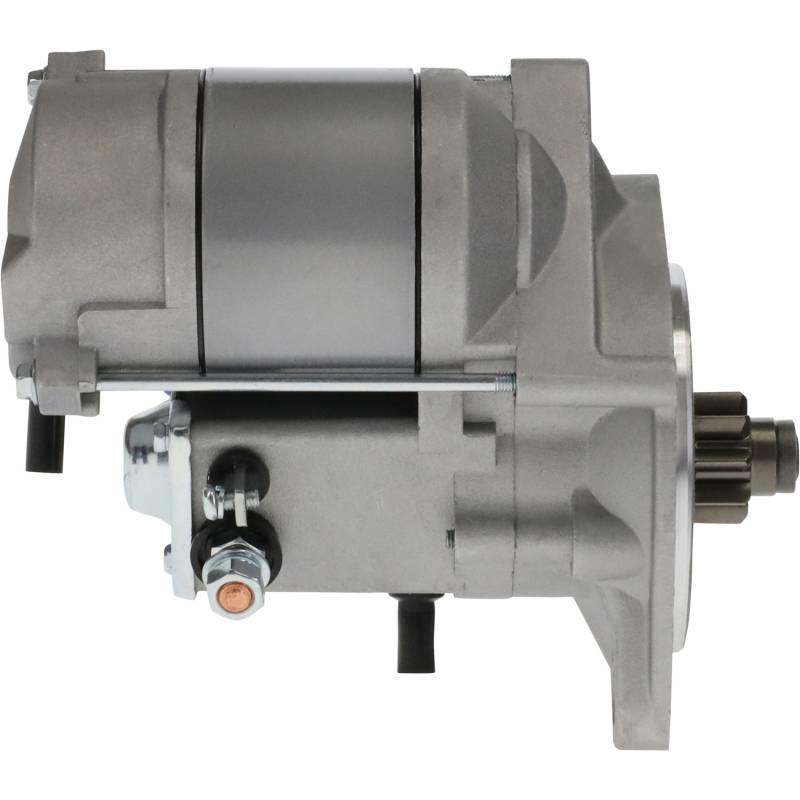

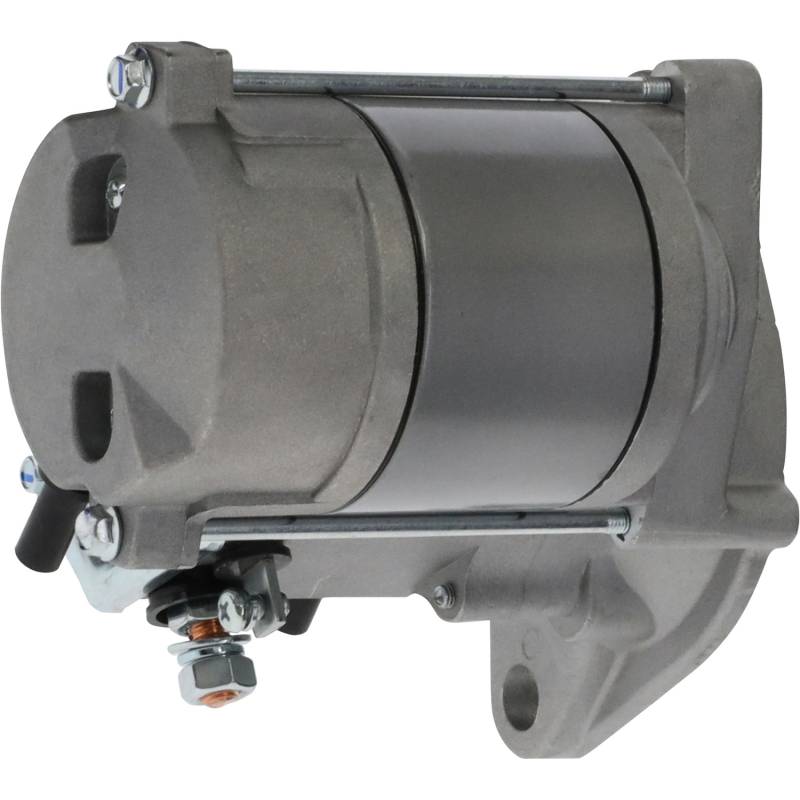

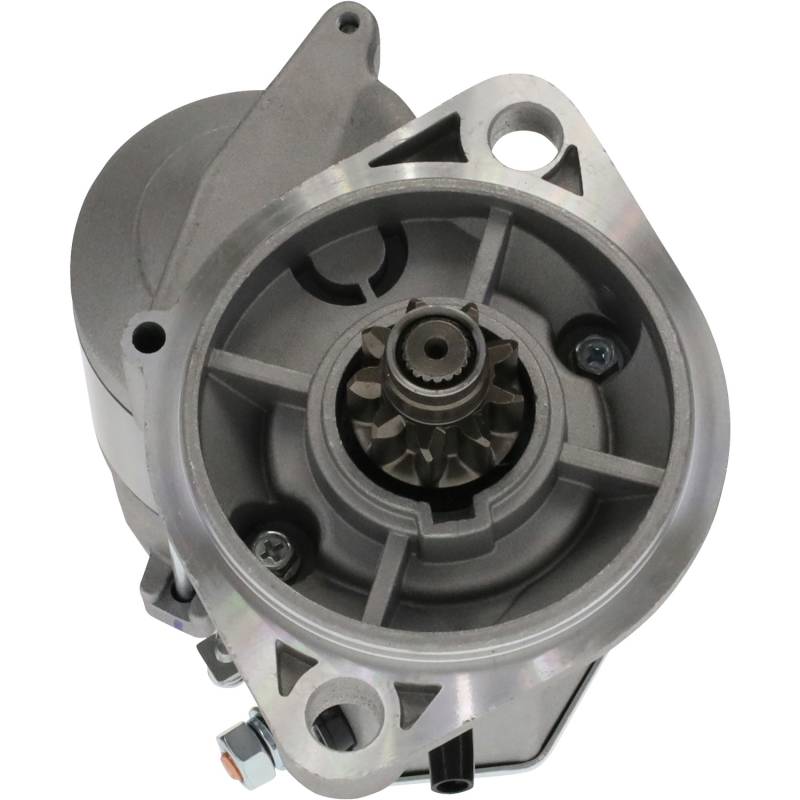

12V Starter Motor — FD10Z/FD14Z/FD18Z/FD20Z/FD25Z Lift Trucks
12 volt 1.4kW starter motor for FD9Z, FD10Z, FD14Z, FD15Z, FD18Z, FD20Z, FD23Z, and FD25Z lift trucks with Isuzu 4FE1 engine. Denso OSGR design with 9-tooth drive pinion and clockwise rotation. Dual 13.5mm unthreaded mounting ears, M8-1.25 battery and motor studs. Direct replacement for Denso 228000-1131, 228000-1132, 128000-1100 and Isuzu 8941702051, 8970489662.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
