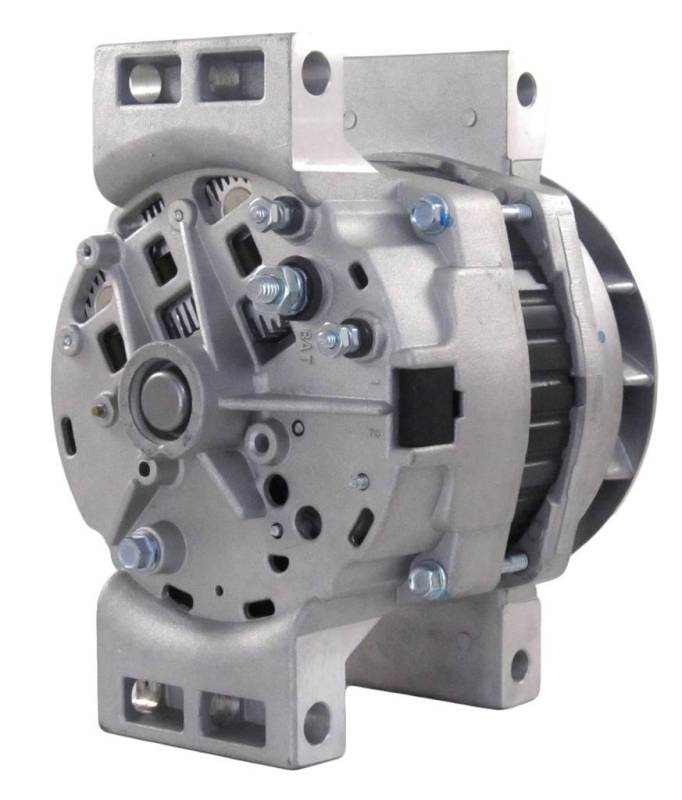

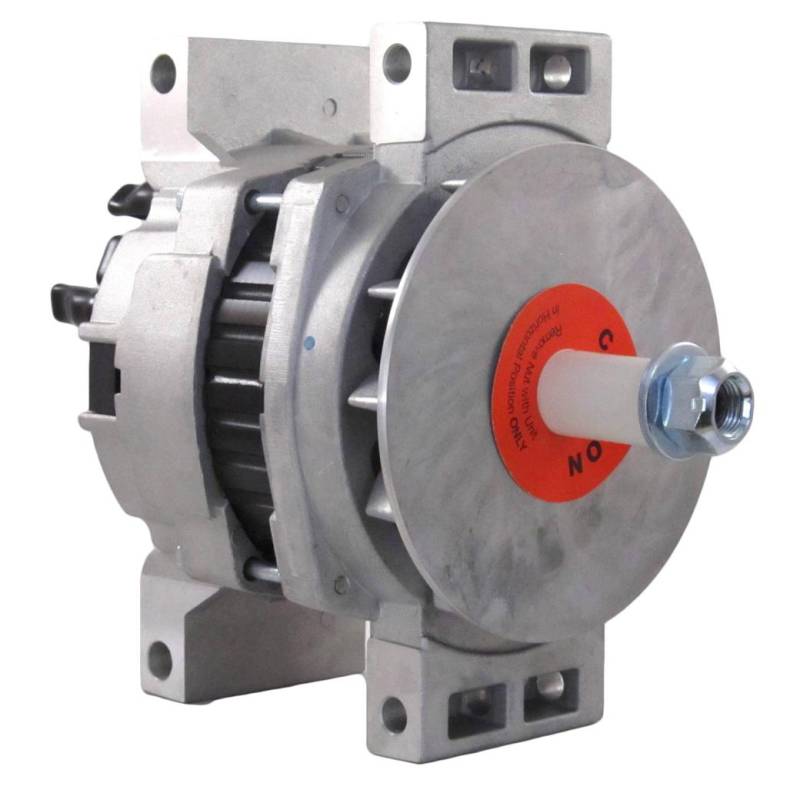

New Alternator Compatible With Peterbilt 330 335 340 357 359 378 379 By Engine 10459341 19020387

(0) Reviews: Write first review
8362B4
DELCO PART NUMBERS:
• 19020389
• 10459341
• 19020803
• 19020387
• 10459595
• 19020388

WILSON PART NUMBERS:
• 90-01-4393, 90014393
• 90-01-4393N, 90014393N

SPECIFICATIONS:
• Type: 22SI type alternator
• Voltage: 12 volt
• Output: 145 amp
• Mount: quad pad (10.7 mm / 12.5 mm unthreaded ears)
• Fan: external
• Regulator: internal, clock 3:00
• B+ terminal: 5/16 inch, 18 thread
• Ground: negative
• Pulley: not included
• Weight: 16.78 lb / 7.63 kg
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $387.91
Sale: $221.66
Save: 43%
Save: $166.25
Qty:
Free Shipping!

Description

KENWORTH APPLICATIONS:
• Kenworth C500 with the Caterpillar C-11 2005-2007
• Kenworth C500 with the Caterpillar C-13 2005-2007
• Kenworth C500 with the Caterpillar C-15 2000-2007
• Kenworth C500 with the Caterpillar C-16 2002-2003
• Kenworth C500 with the Cummins ISM 2001-2007
• Kenworth C500 with the Cummins ISX 2000-2007
• Kenworth T2000 with the Caterpillar C-13 2004-2007
• Kenworth T2000 with the Caterpillar C-15 2001-2007
• Kenworth T2000 with the Cummins ISX 2001-2007
• Kenworth T300 with the Caterpillar C-7 2004-2007
• Kenworth T300 with the Cummins 5.9L ISB 2004-2007
• Kenworth T300 with the Cummins 8.3L ISC 2003-2007
• Kenworth T300 with the PACCAR PX-6 2007
• Kenworth T300 with the PACCAR PX-8 2007
• Kenworth T600 and T800 with the Caterpillar C-11 2005-2007
• Kenworth T600 and T800 with the Caterpillar C-13 2004-2007
• Kenworth T600 and T800 with the Caterpillar C-15 2001-2007
• Kenworth T600 and T800 with the Caterpillar C-16 2002-2003
• Kenworth T600 and T800 with the Cummins 8.3L ISC 2003-2007
• Kenworth T600 and T800 with the Cummins 8.9L ISL 2002-2007
• Kenworth T600 and T800 with the Cummins ISM 2003-2007
• Kenworth T600 and T800 with the Cummins ISX 2003-2007
• Kenworth W900 with the Caterpillar C-13 2004-2007
• Kenworth W900 with the Caterpillar C-15 2001-2007
• Kenworth W900 with the Caterpillar C-16 2000-2003
• Kenworth W900 with the Cummins 8.9L ISL 2002-2003
• Kenworth W900 with the Cummins ISM 2003-2004
• Kenworth W900 with the Cummins ISX 2001-2007

MACK APPLICATIONS:
• Mack CH Series with Mack engines 1999-2007
• Mack CL Series with the Cummins ISX 2001-2007
• Mack CL Series with Mack engines 1999-2007
• Mack CT / CTP Series with Mack engines 2006-2007
• Mack CV Series with Mack engines 2001-2007
• Mack CX Series (Vision) with Mack engines 2000-2005
• Mack DM / DMM Series with Mack engines 1999-2007
• Mack FDM Series with Mack engines 1999
• Mack Granite Series with Mack engines 2002-2007
• Mack MR Series with Mack engines 1999-2007
• Mack RB Series with Mack engines 1999-2007
• Mack RD Series with Mack engines 1999-2007

PETERBILT APPLICATIONS:
• Peterbilt 330 with the Caterpillar C-7 2004-2007
• Peterbilt 330 with the Cummins 8.3L ISC 2003-2007
• Peterbilt 335 with the Caterpillar C-7 2005-2007
• Peterbilt 335 with the Cummins 8.3L ISC 2005-2007
• Peterbilt 335 with the PACCAR PX-8 2007
• Peterbilt 340 with the Caterpillar C-7 2006-2007
• Peterbilt 340 with the Cummins 8.3L ISC 2006-2007
• Peterbilt 357 with the Caterpillar C-11 2005-2007
• Peterbilt 357 with the Caterpillar C-13 2004-2007
• Peterbilt 357 with the Caterpillar C-15 2001-2007
• Peterbilt 357 with the Cummins ISM 2001-2007
• Peterbilt 357 with the Cummins ISX 2001-2007
• Peterbilt 359 with the Caterpillar C-15 2001-2007
• Peterbilt 378 with the Caterpillar C-11 2005-2007
• Peterbilt 378 with the Caterpillar C-13 2004-2007
• Peterbilt 378 with the Caterpillar C-15 2001-2007
• Peterbilt 378 with the Cummins ISM 2001-2007
• Peterbilt 378 with the Cummins ISX 2001-2007
• Peterbilt 379 with the Caterpillar C-13 2004-2007
• Peterbilt 379 with the Caterpillar C-15 2001-2007
• Peterbilt 379 with the Caterpillar C-16 2000-2003
• Peterbilt 379 with the Cummins ISM 2001-2007
• Peterbilt 379 with the Cummins ISX 2001-2007
• Peterbilt 385 with the Caterpillar C-11 2005-2007
• Peterbilt 385 with the Caterpillar C-13 2004-2007
• Peterbilt 385 with the Caterpillar C-15 2001-2007
• Peterbilt 385 with the Cummins ISM 2001-2007
• Peterbilt 386 with the Caterpillar C-13 2006-2007
• Peterbilt 386 with the Caterpillar C-15 2006-2007
• Peterbilt 386 with the Cummins ISX 2006-2007
• Peterbilt 387 with the Caterpillar C-13 2004-2007
• Peterbilt 387 with the Caterpillar C-15 2000-2007
• Peterbilt 387 with the Cummins ISM 2000-2007
• Peterbilt 387 with the Cummins ISX 2000-2007
• Peterbilt 389 with the Caterpillar C-15 2004-2007
• Peterbilt 389 with the Cummins ISX 2004-2007

SPECIFICATIONS:
• Voltage: 12 volt
• Output: 145 amp
• Type: 22SI type, internal regulator, external fan
• Mount: quad pad, ears 10.7 mm and 12.5 mm unthreaded
• Regulator clock: 3:00
• B+ terminal: 5/16-18 stud, negative ground
• Pulley: ships without pulley
• Weight: 16.78 lb / 7.63 kg
• Pad mount 22SI only: J-180 hinge mount 22SI and internal fan 24SI units are different parts

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 18.6 lbs.
  • W10.0000” x H10.0000” x L10.0000”
  • Free Shipping!
