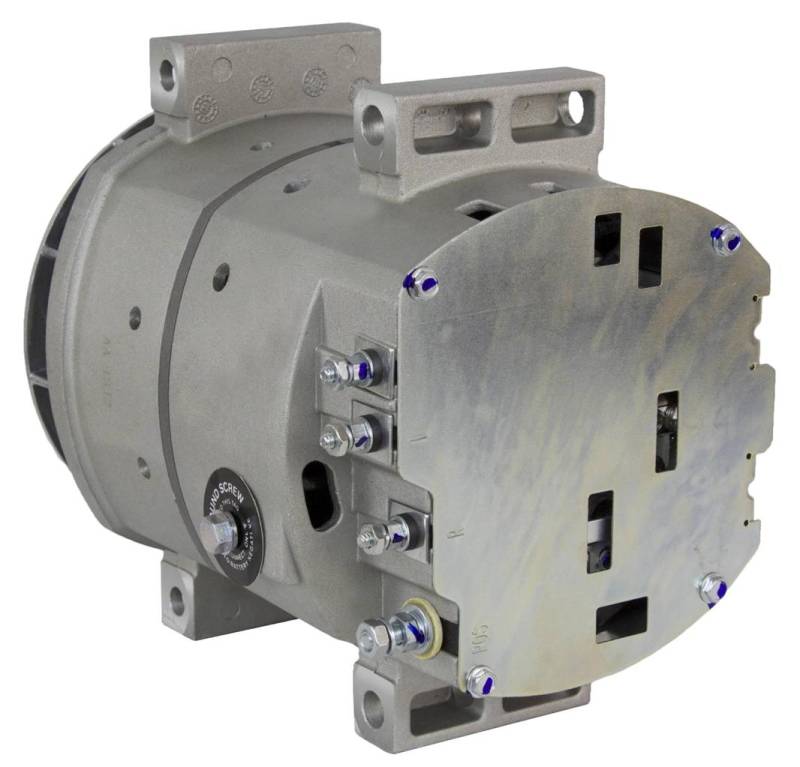

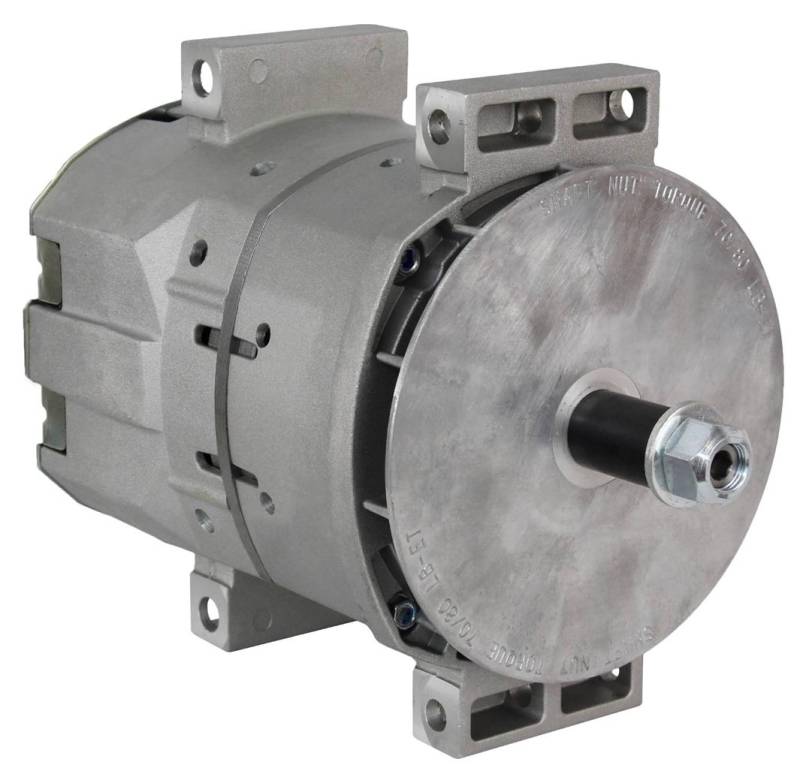

New Alternator Compatible With Peterbilt 330 335 340 357 359 378 379 By Engine 19011187 19011258

(0) Reviews: Write first review
8609B4
DELCO PART NUMBERS:
• 19011187
• 19011258
• 19011267
• 19011272
• 10459608
• 8700001
• 8700030
• 8600066
• 8700018
• 10459285
• 10459278
• 19011177
• 19011216
• 10459288
• 10459289
• 10459330
• 19011253
• 19011268
• 19011273
• 10459611
• 8700002
• 8700004
• 8700007
• 10459279
• 10459284
• 19011176
• 19011215
• 19011252

ACDELCO PART NUMBERS:
• 321-758, 321758
• 321-763, 321763
• 321-764, 321764

CUMMINS PART NUMBERS:
• 3675218RX
• 3099841
• 3675219
• 3675219RX

WILSON PART NUMBERS:
• 90-01-4329, 90014329

SPECIFICATIONS:
• Type: 34SI type brushless alternator
• Voltage: 12V
• Output: 135 amps
• Regulator: internal
• Fan: external
• Mounting: pad
• Pad span: 4.97 in (126.24 mm)
• B+ terminal: 1/4-28
• R terminal: #10
• I terminal: #10
• Remote sense: none
• Battery terminal clocking: 7:30
• Ground: negative
• Weight: 27.9 lb (12.68 kg)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $617.61
Sale: $352.92
Save: 43%
Save: $264.69
Qty:
Free Shipping!

Description

KENWORTH APPLICATIONS:
• Kenworth C500 with Caterpillar C-11 2005-2007, Caterpillar C-13 2005-2007, Caterpillar C-15 2000-2007, Caterpillar C-16 2002-2003, Cummins ISM 2001-2007, Cummins ISX 2000-2007
• Kenworth T300 with Caterpillar C-7 2004-2007, Cummins 5.9L ISB 2004-2007, Cummins 8.3L ISC 2003-2007, PACCAR PX-6 2007, PACCAR PX-8 2007
• Kenworth T600 with Caterpillar C-11 2005-2007, Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Caterpillar C-16 2002-2003, Cummins 8.3L ISC 2003-2007, Cummins 8.9L ISL 2002-2007, Cummins ISM 2003-2007, Cummins ISX 2003-2007
• Kenworth T800 with Caterpillar C-11 2005-2007, Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Caterpillar C-16 2002-2003, Cummins 8.3L ISC 2003-2007, Cummins 8.9L ISL 2002-2007, Cummins ISM 2003-2007, Cummins ISX 2003-2007
• Kenworth T2000 with Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Cummins ISX 2001-2007
• Kenworth W900 with Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Caterpillar C-16 2000-2003, Cummins 8.9L ISL 2002-2003, Cummins ISM 2003-2004, Cummins ISX 2001-2007

MACK APPLICATIONS:
• Mack CH with Mack engines 1999-2007
• Mack CL with Cummins ISX 2001-2007, Mack engines 1999-2007
• Mack CT with Mack engines 2006-2007
• Mack CTP with Mack engines 2006-2007
• Mack CV with Mack engines 2001-2007
• Mack CX Vision with Mack engines 2000-2005
• Mack DM with Mack engines 1999-2007
• Mack DMM with Mack engines 1999-2007
• Mack FDM with Mack engines 1999
• Mack Granite with Mack engines 2002-2007
• Mack MR with Mack engines 1999-2007
• Mack RB with Mack engines 1999-2007
• Mack RD with Mack engines 1999-2007

PETERBILT APPLICATIONS:
• Peterbilt 330 with Caterpillar C-7 2004-2007, Cummins 8.3L ISC 2003-2007
• Peterbilt 335 with Caterpillar C-7 2005-2007, Cummins 8.3L ISC 2005-2007, PACCAR PX-8 2007
• Peterbilt 340 with Caterpillar C-7 2006-2007, Cummins 8.3L ISC 2006-2007
• Peterbilt 357 with Caterpillar C-11 2005-2007, Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Cummins ISM 2001-2007, Cummins ISX 2001-2007
• Peterbilt 359 with Caterpillar C-15 2001-2007
• Peterbilt 378 with Caterpillar C-11 2005-2007, Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Cummins ISM 2001-2007, Cummins ISX 2001-2007
• Peterbilt 379 with Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Caterpillar C-16 2000-2003, Cummins ISM 2001-2007, Cummins ISX 2001-2007
• Peterbilt 385 with Caterpillar C-11 2005-2007, Caterpillar C-13 2004-2007, Caterpillar C-15 2001-2007, Cummins ISM 2001-2007
• Peterbilt 386 with Caterpillar C-13 2006-2007, Caterpillar C-15 2006-2007, Cummins ISX 2006-2007
• Peterbilt 387 with Caterpillar C-13 2004-2007, Caterpillar C-15 2000-2007, Cummins ISM 2000-2007, Cummins ISX 2000-2007
• Peterbilt 389 with Caterpillar C-15 2004-2007, Cummins ISX 2004-2007

SPECIFICATIONS:
• Voltage: 12V
• Output: 135 amps
• Type: 34SI type brushless, internally regulated, external fan
• Mounting: pad mount
• Pad span: 4.97 in (126.24 mm)
• B+ terminal: 1/4-28 stud
• R and I terminals: #10
• Remote sense terminal: none
• Battery terminal clocking: 7:30
• Ground: negative
• Weight: 27.9 lb (12.68 kg)
• Condition: New aftermarket
