OEM PART NUMBERS:
• OMC: 172588 / 0172588
• OMC: 173944 / 0173944
• EFT4003
• ESI4001 / ESI4001S
• ESZ4015 / ESZ4017
• 40-329 / 40329 / 40-329A / 40329A
AFTERMARKET CROSS REFERENCE:
• API Marine: PT102NM
• Arco Marine: 6228
SPECIFICATIONS:

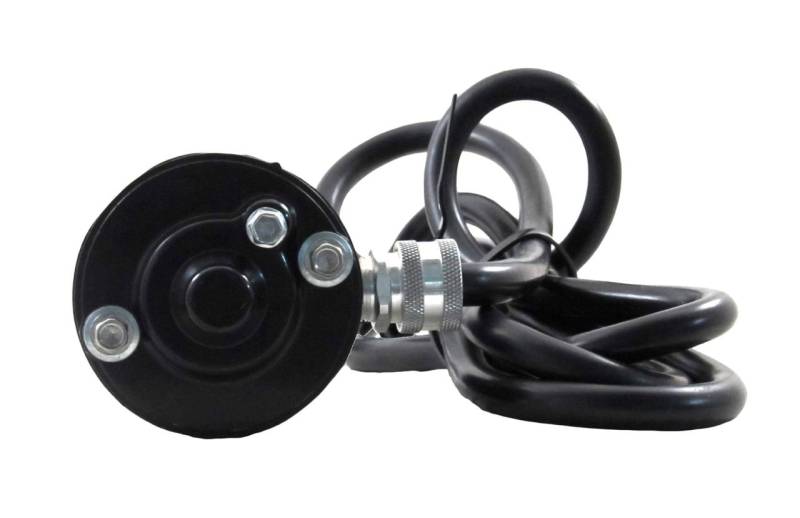

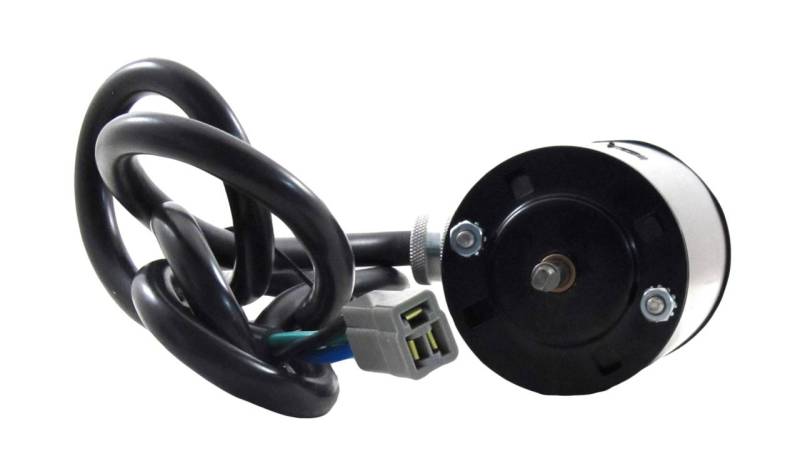

• Type: Tilt Trim Motor
• OEM Design: Ametek
• Voltage: 12V
• Rotation: Reversible
• Connection: 3-Wire w/Female Spade Terminals
• Mounting: 2-Bolt
• Shaft OD: 6.5mm / Tanged Shaft (3.8mm Drive Tang)
• Overall Length: 134.7mm / 5.303in
• Field Housing OD: 71.3mm / 2.807in
• Pump Compatibility: OMC #173946 Pump Assembly
• Includes: 3-1/2 Ft Wire Harness & Mounting Gasket
• Weight: 4 lbs
• Condition: New
JOHNSON / EVINRUDE OUTBOARD APPLICATIONS:
• 20/25/30/35/40HP 2-Stroke (1981-1997)
• 50/55/60/65HP 2-Stroke (1985-1997)
• 70/75HP 2-Stroke (1986-1999)
• All OMC Small Outboard Engines w/#173946 Pump
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
