OEM PART NUMBERS: • Suzuki: 38100-87J00-0EP / 3810087J000EP, 3810087J000EP, 38100-87J00-Y5T / 3810087J00Y5T, 3810087J00Y5T
• OMC: 5031482, 5036081
• Mercury: 8M6007547
• API Marine: PT655NM
• Protorque: PH200-T062 / PH200T062, PH200-T070 / PH200T070

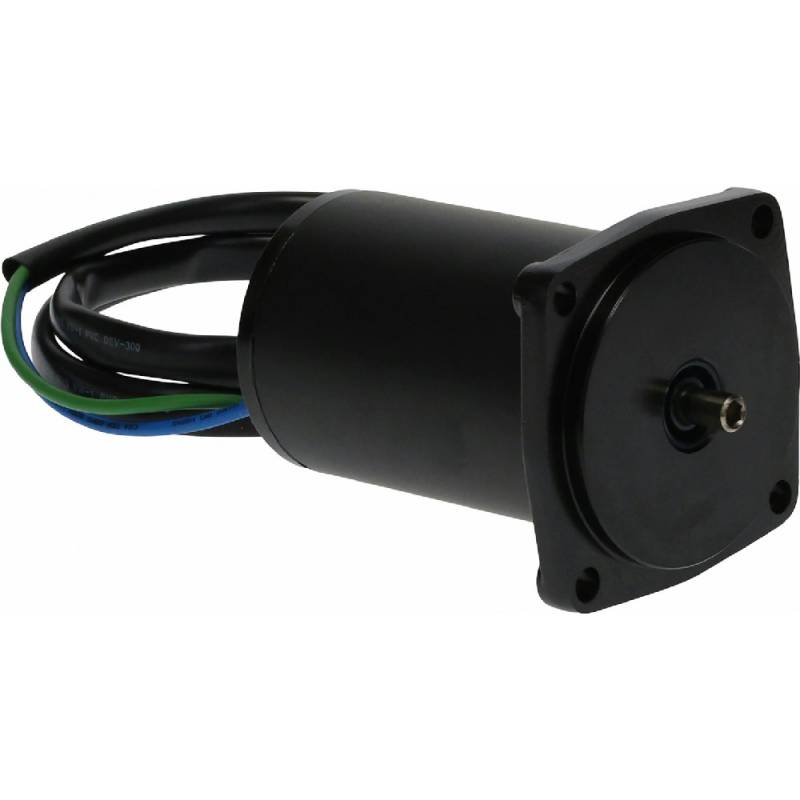

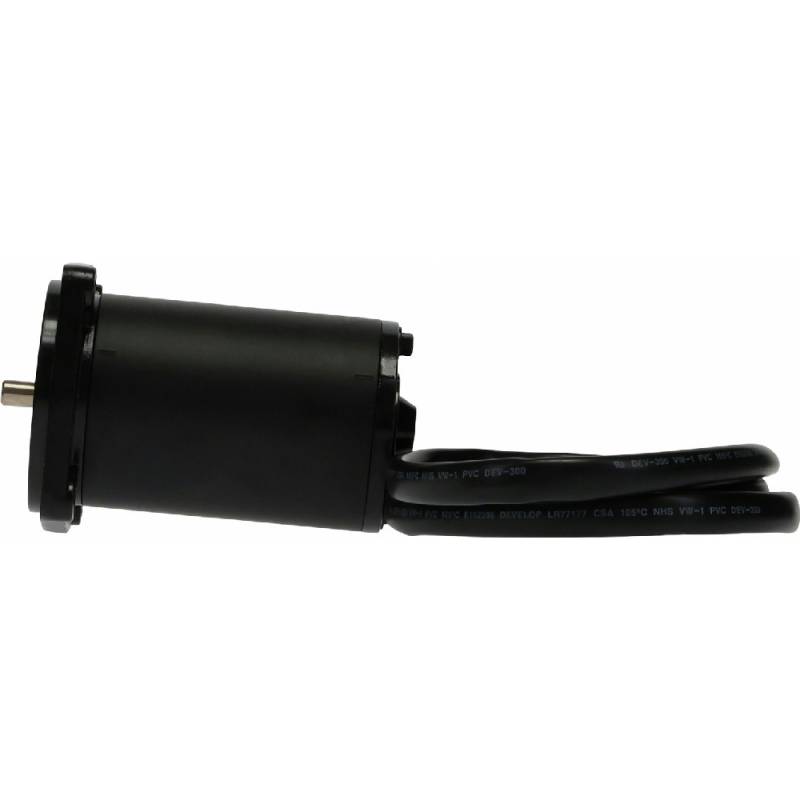

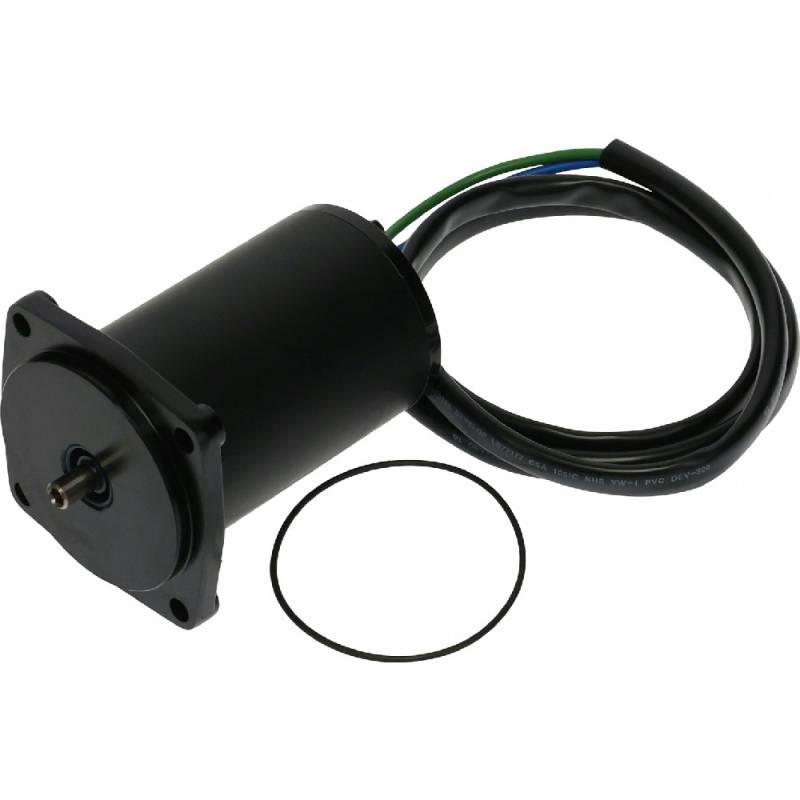

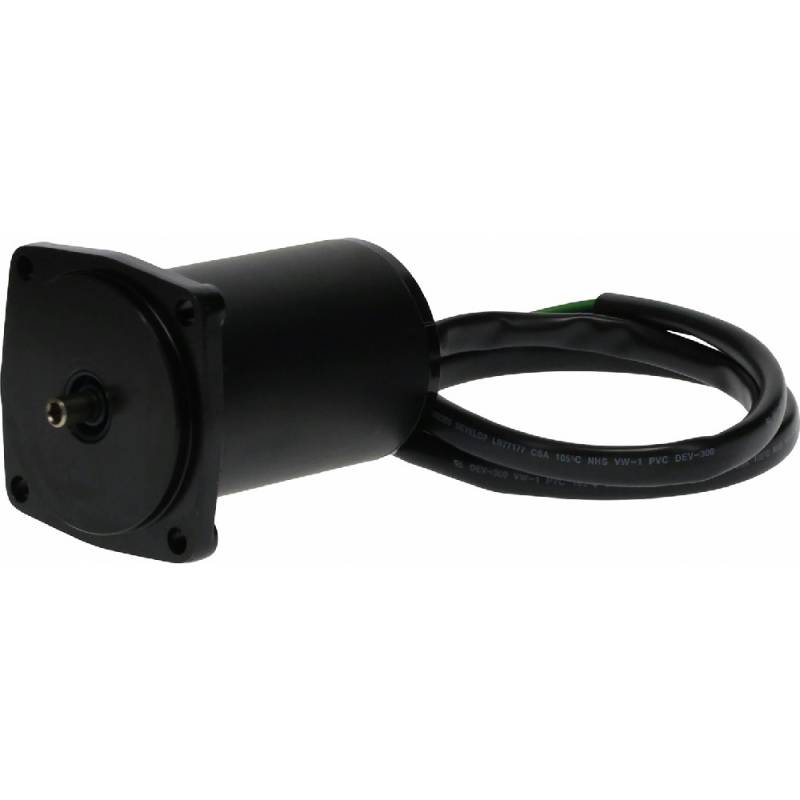

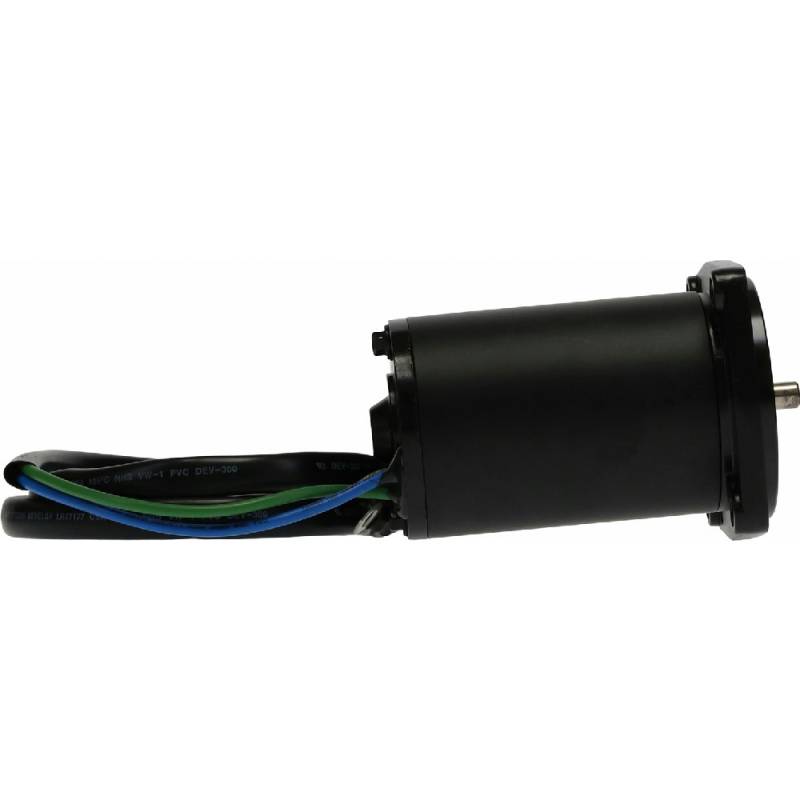

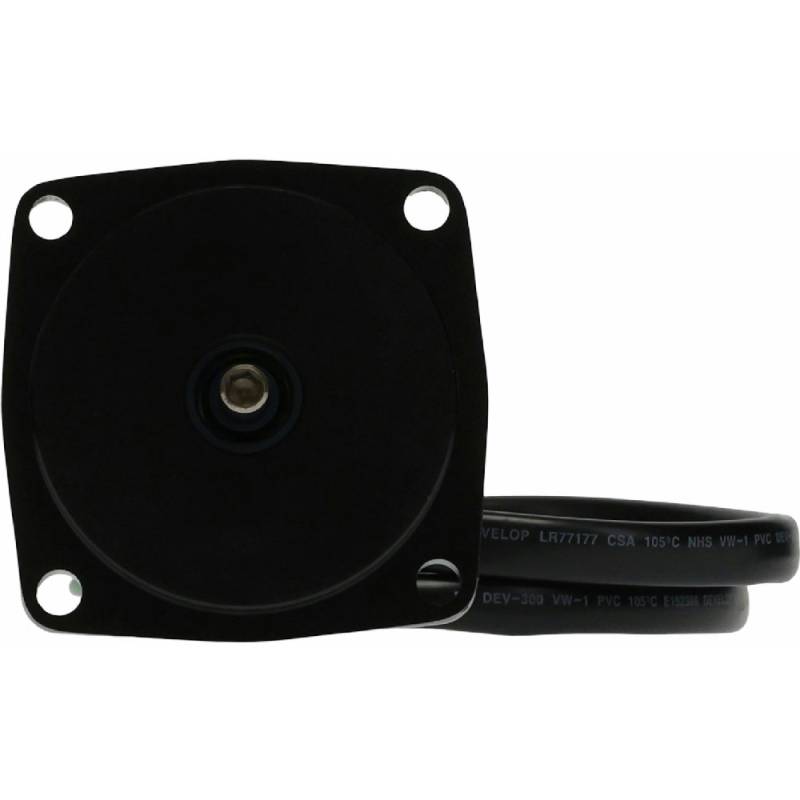

SPECIFICATIONS: • 12V / Reversible Bi-Rotational
• Type: Power Tilt and Trim Motor
• Shaft: Hollow Hex Female Socket
• Shaft OD: 0.311 in / 7.9mm
• Motor OD: 2.52 in / 64mm
• Overall Length: 4.953 in / 125.8mm
• Connection: 2 Wire with Ring Terminals
• Terminal Size: 6.2mm
• Mount: 4 Bolt Flange
• Drive: Female Hex Socket Onto the Pump Joint
• Condition: New
APPLICATIONS: • Suzuki DF40TL DF40TS and DF40QHL 40HP (1999-2000)
• Suzuki DF50TL and DF50QHL 50HP (1999-2000)
• Evinrude E40PL and E50PL four stroke (1999-2000)
• Johnson J40PL4 and J50PL4 four stroke (2005-2006)
• Johnson BJ40PL4 and BJ50PL4 four stroke (2005-2006)
• Suzuki built Johnson and Evinrude four stroke outboards
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
